Pneumatic Flange Ball Valve

Model

    Pressure:0-1.6Mpa Port size:DN15~DN200

Description

Pneumatic Flange Ball Valve

Basic parameters

Medium temperature:-20°C~ + 180°C

Ambient temperature: - 20°C~ + 60°C

Nominal pressure: 0~ 1.6 MPa

Air pressure: 0.3 ~ 0.8 MPa

Specification: DN15 - DN200

The valve body material: CF8 CF8M

Seat material:PTFE

Stem material: 304

Sealing ring material: NBR

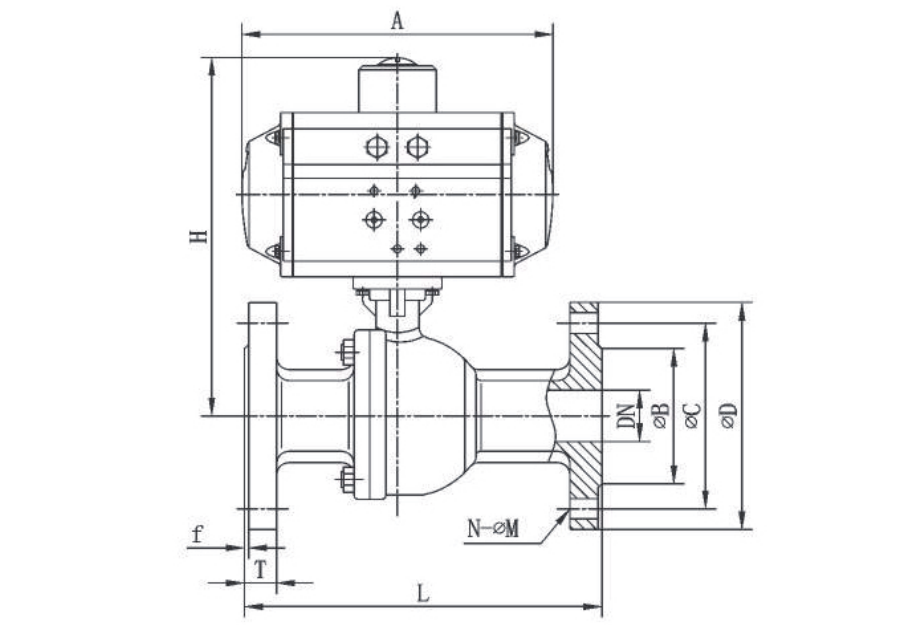

Drawing

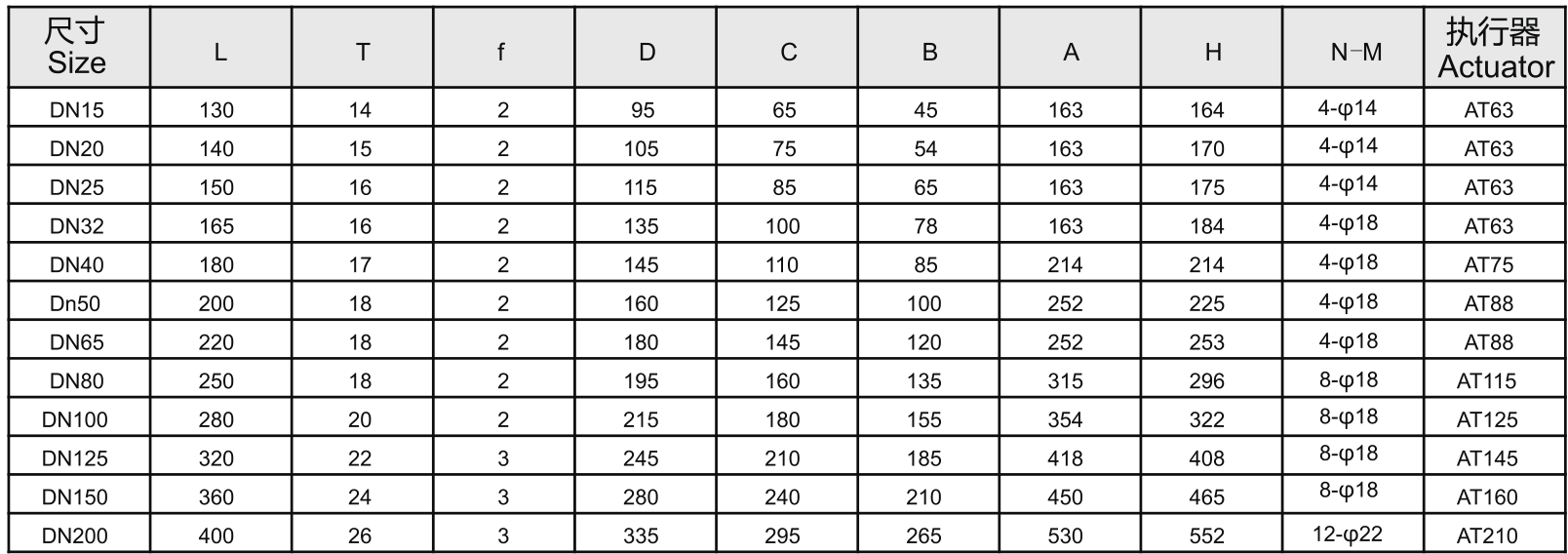

Specification table

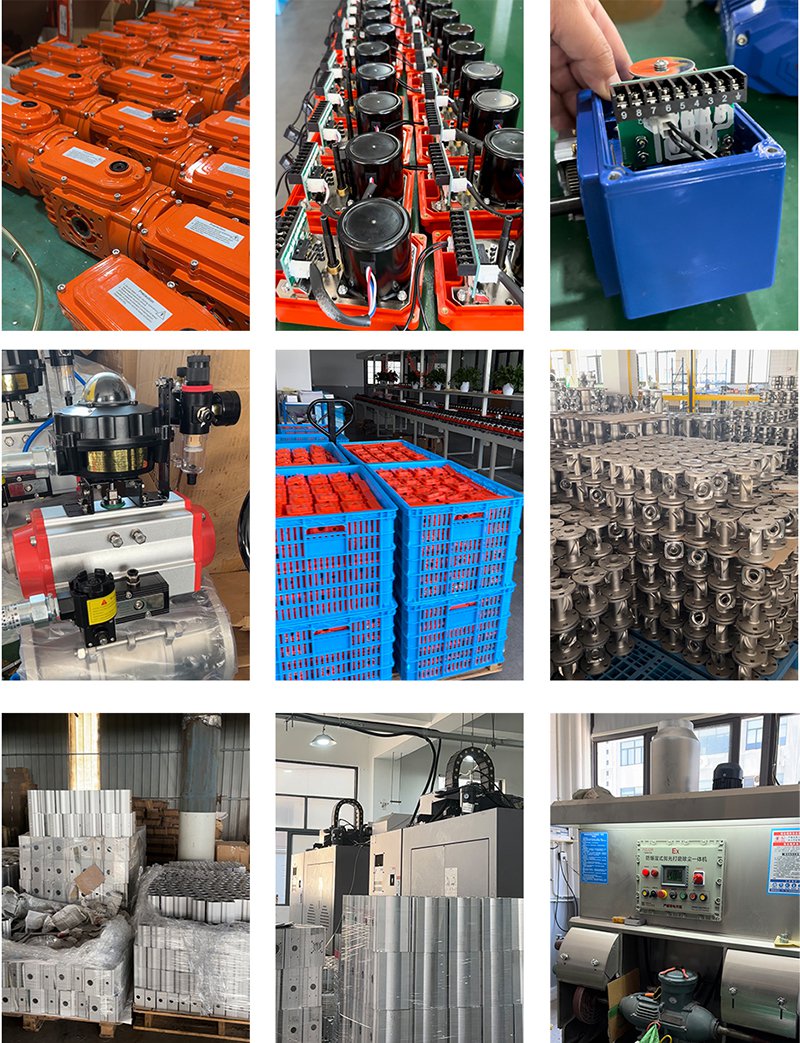

Workshop show
