• Pneumatic Sanitary Quick-Install Ball Valve

Pneumatic Sanitary Quick-Install Ball Valve

Model

    Pressure:0-1.6Mpa Port size:φ19~φ159

Description

Pneumatic Sanitary Quick-Install Ball Valve

Basic parameters

Medium temperature: - 20°C~+ 180°C

Ambient temperature: - 20°C~ + 60°C

Nominal pressure: 0~ 1.0 MPa

Air pressure: 0.3~ 0.8 MPa

Specification:p19-φ159

The vale body material: CF8 CF8M

Seat material:PTFE

Stem material: 304

Sealing ring material: NBR

Drawing

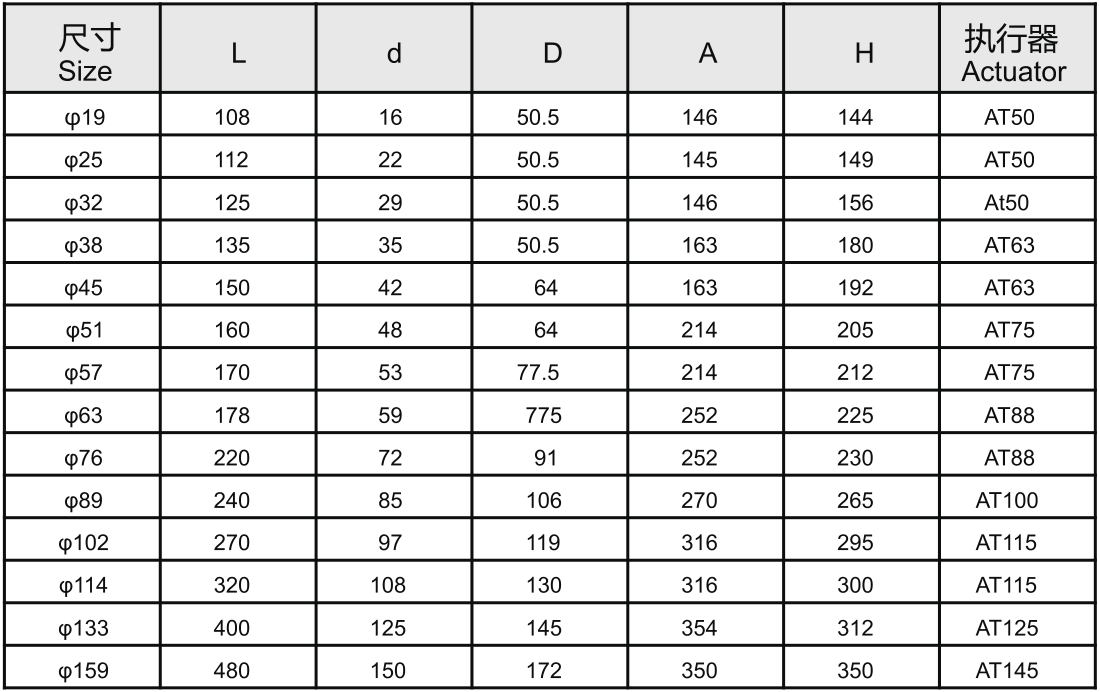

Specification table

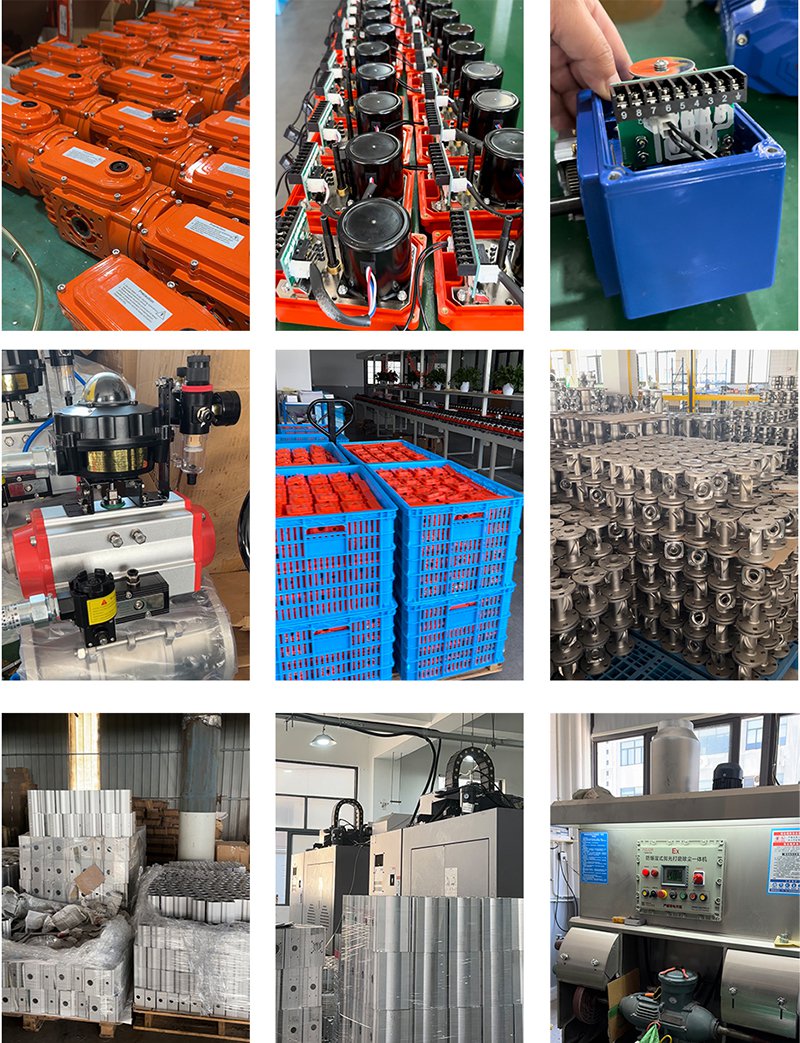

Workshop show
