• Pneumatic 3 Way Thread Ball Valve

Pneumatic 3 Way Thread Ball Valve

Model

    Pressure:0~1.6Mpa, 0~4.0MPa Port size:DN8~DN80

Description

Pneumatic 3 Way Thread Ball Valve

Basic parameters

Medium temperature: - 20°C~ + 180°C

Ambient temperature: - 20°C~ + 60°C

Nominal pressure: 0-1.6Mpa, 0 ~ 4.0MPa

Valve body material: CF8, CF8M(stainless steel 304/316)

Seat material:PTFE

Stem material: stainless steel 304

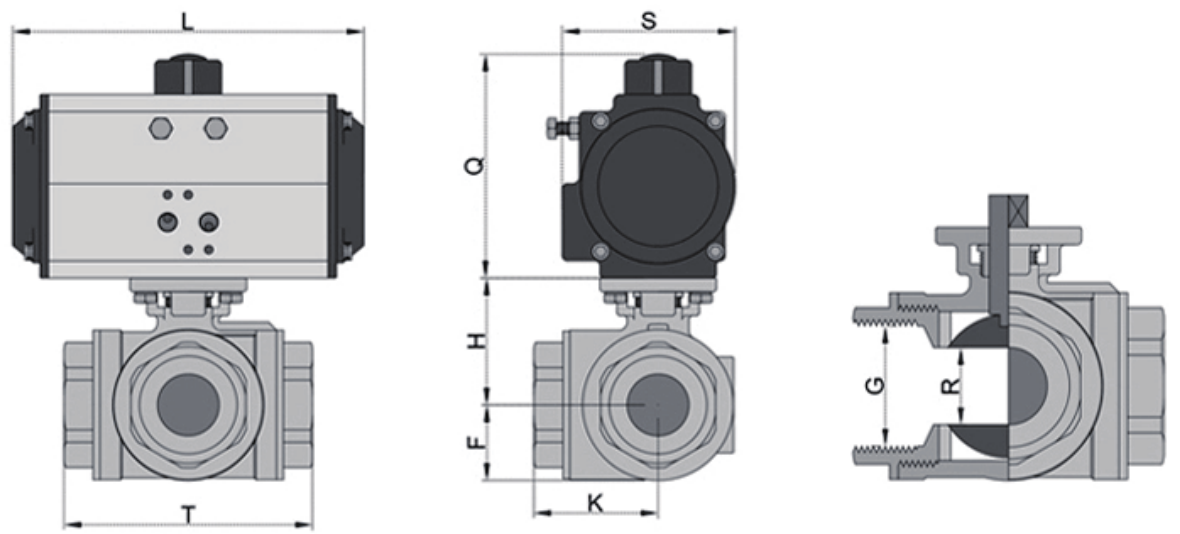

Drawing

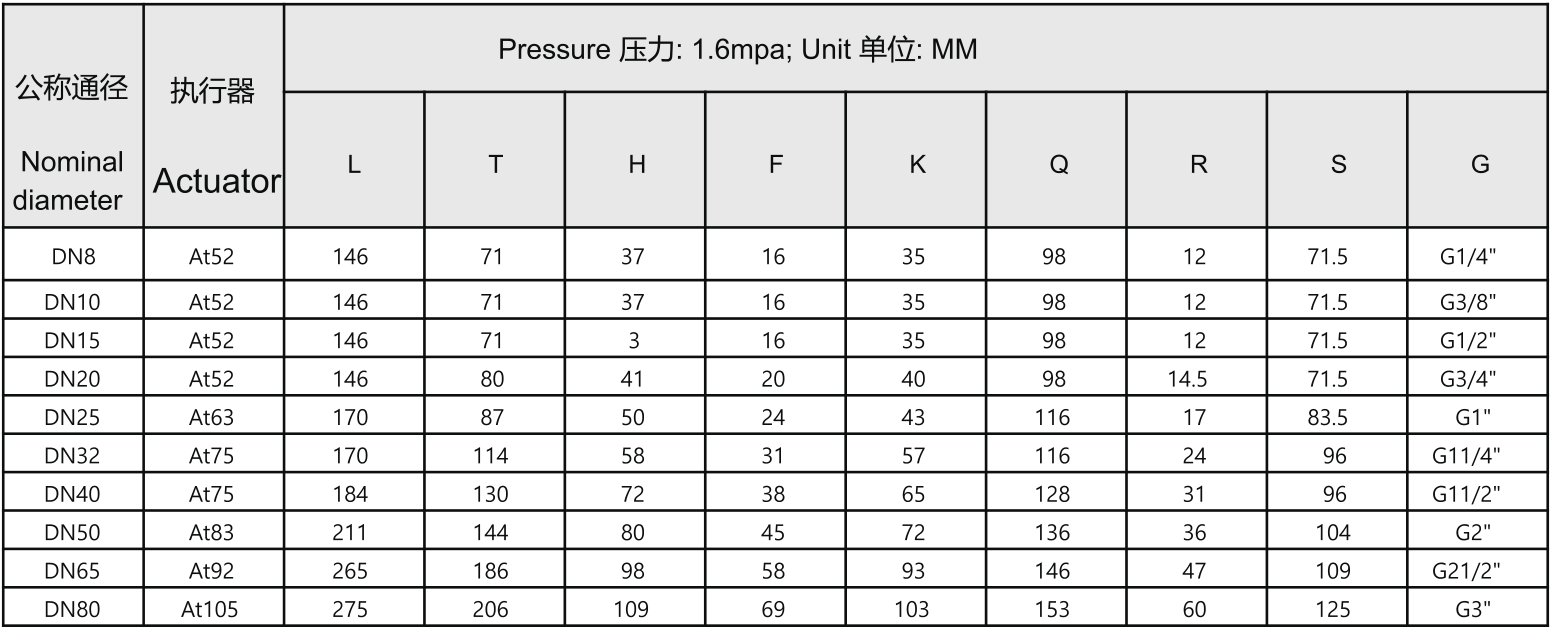

Specification table


Workshop show
