• Pneumatic 3 Pieces Thread Ball Valve

Pneumatic 3 Pieces Thread Ball Valve

Model

    Pressure:0-4Mpa;0.3~0.8Mpa Port size:1/2"~4"

Description

Pneumatic 3 Pieces Thread Ball Valve

Basic parameters

Medium temperature: - 20°C~+ 180°C

Ambient temperature: - 20°C~ + 60°C

Nominal pressure: 0 ~ 4.0 MPa

Air pressure: 0.3 ~ 0.8 MPa

Specification: DN15--DN100

The vale body material: CF8 CF8M

Seat material:PTFE

Stem material: SS304

Sealing ring material: NBR

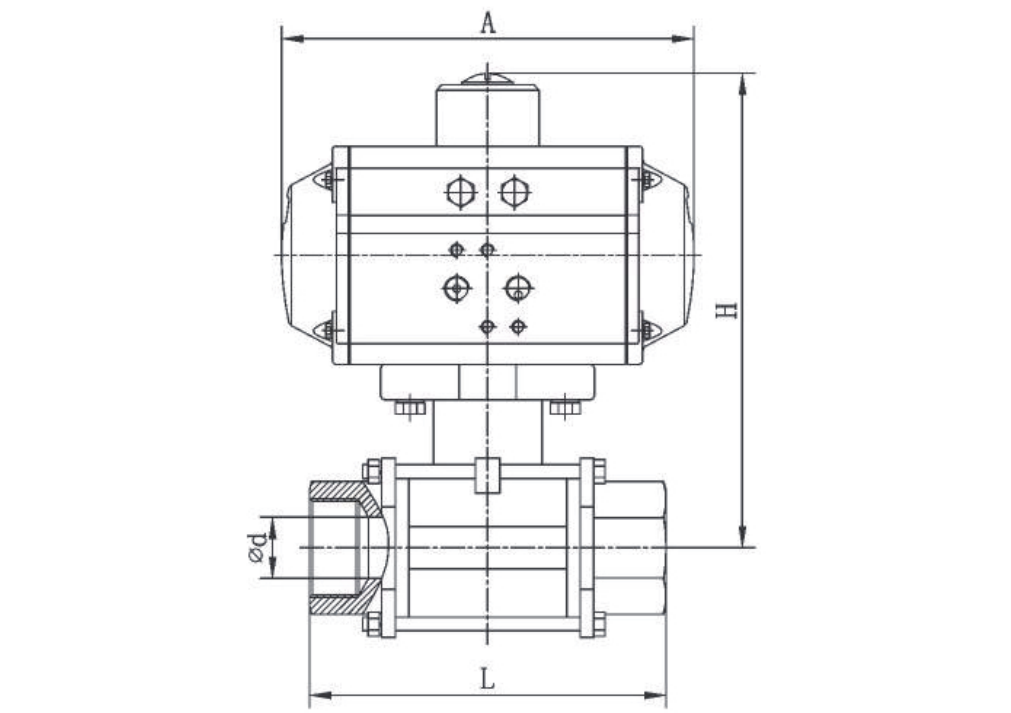

Drawing

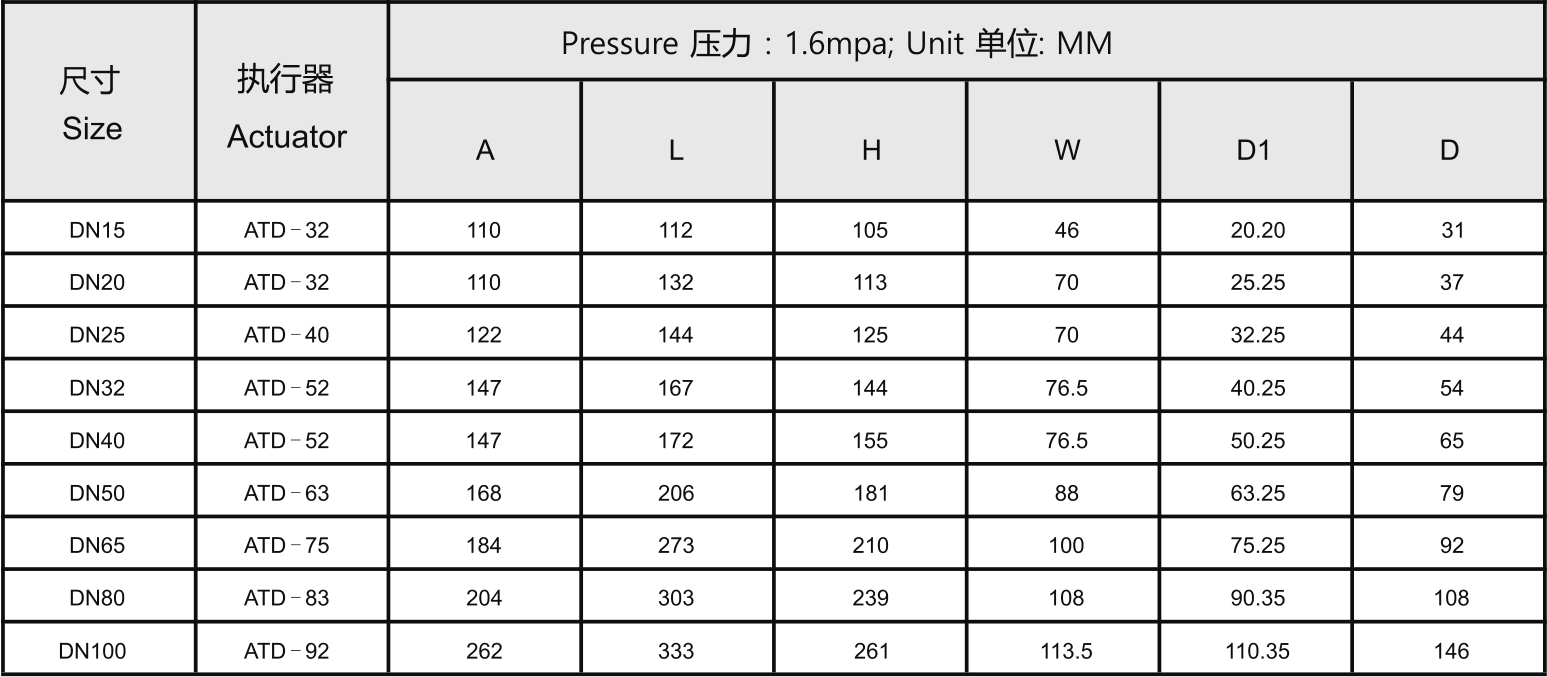

Specification table

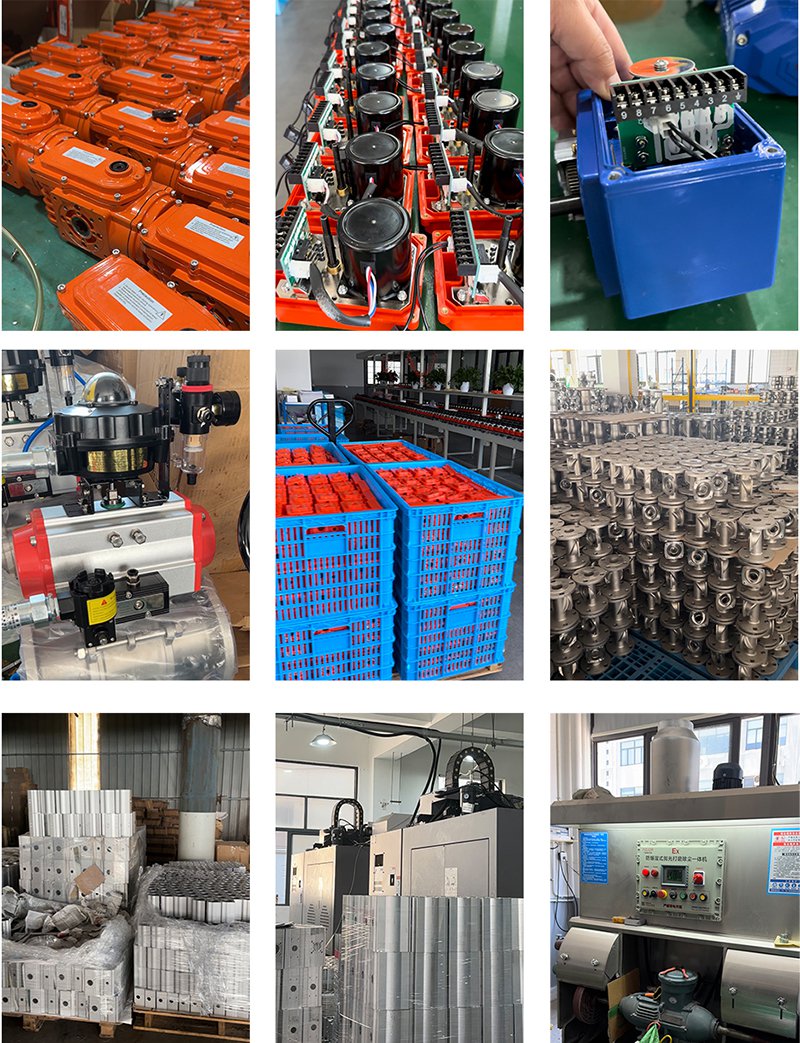

Workshop show
