• Pneumatic 3 Way Sanitary Quick-Install Ball Valve

Pneumatic 3 Way Sanitary Quick-Install Ball Valve

Model

    Pressure:0-1.6Mpa Port size:DN15~DN50

Description

Pneumatic 3 Way Sanitary Quick-Install Ball Valve

Basic parameters

Working pressure: 1.6MPA

Applicable temperature: -18 ~ 150C/-15~200°C

Nominal diameter: DN1 5-DN100

Body material: 304/316 stainless steel

Material of valve seat: PTFE , PPL

Applicable media: water, air, oil, acid and alkali

Driving mode: pneumatic

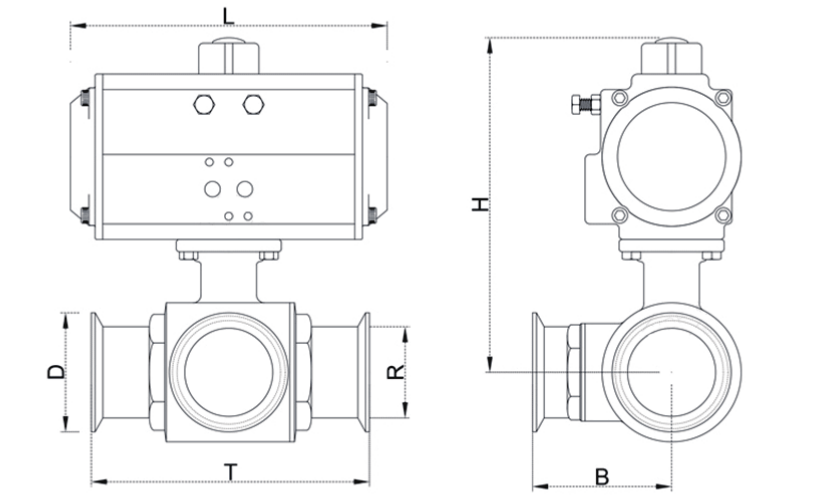

Drawing

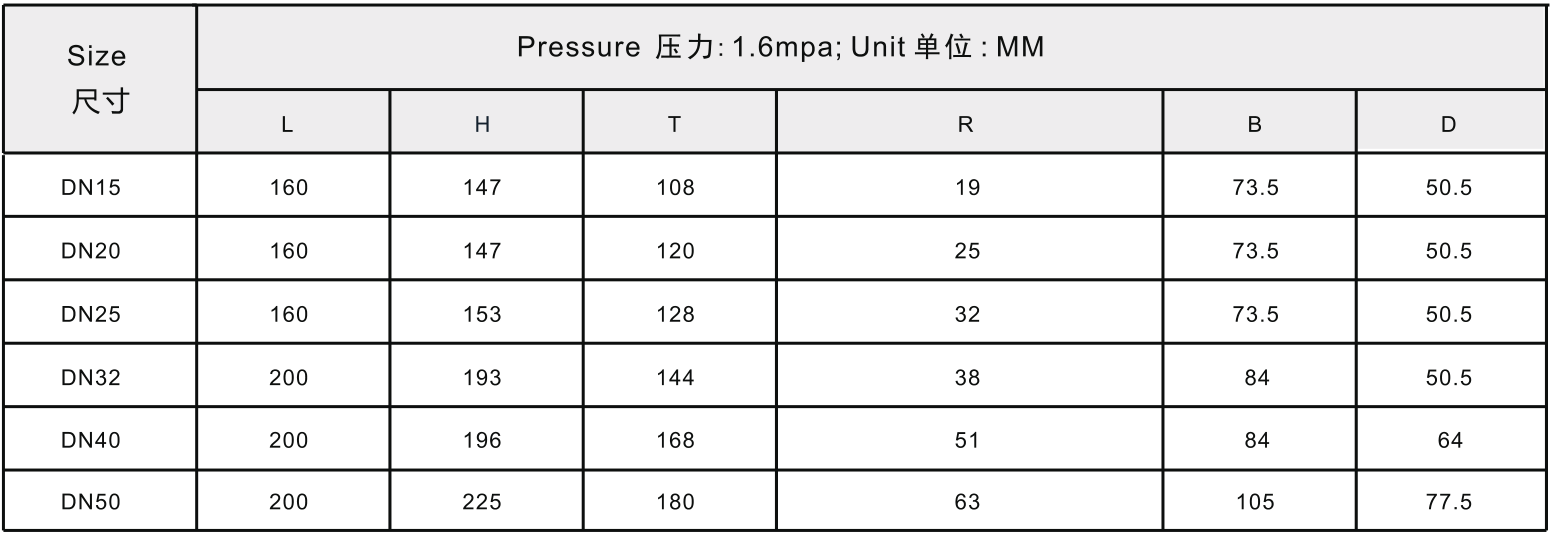

Specification table

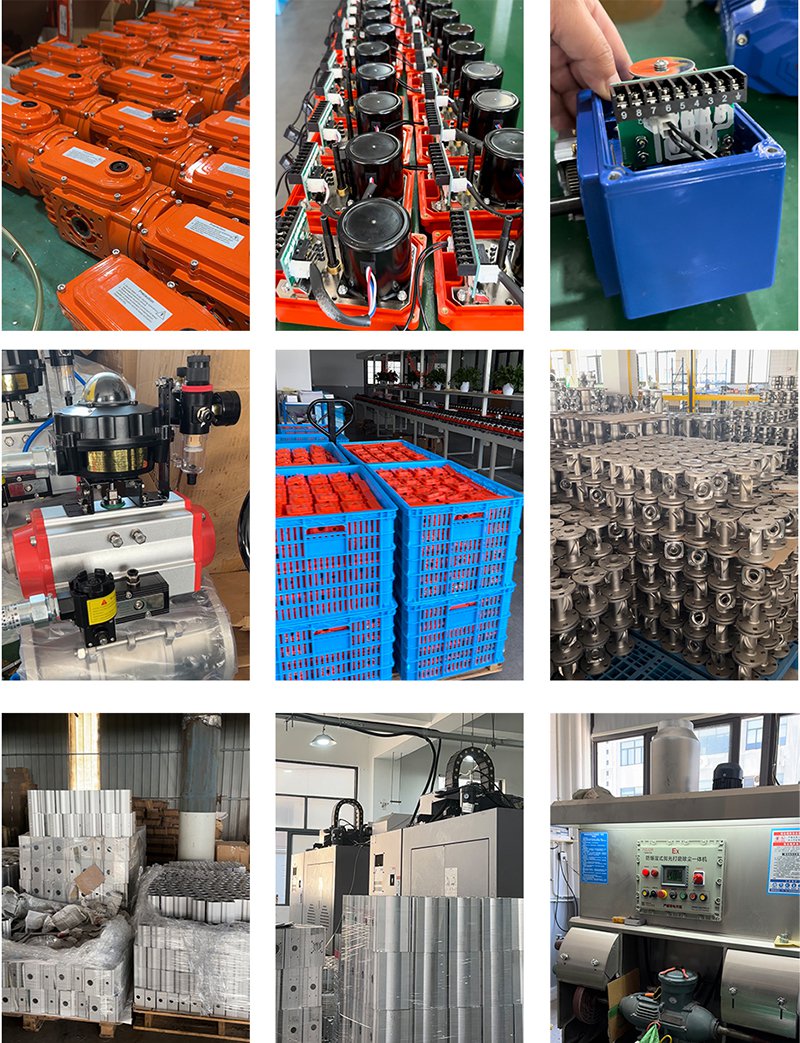

Workshop show
