Electric 3 Way Sanitary Quick-Install Ball Valve

Model

Pressure:0-1Mpa Port size:DN15~DN50

Electric 3 Way Sanitary Quick-Install Ball Valve

Basic parameters

Medium temperature: - 20°C~ + 180°C

Ambient temperature: -20°C~ + 60°C

Nominal pressure: 0~ 1.0 MPa

Voltage(Control Power): AC110V, AC220V, AC380V, DC24V

Size:φ19-φ159MM

Valve body material: CF8, CF8M(stainless steel 304/316)

Seat material: PTFE

Stem material: stainless steel 304

Flow direction: L type, T type

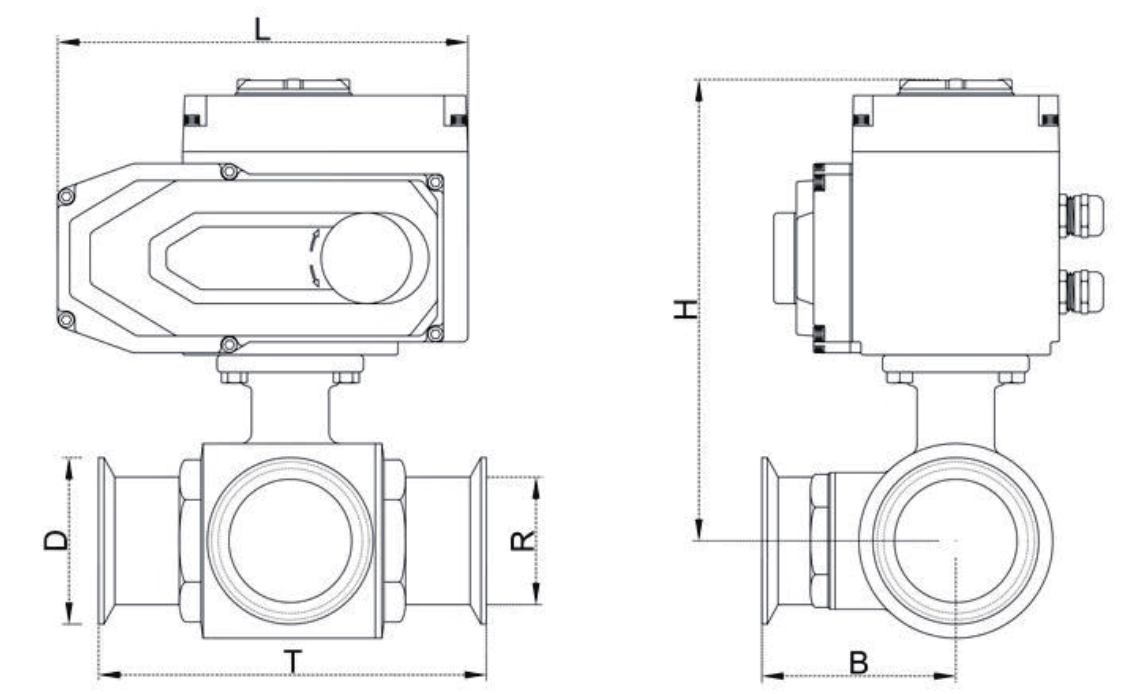

Drawing

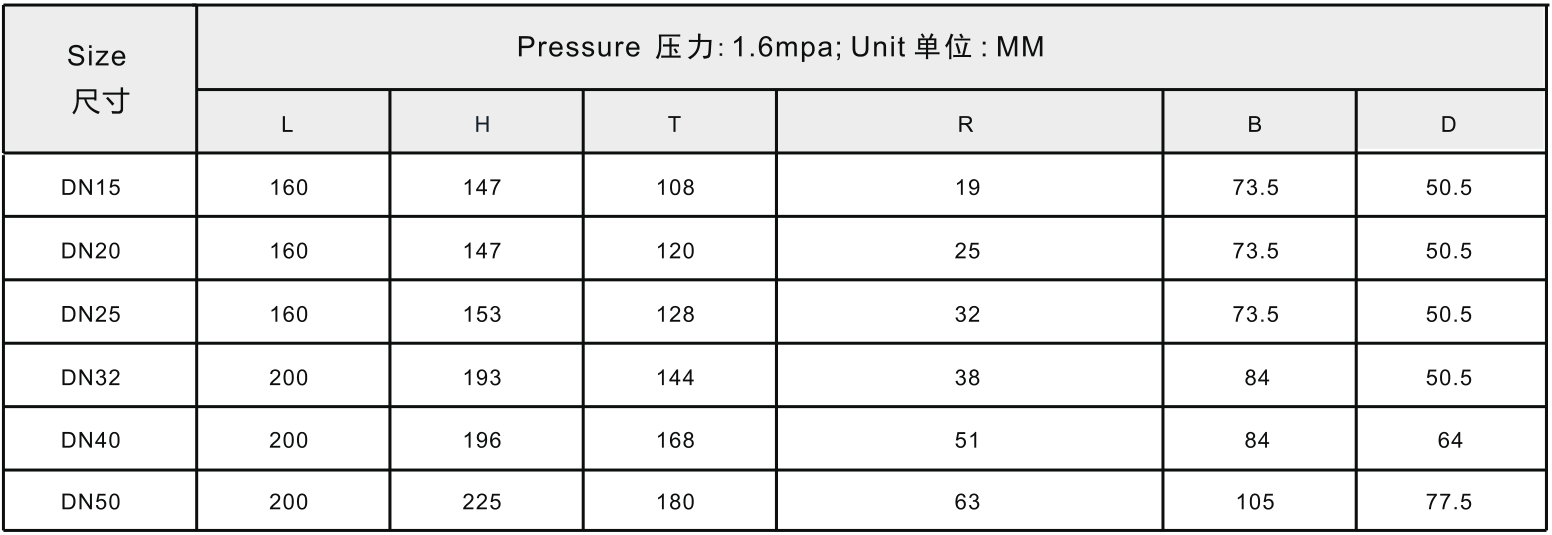

Specification table

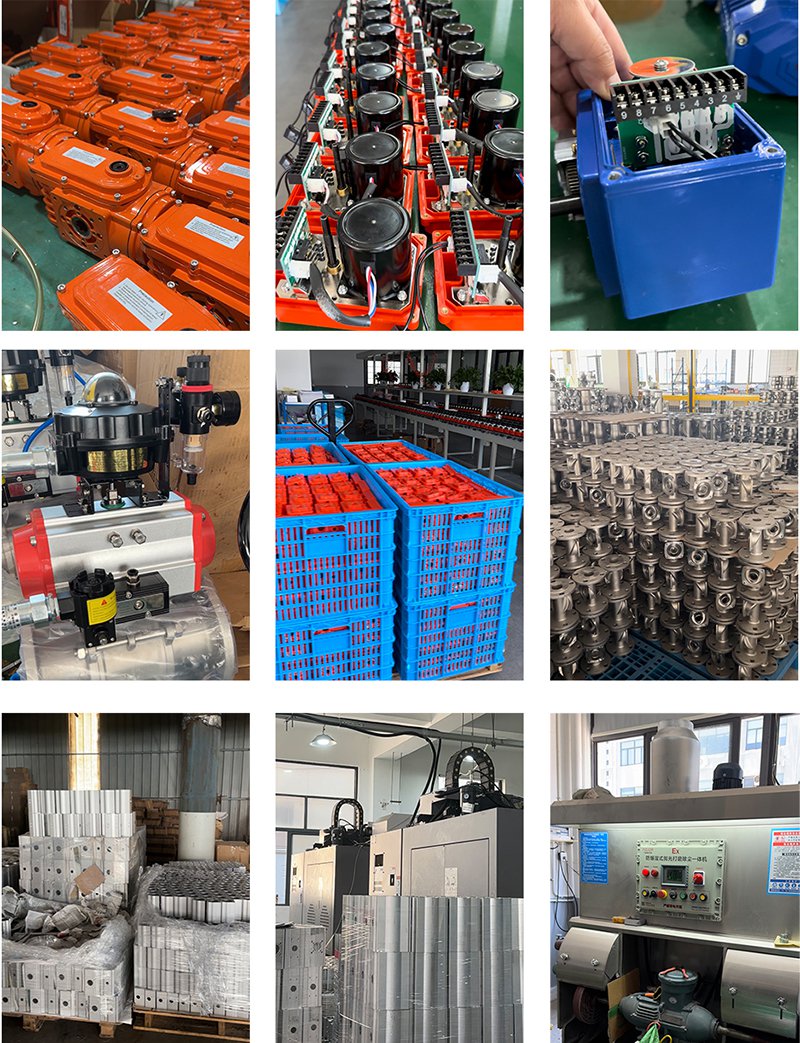

Workshop show
