• Electric PVC Ball Valve

Electric PVC Ball Valve

Model

    Pressure:0-1.6Mpa, 0-4Mpa Port size:DN15~DN100

Description

Electric PVC Ball Valve

Basic parameters

Nominal diameter DN(mm): DN15-DN100

End connection: Union

Valve body material:

UPVC(-10°C~70°C), CPVC(-40°C~95°C)

RPP(-14°C~100°C), PVDF(-40°C~140°C)

Bore material:

UPVC(-10°C~ 70°C)、CPVC(-40°C~95°C)

RPP(-14°C~100°C) PVDF(-40°C~140°C) .

Sealing material:PTFE, EPDM, NBR

Applicable medium:

PVC chemical solvent compatible food industry

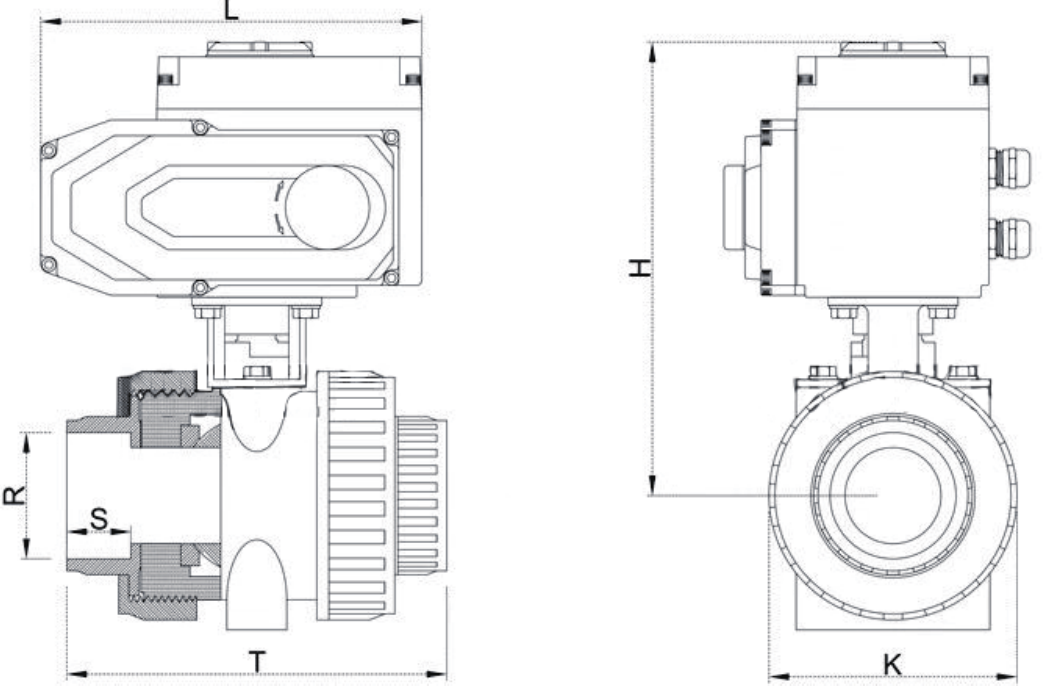

Drawing

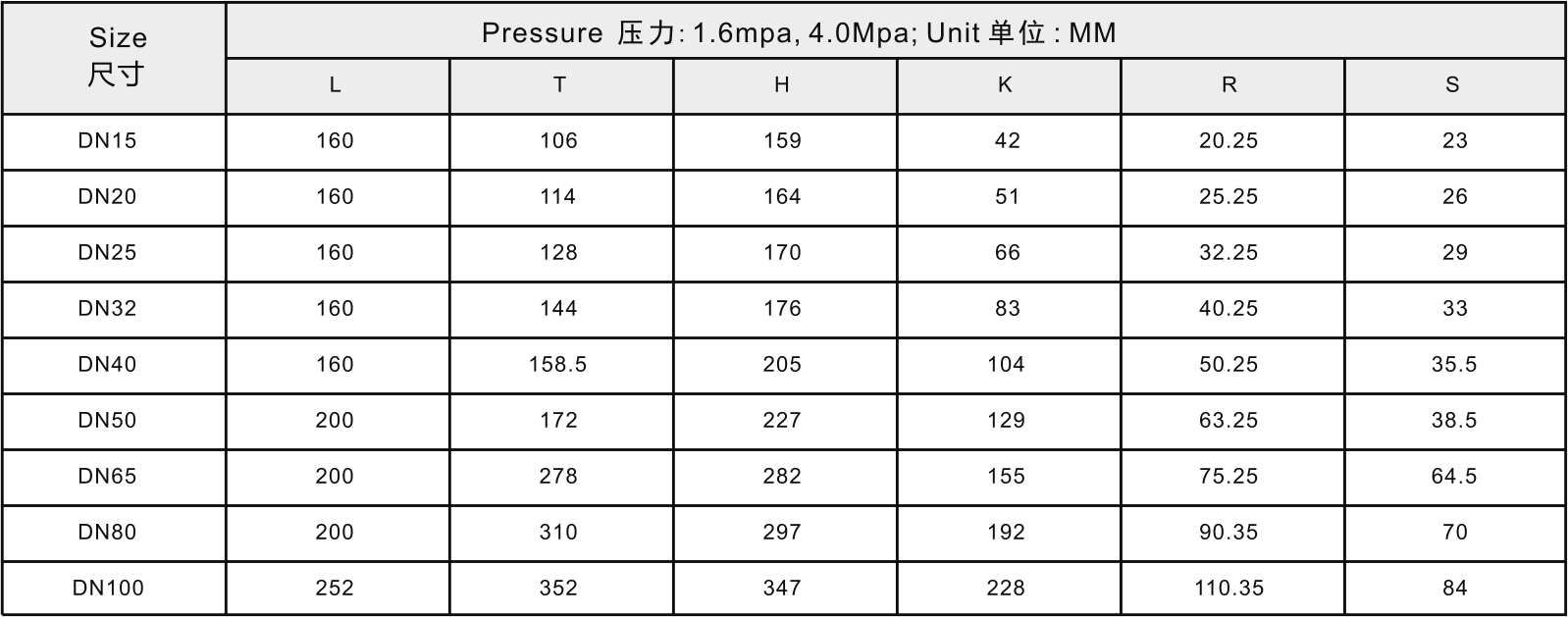

Specification table

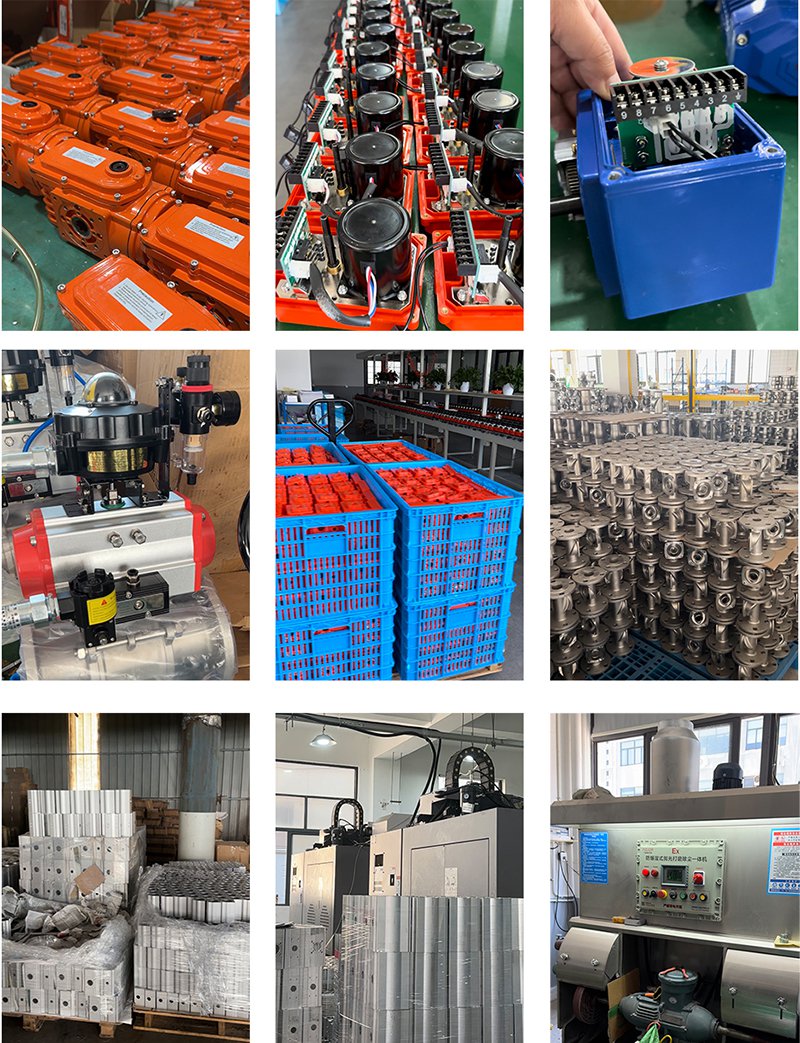

Workshop show
