• Electric Thin Ball Valve

Electric Thin Ball Valve

Model

    Pressure:0-1.6Mpa, 0-4Mpa Port size:DN20~DN150

Description

Electric Thin Ball Valve

Basic parameters

Medium temperature: - 20°C~ + 180°C

Ambient temperature: - 20°C~ + 60°C

Nominal pressure: 0-1 .6Mpa, 0 ~ 4.0MPa

Voltage(Control Power): AC110V, AC220V, AC380V, DC24V

Size: DN15 ~ DN1 50MM

Valve body material: CF8, CF8M(stainless steel 304/316)

Seat material:PTFE

Stem material: stainless steel 304, 2Cr13, 0Cr18Ni9Ti

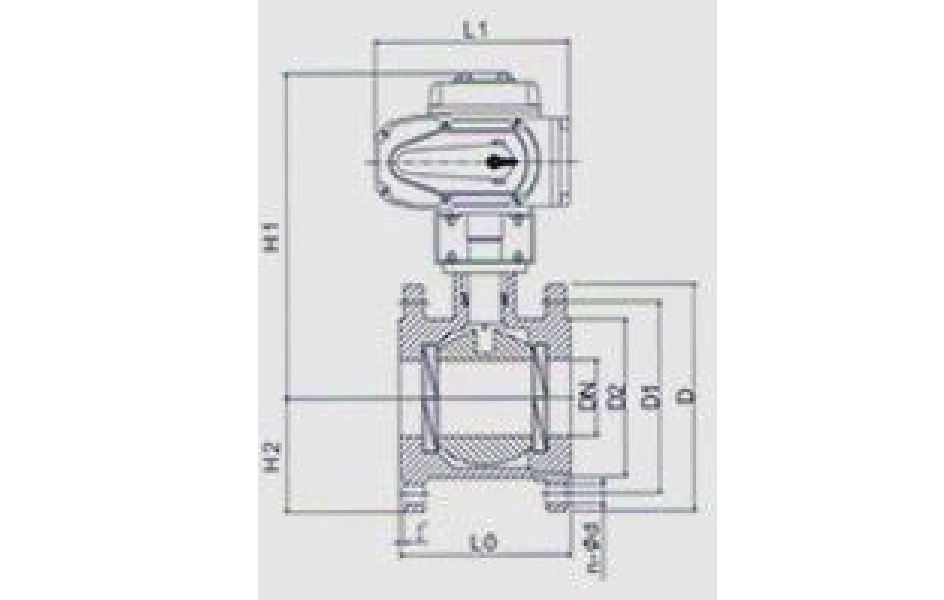

Drawing

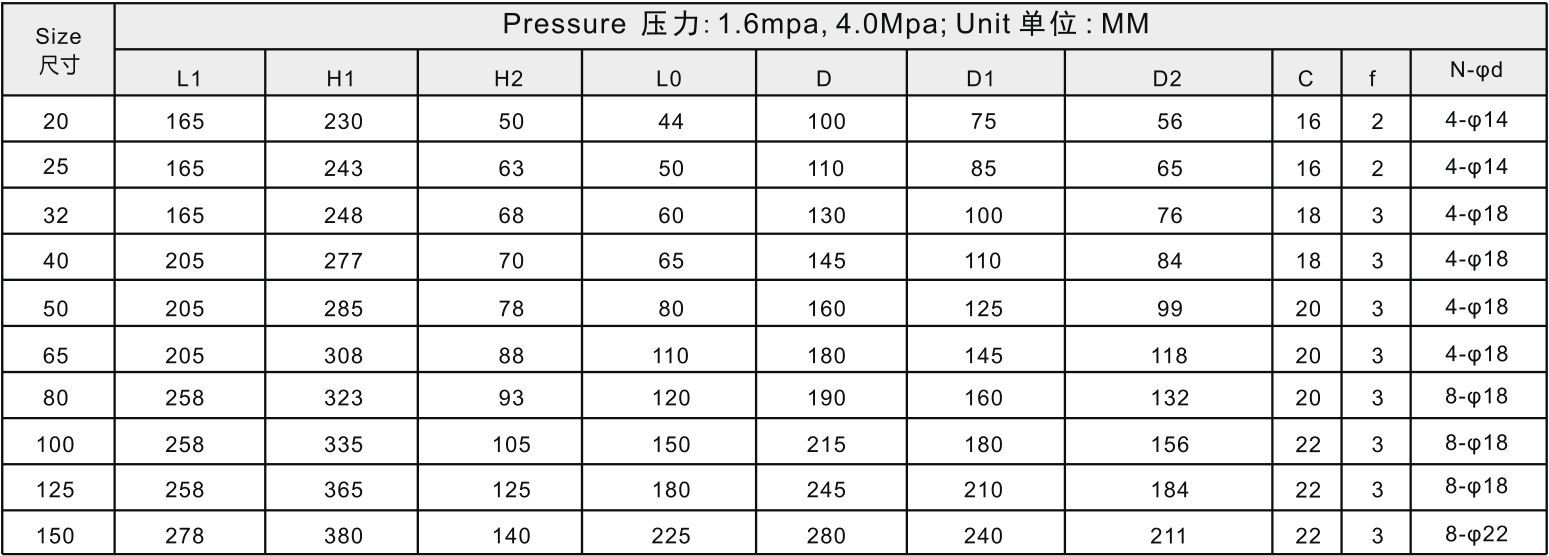

Specification table

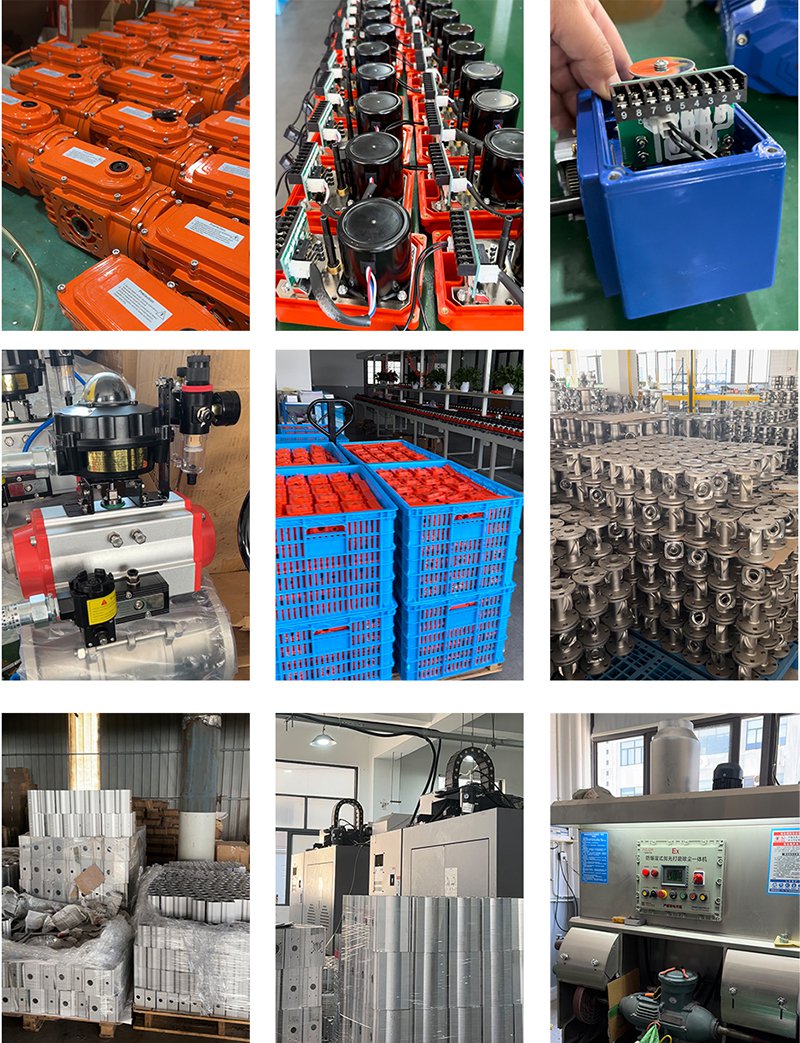

Workshop show
