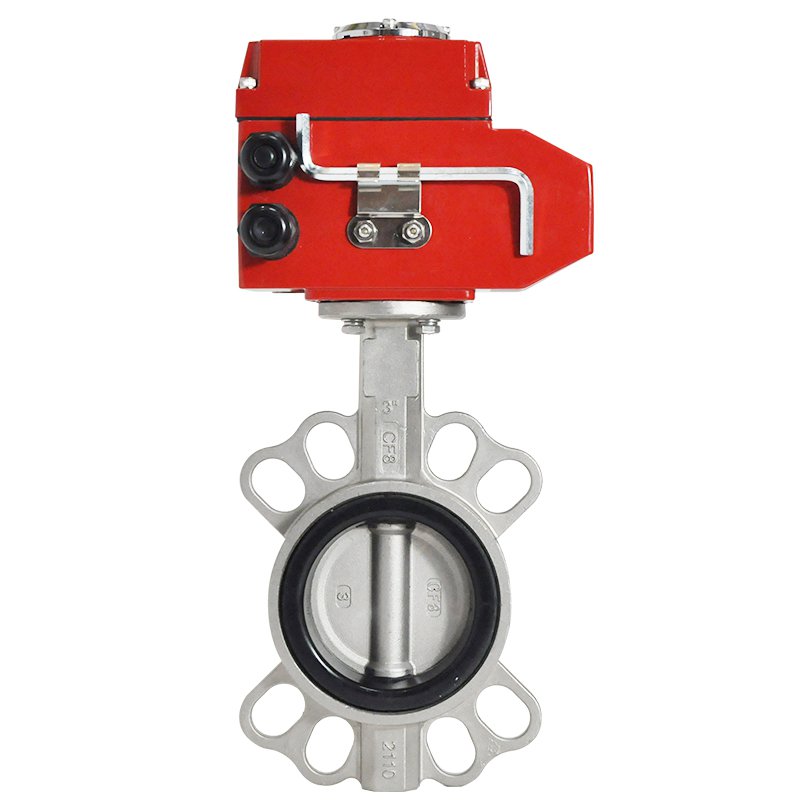

Electric Wafer Type Stainless Steel Buttrfly Valve

Model

    Pressure:0-1.6Mpa, 0-1Mpa Port size:DN40~DN300

Description

Electric Wafer Type Stainless Steel Buttrfly Valve

Basic parameters

Medium temperature: - 20°C~+ 150°C

Ambient: temperature: -20°C~ + 60°C .

Nominal pressure: 0~ 1.0 MPa, 0-1.6Mpa

Voltage(Control Power): AC110V, AC220V, AC380V, DC24V

Size:: DN50~DN300MM

Valve body: WCB, cast iron, stainless steel 304/316

Valve Disc: WCB, CF8, CF8M, D.Plated Nickel, D.ICoated

Nyion, Alum-bronze

Seat material: EPDM, NBR, PTFE, Viton

Stem material: stainless steel 304, carbon steel

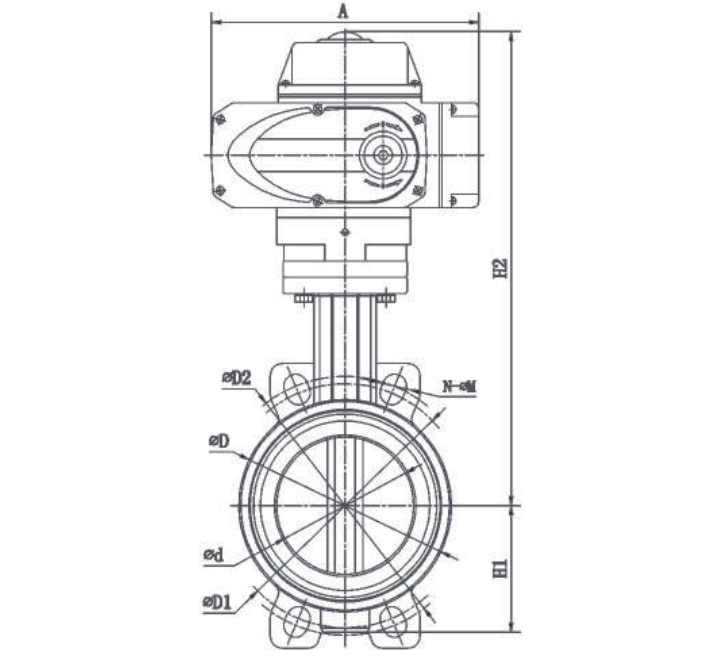

Drawing

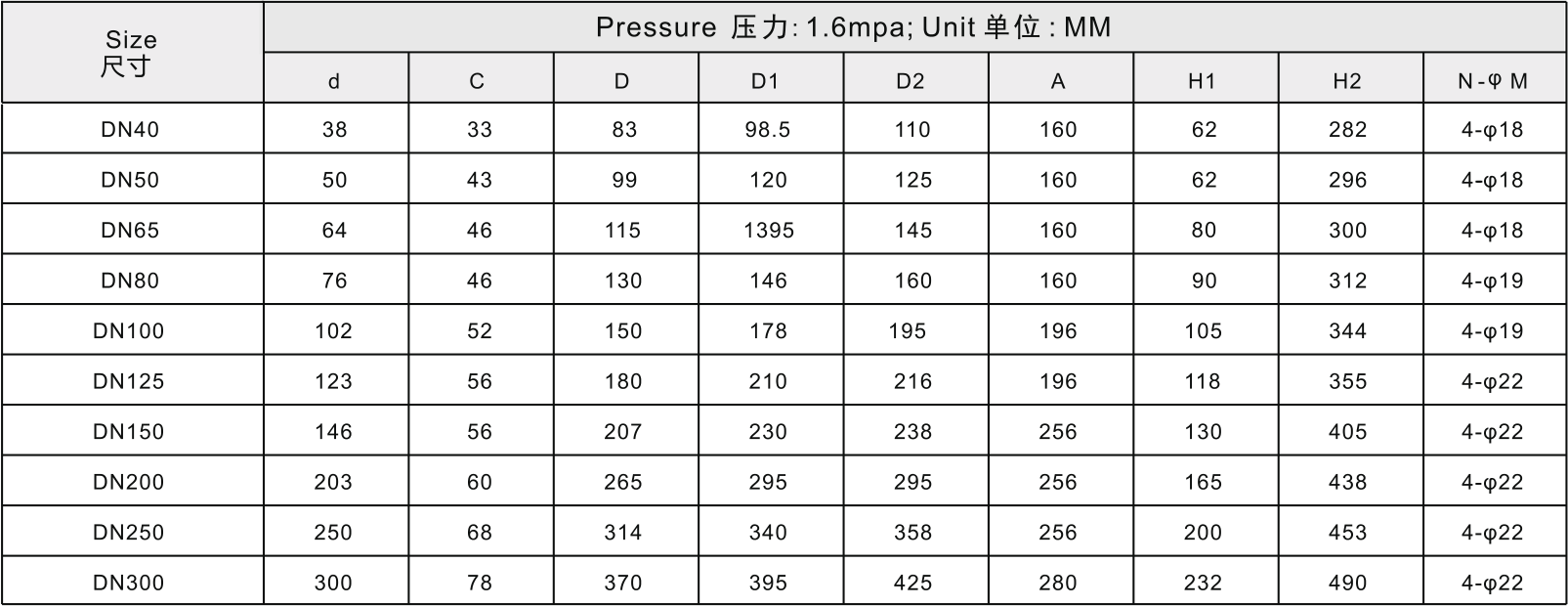

Specification table

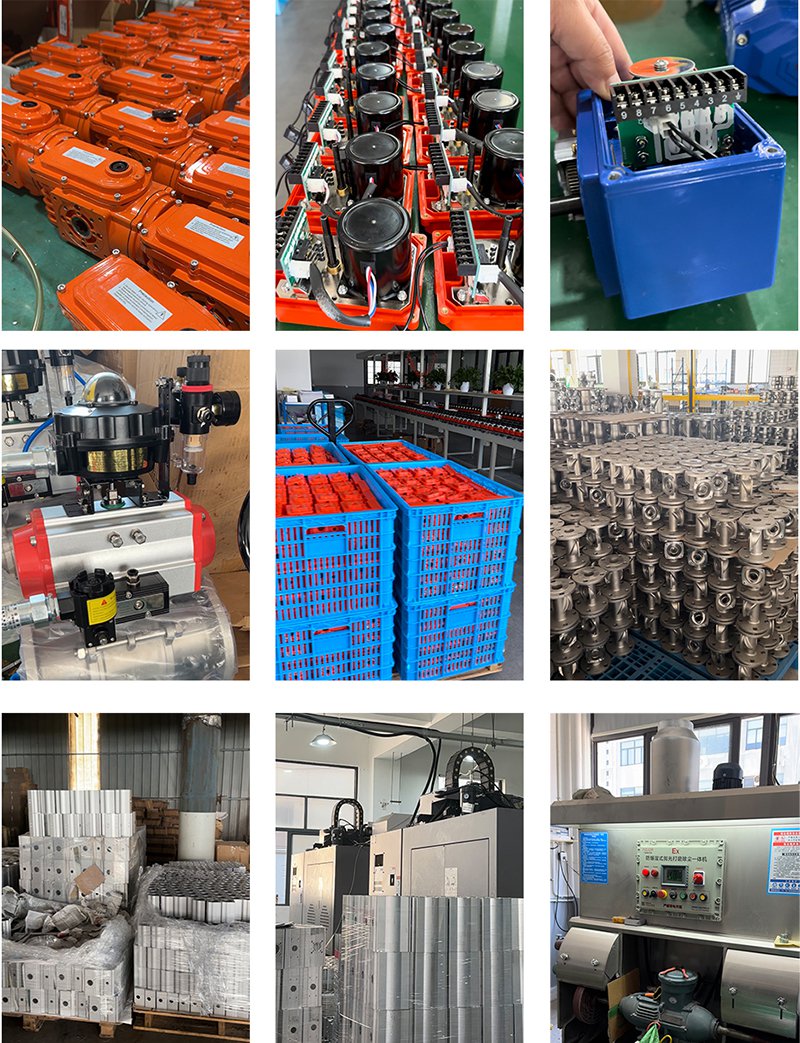

Workshop show
