Electric PVC Butterfly Valve

Model

Pressure:0-1.6Mpa, 0-4Mpa Port size:DN50-DN300

Electric PVC Butterfly Valve

Basic parameters

Nominal diameter DN(mm): DN50-DN300

End connection; Wafer

Valve body material:

UPVC(-10*C-70*C), CPVC(-40°C~95*C)

RPP(-14°C~100°C), PVDF( 40°C~140°C)

Bore material:

UPVC(-10°C ~ 70°C). CPVC(-40°C-95*C)

RPP(-14°C~100"C) PVDF(-40°C~140°C)

Sealing material:PTFE, EPDM, NBR

Applicable medium:

PVC chemical solvent compatible food industry

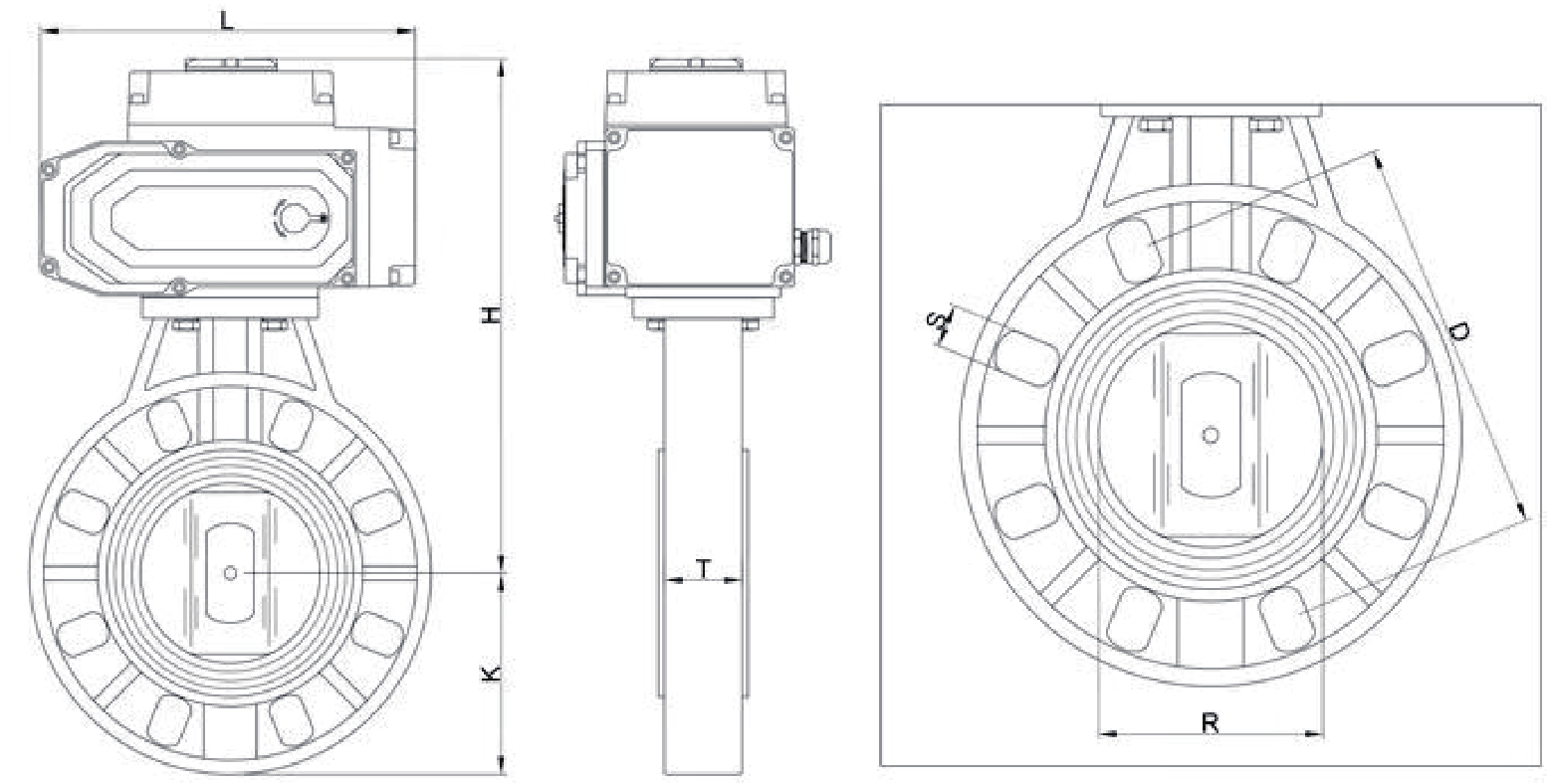

Drawing

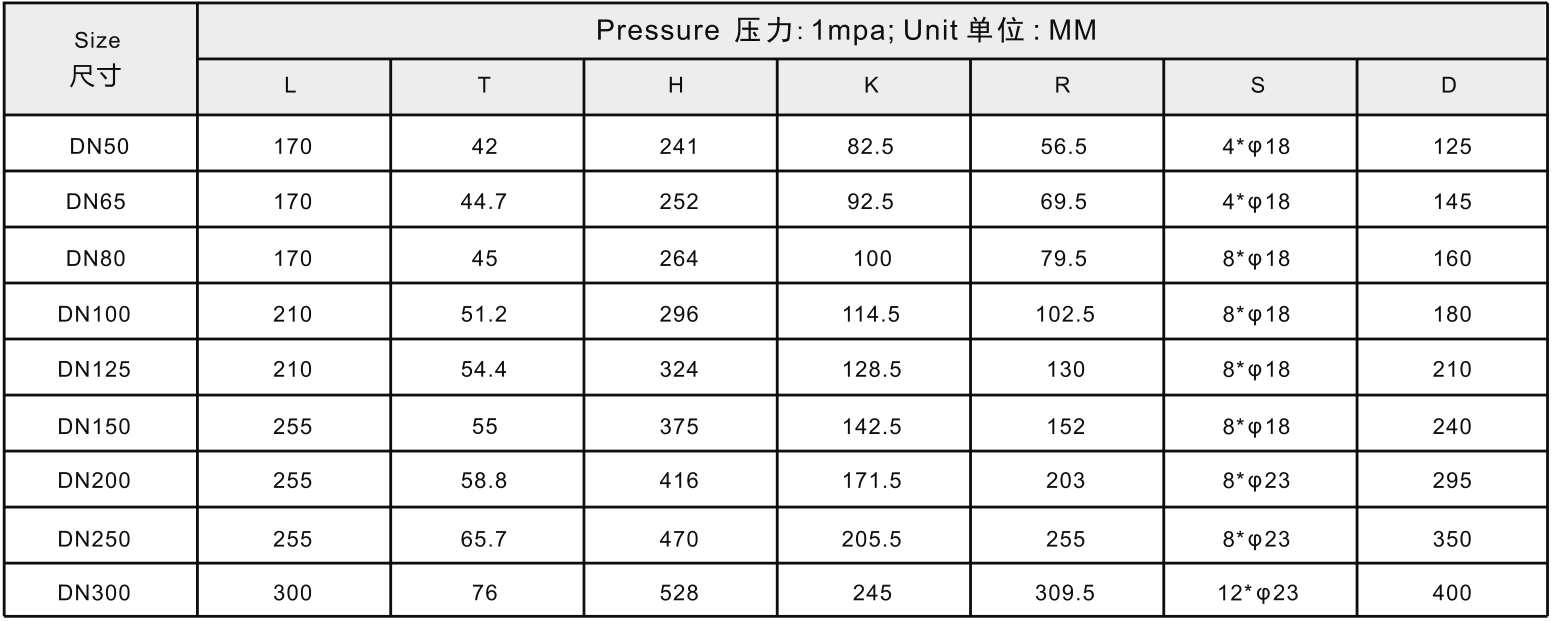

Specification table

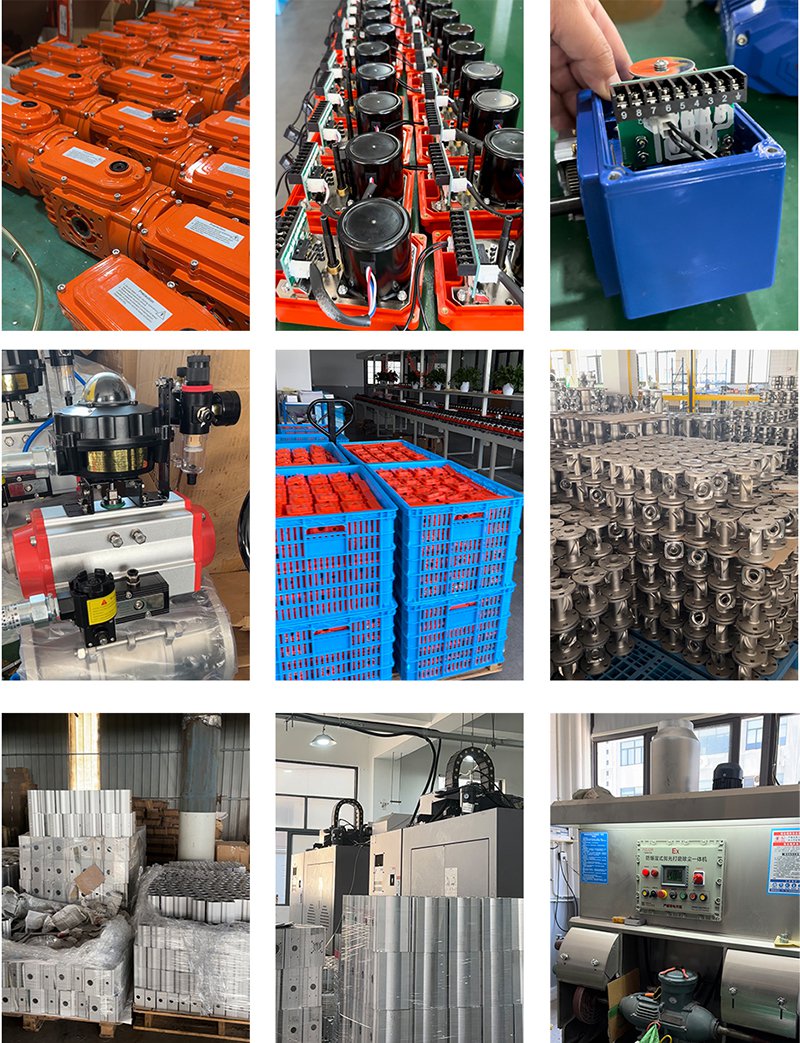

Workshop show
