• Electric Flange Butterfly Valve

Electric Flange Butterfly Valve

Model

    Pressure:0-1.6Mpa Port size:DN50~DN450

Description

Electric Flange Butterfly Valve

Basic parameters

Medium temperature: 20°C~+150°C

Ambient temperature:-20°C~+60°C

Nominal pressure:0~1 .6MPa

Voltage(Control Power): AC110V, AC220V, AC380V, DC24V

Size: DN50~DN600MM

Valve body: WCB, CF8, CF8M(stainless steel 304/316)

Valve Disc: WCB, CF8, CF8M

Seat material: EPDM, NBR, FPM

Stem material:stainless steel 304, carbon steel

Sealing ring material: NBR

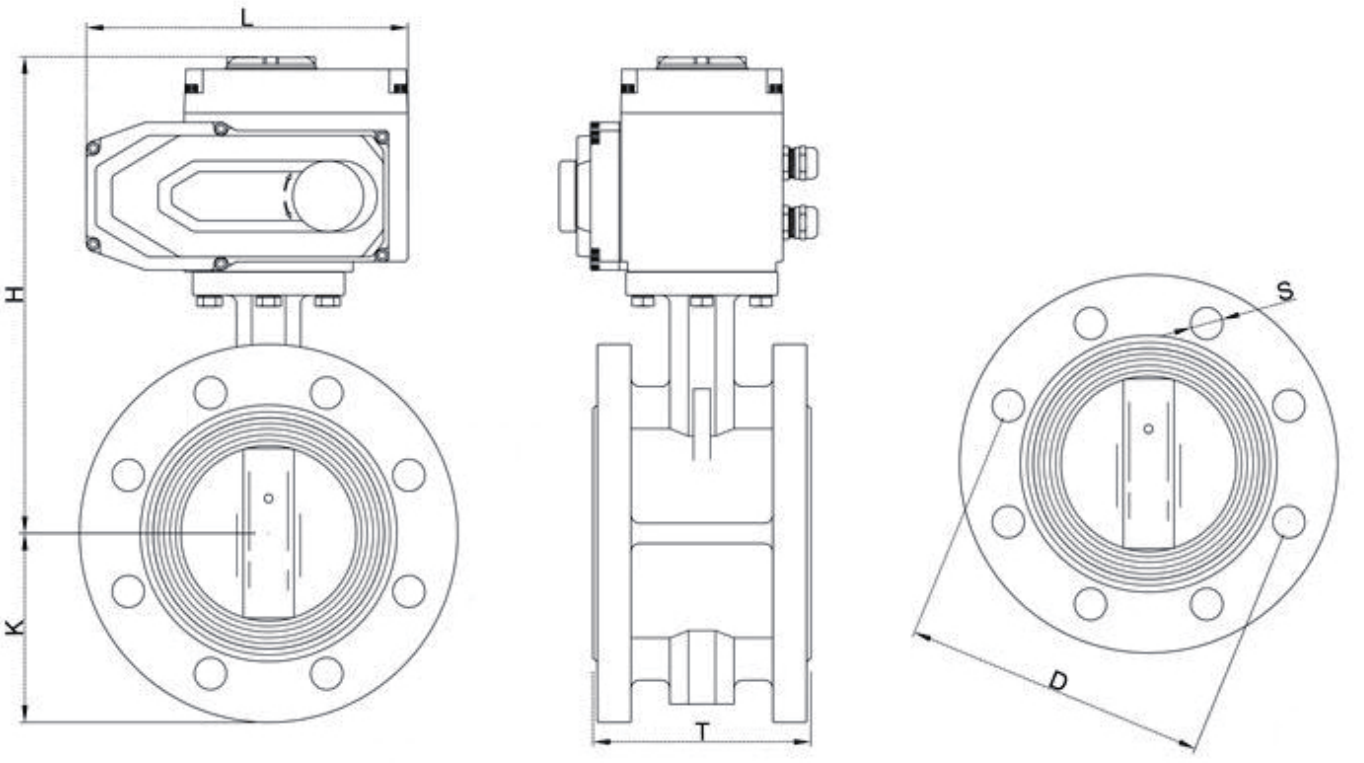

Drawing

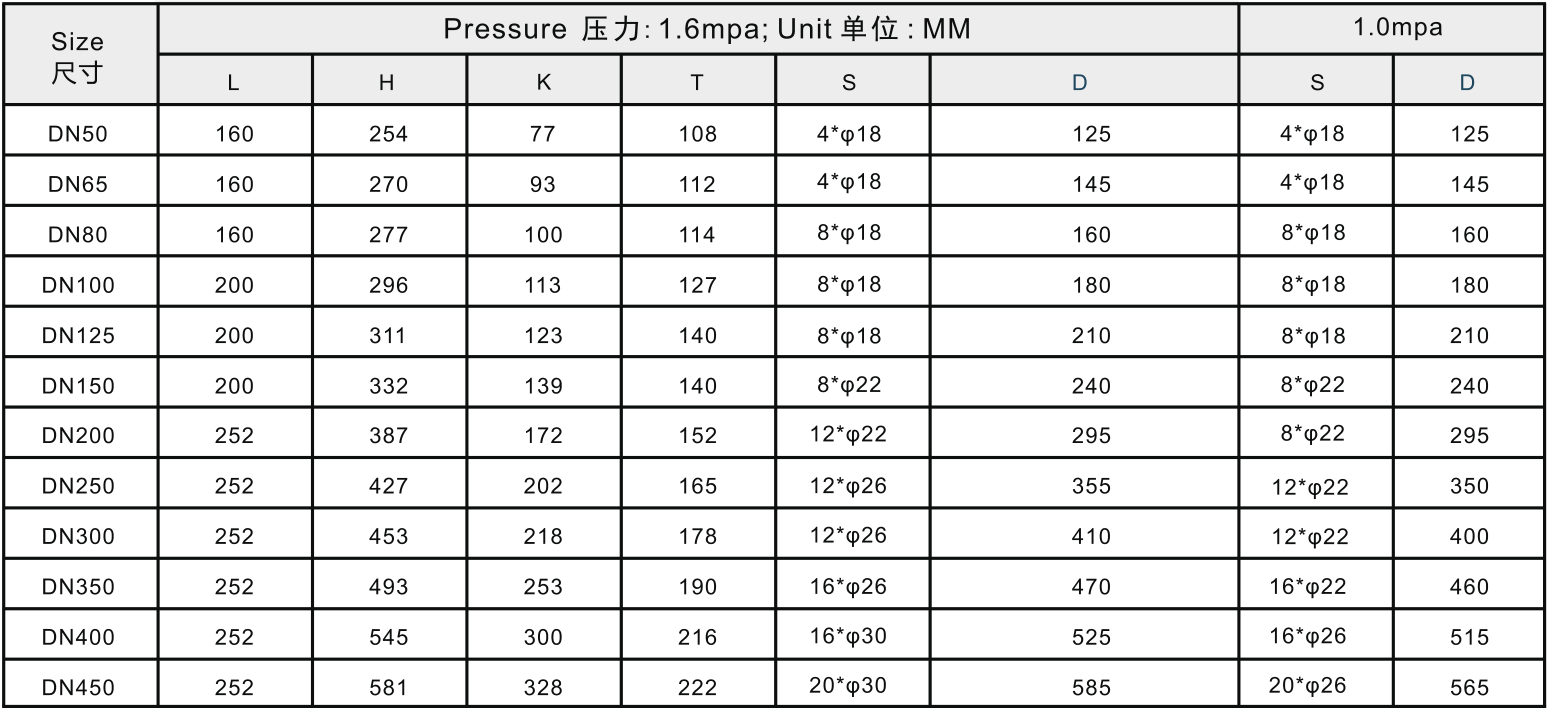

Specification table

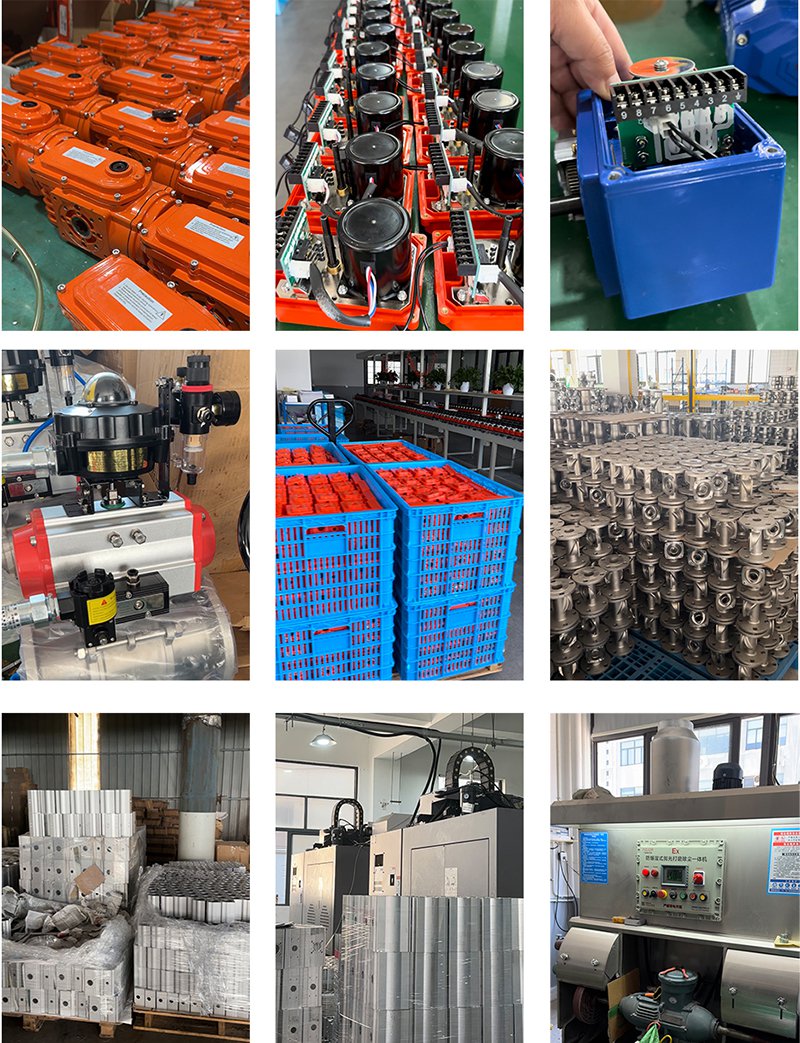

Workshop show
