Pneumatic Sanitary Quick-Install Butterfly Valve

Model

Pressure:0-1.6Mpa Port size:φ19-φ219

Pneumatic Sanitary Quick-Install Butterfly Valve

Basic parameters

Medium temperature: -20°C~ + 120°C

Ambient temperature: - 20°C~ + 60°C

Nominal pressure: 0~ 1.0 MPa

Air pressure: 0.3~ 0.8 MPa

Specification:φ19-φ219

The valve body material: 304/316

The valve material: CF8 CF8M

The seat material: EPDM NBR FPM

Stem material: 304

Sealing ring material: NBR

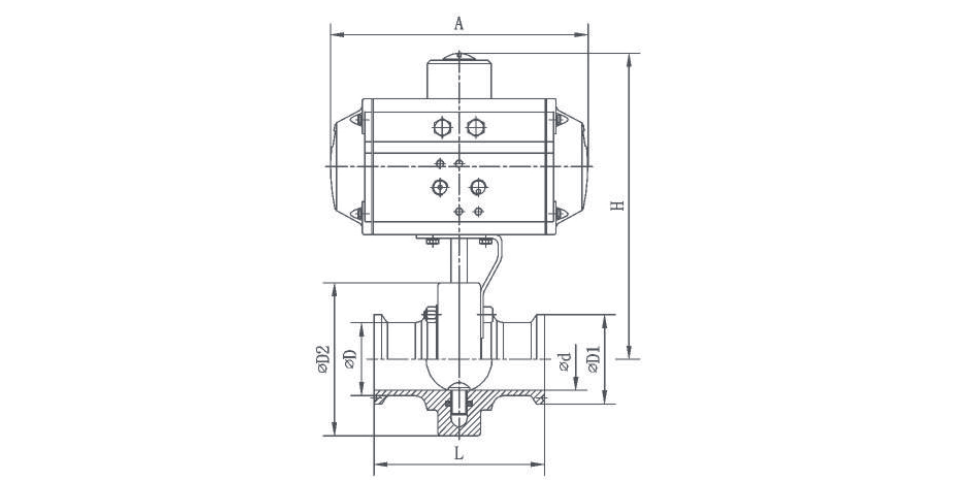

Drawing

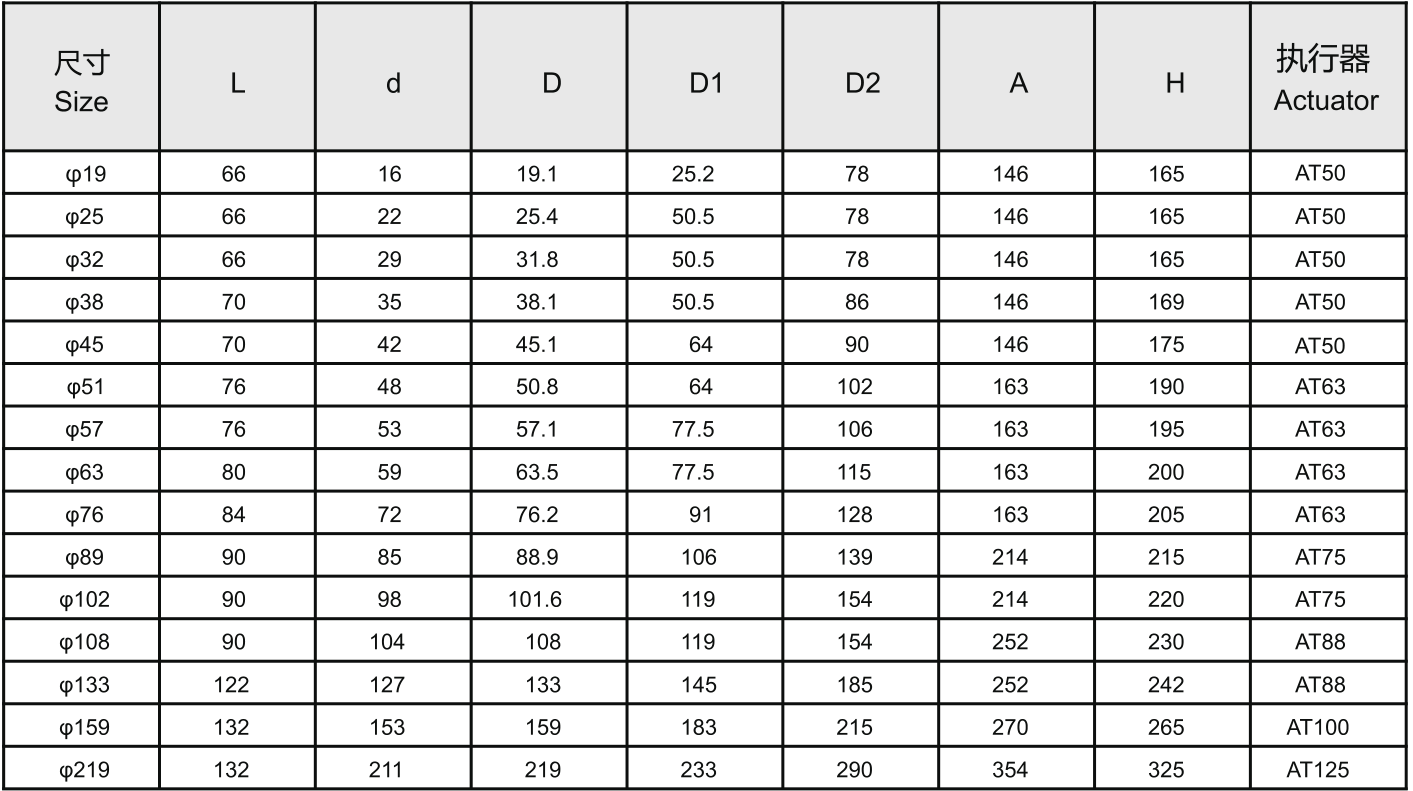

Specification table

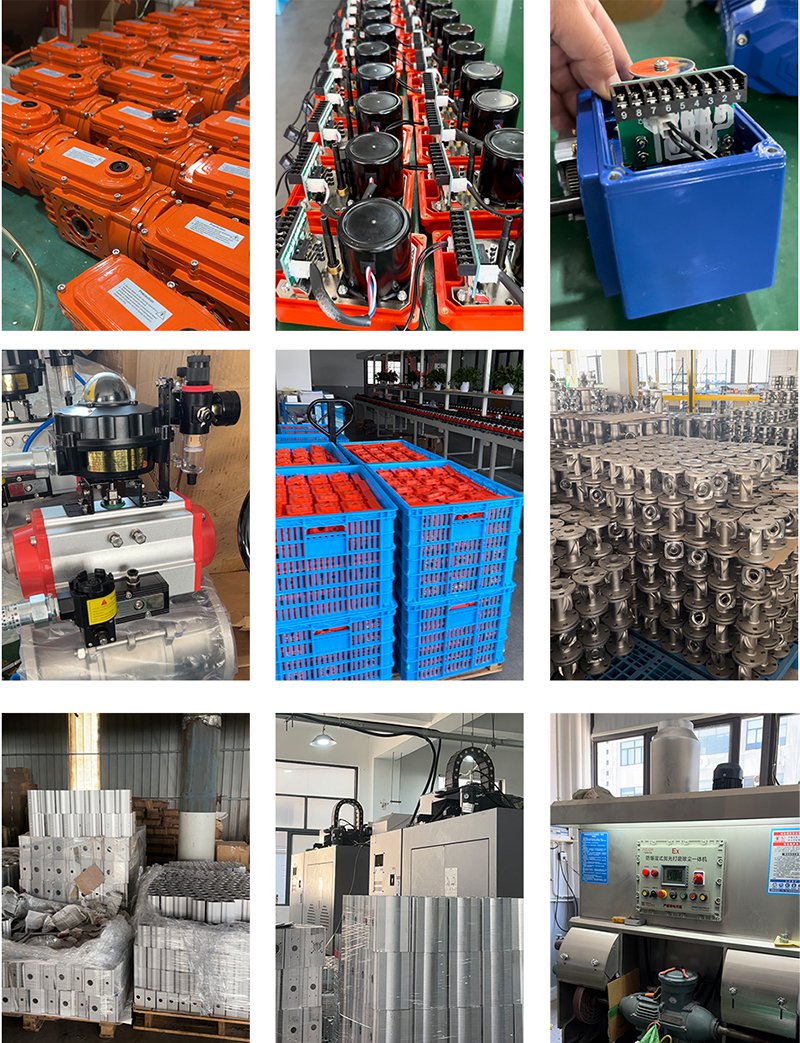

Workshop show
