• Pneumatic Flange Butterfly Valve

Pneumatic Flange Butterfly Valve

Model

    Pressure:0~ 1.6 MPa Port size:DN50~DN600

Description

Pneumatic Flange Butterfly Valve

Basic parameters

Medium temperature: - 20°C~ + 150°C

Ambient temperature:-20°C~ + 60°C

Nominal pressure: 0~ 1.6 MPa

Air pressure: 0.3 ~ 0.8 MPa

Specification:DN50~DN600

The valve body material: WCB CF8 CF8M

The valve material: WCB CF8 CF8M

The seat material: EPDM NBR FPM

Stem material: 304

Sealing ring material: NBR

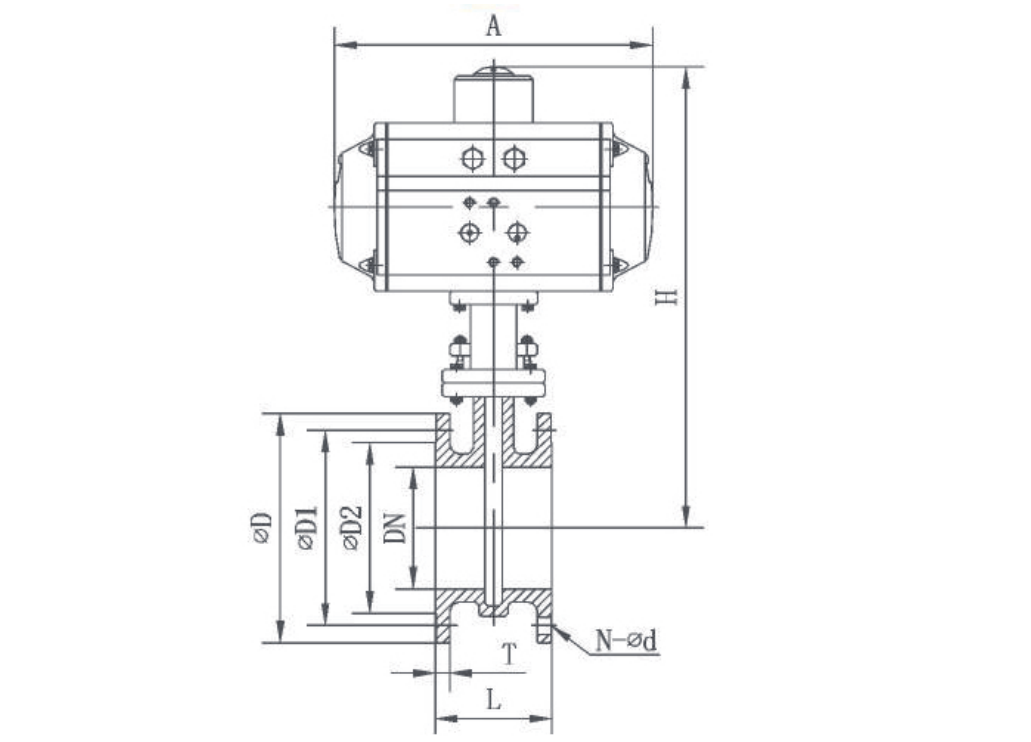

Drawing

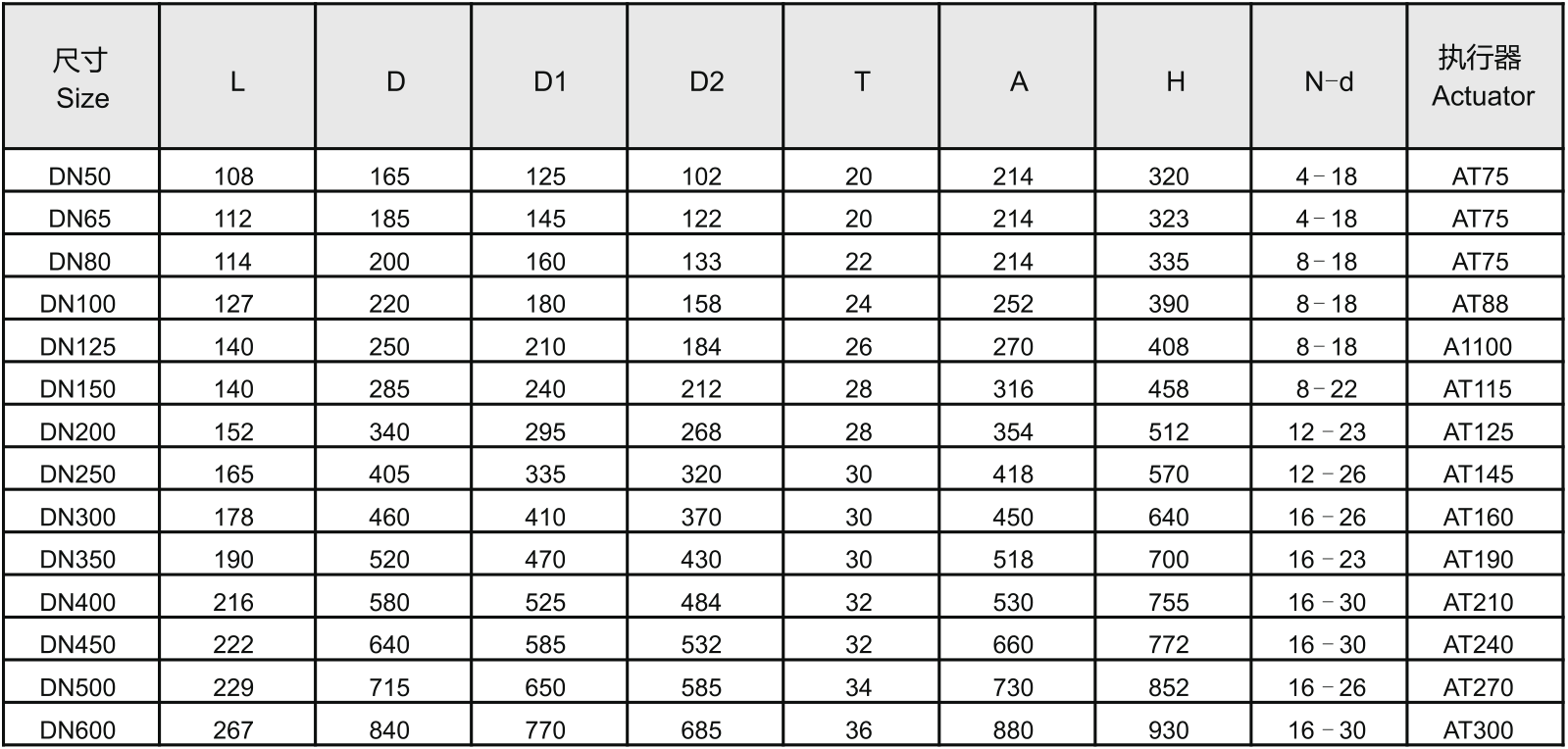

Specification table

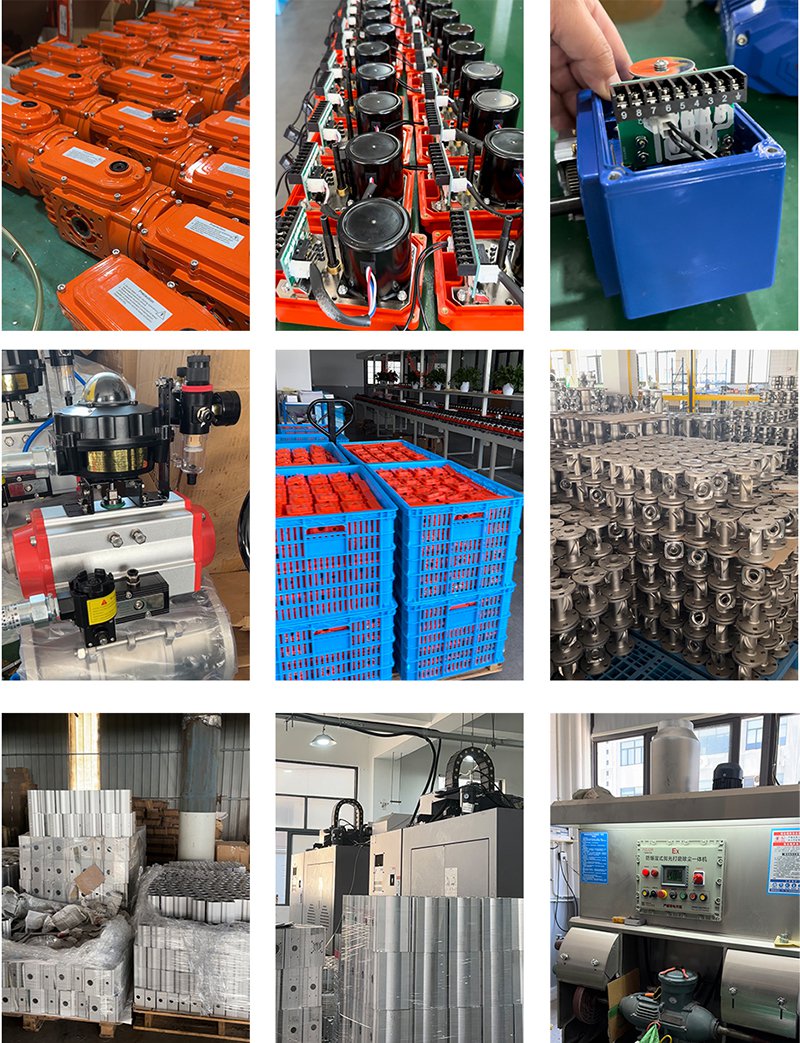

Workshop show
