• Pneumatic Wafer Type Butterfly Valve

Pneumatic Wafer Type Butterfly Valve

Model

    Pressure:0~ 1.6 MPa Port size:DN40-DN300

Description

Pneumatic Wafer Type Butterfly Valve

Basic parameters

Medium temperature: - 20°C~ + 180°C

Ambient temperature: - 20°C~ +60°C

Nominal pressure: 0~ 1.6 Mpa

Air pressure: 0.3 ~ 0.8 Mpa

Specification: DN40-DN300

The valve body material: WCB CF8 CF8M

seat material: EPDM NBR FPM PTFE

Stem material:SS304

Sealing ring material: NBR

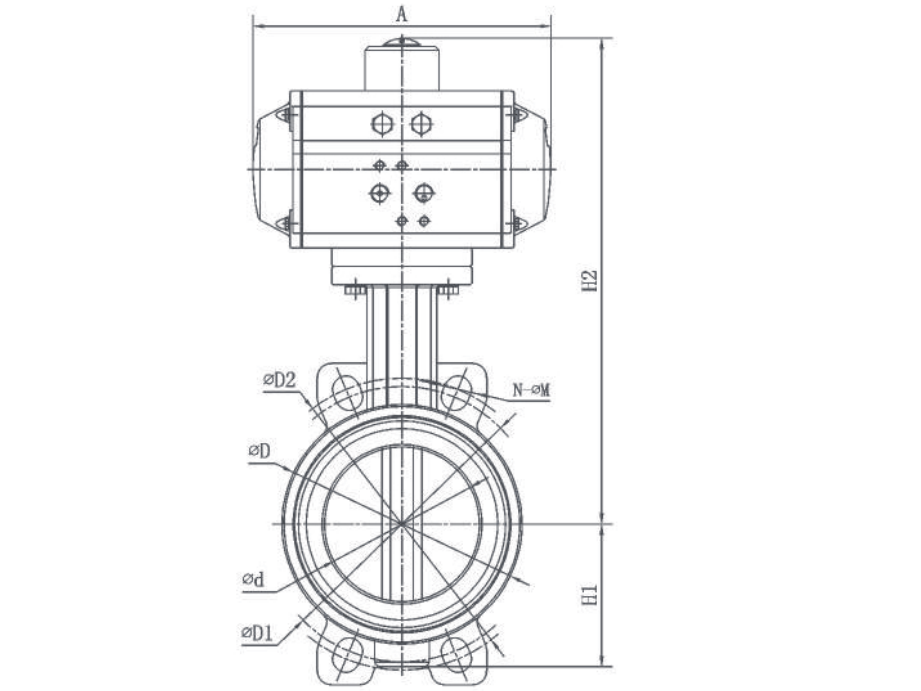

Drawing


Specification table

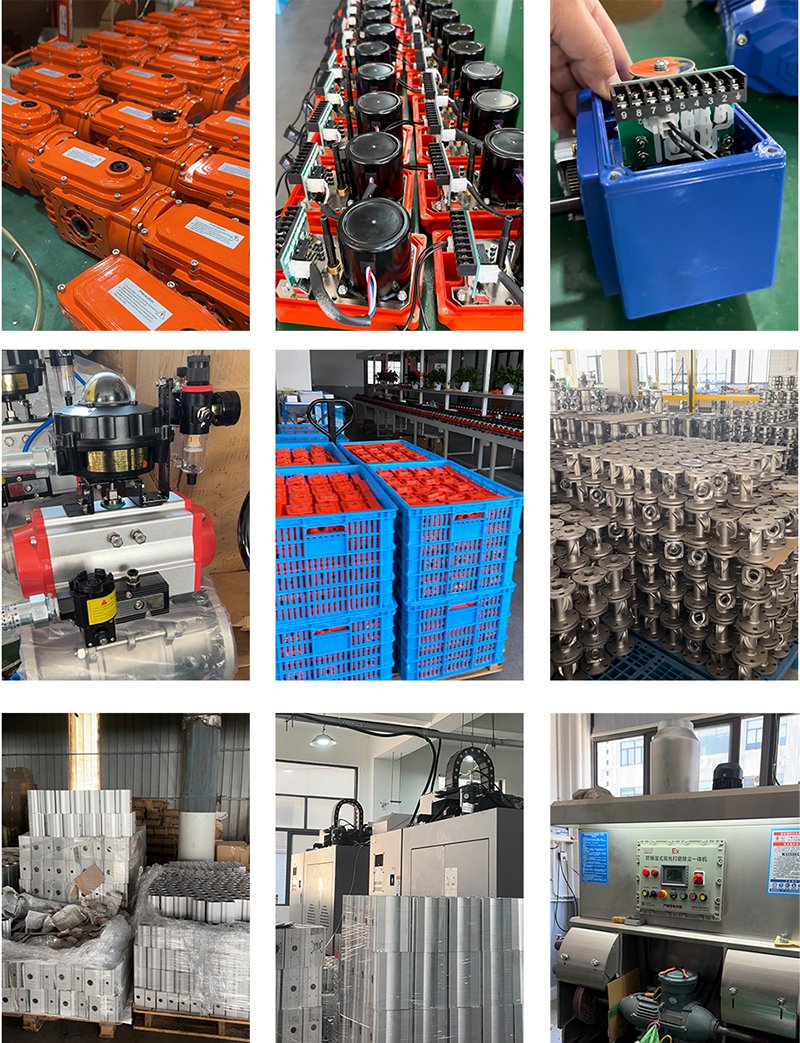

Workshop show
