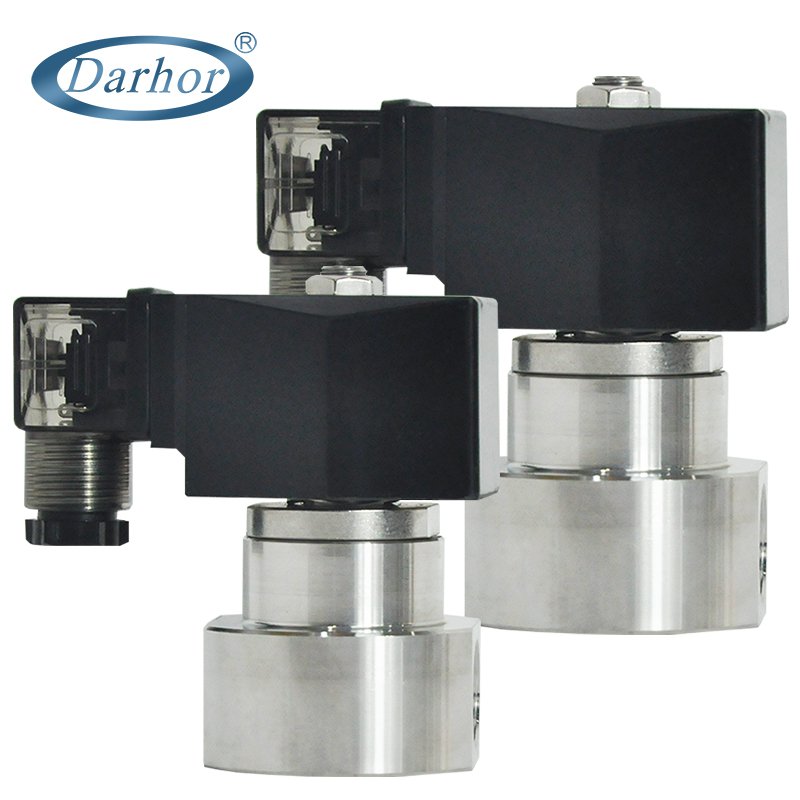

DHLG 2 way high pressure SS solenoid valve

Model

  • Temperature: 0 ℃ ~ 110 ℃
  • Working pressure: 0 ~ 100bar
  • Body material: SS304
  • Port size: 1/8 ~ 1/2"

Description

DHLG 2 way high pressure SS solenoid valve

Basic parameters

Medium:water.liquid.air

Medium temperature:0-110C

Working pressure:0-100bar

Working type: Direct acting(NC)

Valve body material:SS304

Sealing material:PTFE

Interface:G thread,NPT thread,flange

Working Voltage:AC220V1230V1240V/110V124V50HZ/60HZ DC24V IP65 H degree


Options:

Sealing material:VITON(-10~120℃)EPDM(-10~120℃)

Drawing

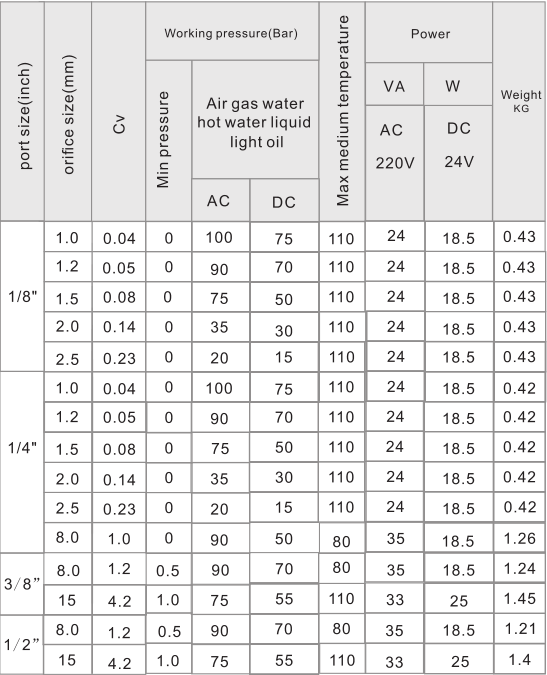

Specification table


Workshop show
