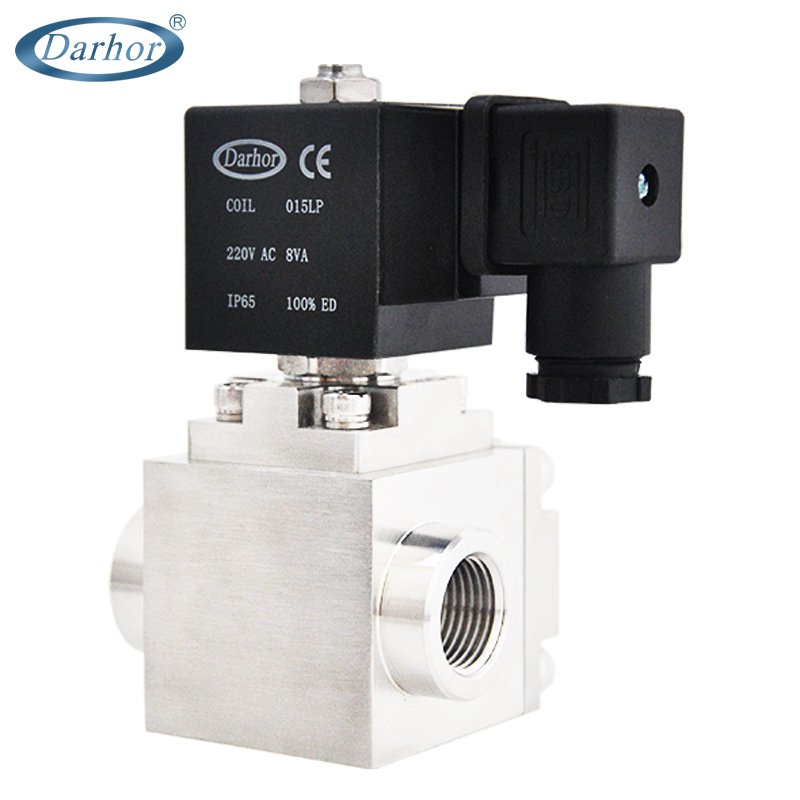

DHSE 2 way high pressure SS solenoid valve

Model

  • Temperature: ﹣5 ℃ ~ 80 ℃
  • Working pressure: 0 ~ 300bar
  • Body material: SS304
  • Port size: 1/8 ~ 1"

Description

DHSE 2 way high pressure SS solenoid valve

Basic parameters

Medium:water.liquid.air

Medium temperature:-5~80'C

Working pressure:0-300bar

Working type:DN1~5:directly acting DN10~25:pilot operatednormalclose or mormal open

Valve body material:SS304

Interface:Gthread,flange connection

Sealing material:PTFE

Interface:G thread.NPT tread

Working Voltage:AC220V1230V1240V/110V124V 50HZ/60HZ DC24V/12V F degreelP54

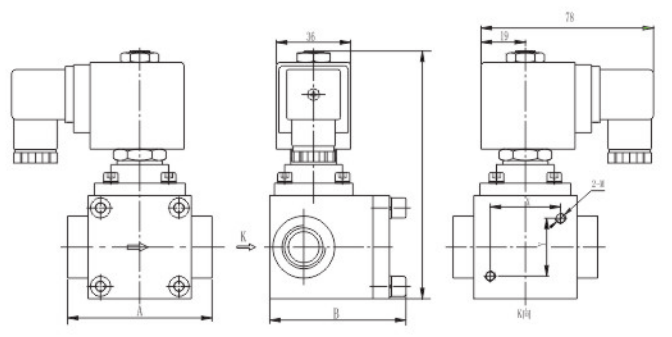

Drawing

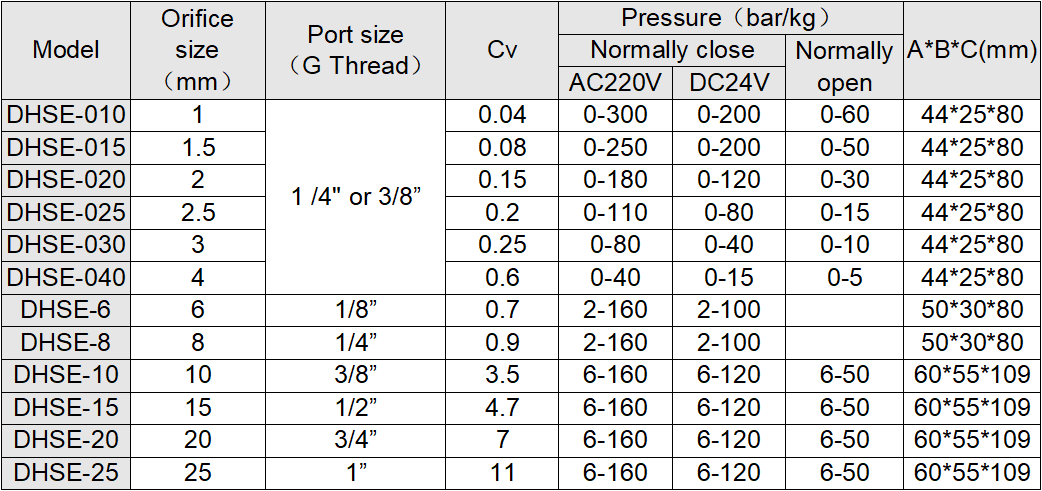

Specification table


Workshop show
