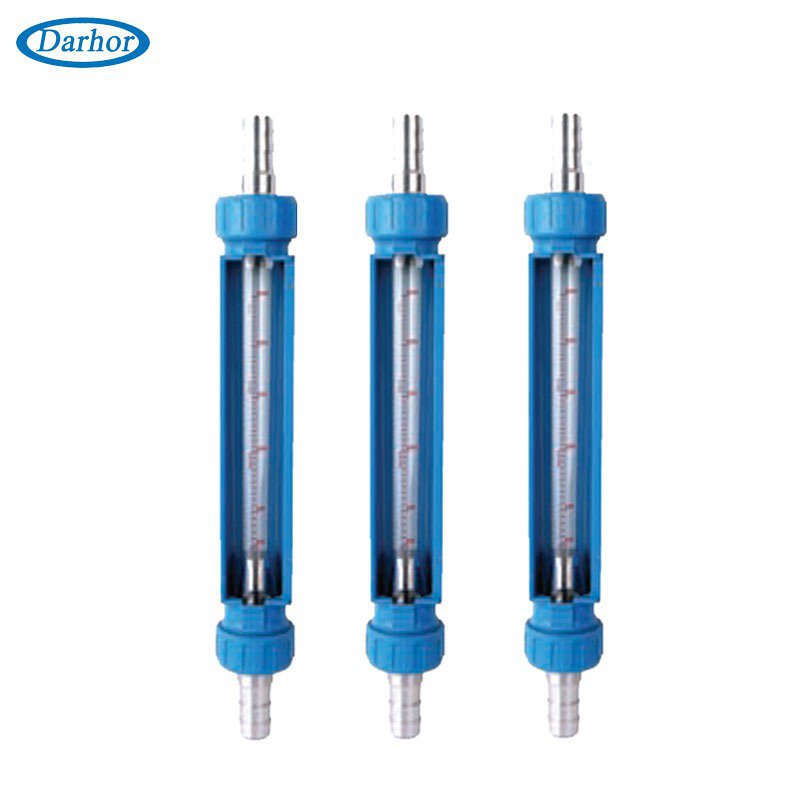

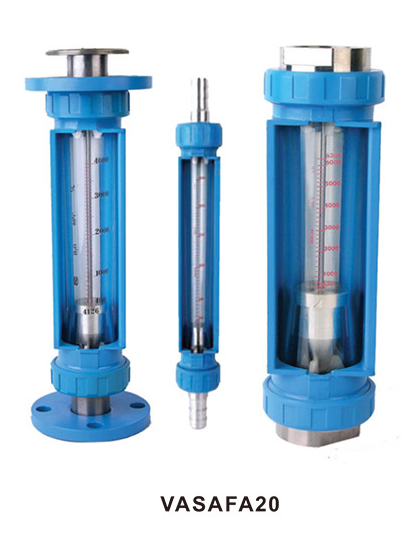

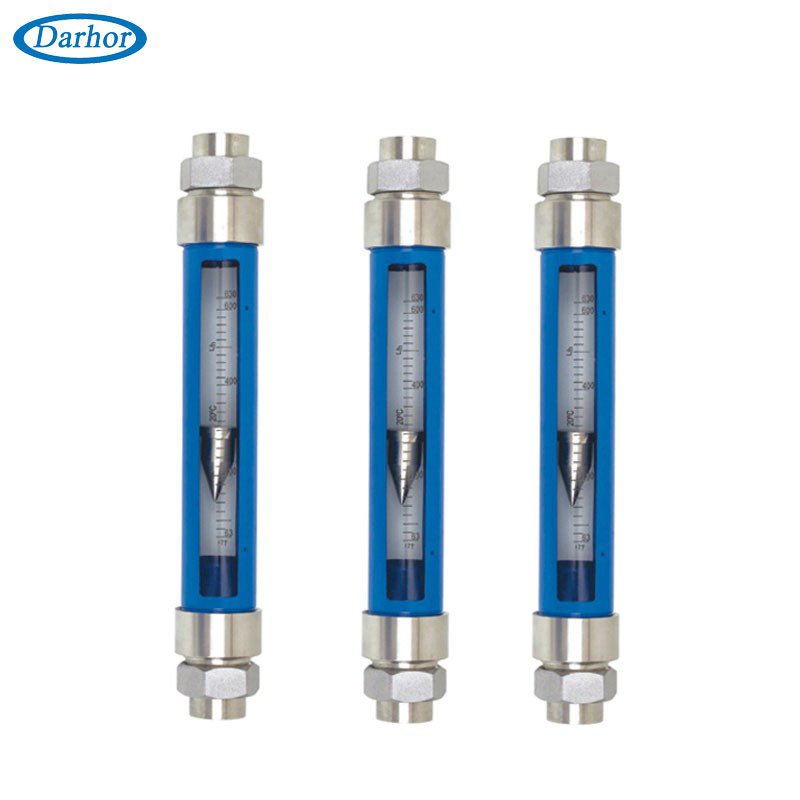

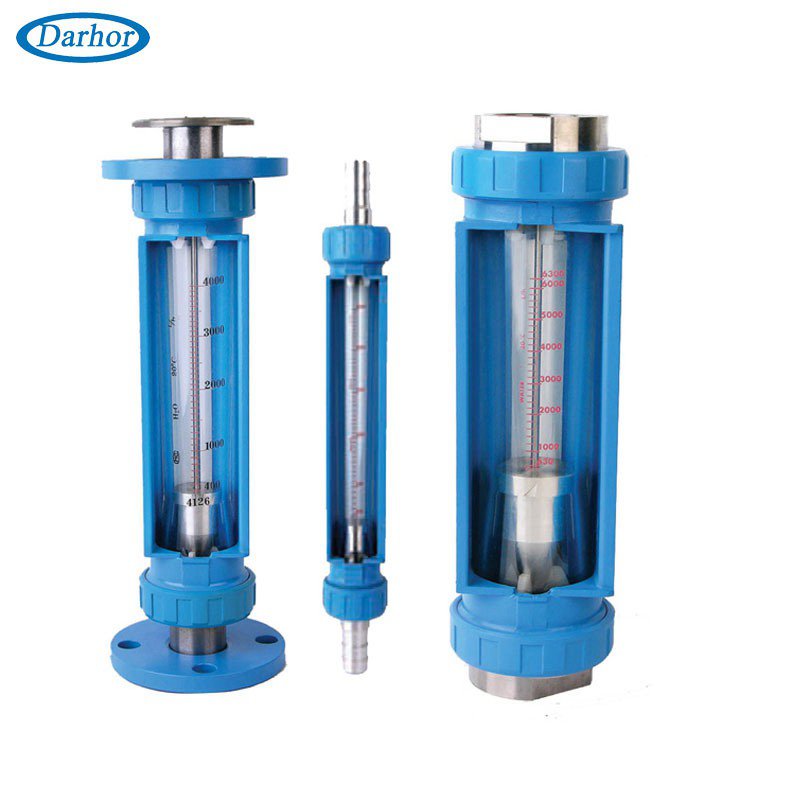

VA / SA / FA series glass tube flow meter
This is a highly accurate glass rotameter with diversified joints and various options of scalings from percentage.
VA10 and VA20 have screw connection.
SA10 and SA20 have hose connection.
FA10 and FA20 have movable flange connection.
Model
- Medium: Gas, Liquid
- Connection: Screw Connection, Hose Connection, Flange Connection
- Accuracy: 1.5%
- Installation: Vertical Pipeline Installation
Description
VA / SA / FA series glass tube flow meter
This is a highly accurate glass rotameter with diversified joints and various options of scalings from percentage.
VA10 and VA20 have screw connection.
SA10 and SA20 have hose connection.
FA10 and FA20 have movable flange connection.

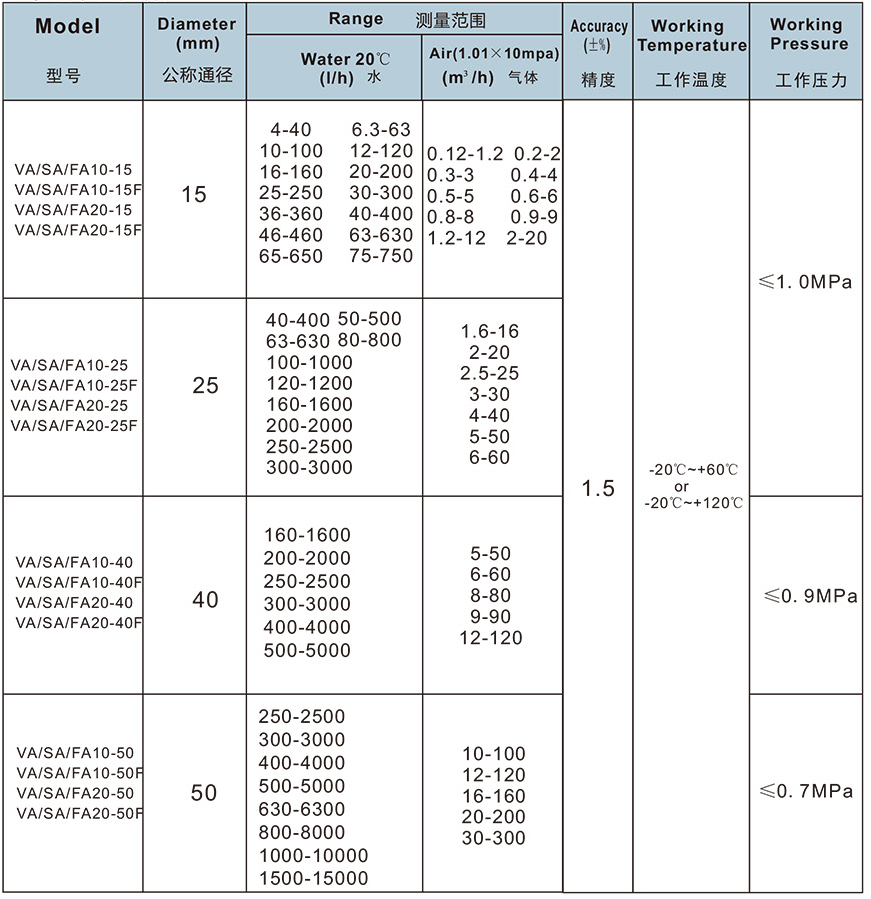

Basic parameters
Medium: Gas, Liquid
Connection: Screw Connection, Hose Connection, Flange Connection
Accuracy: 1.5%
Installation: Vertical Pipeline Installation

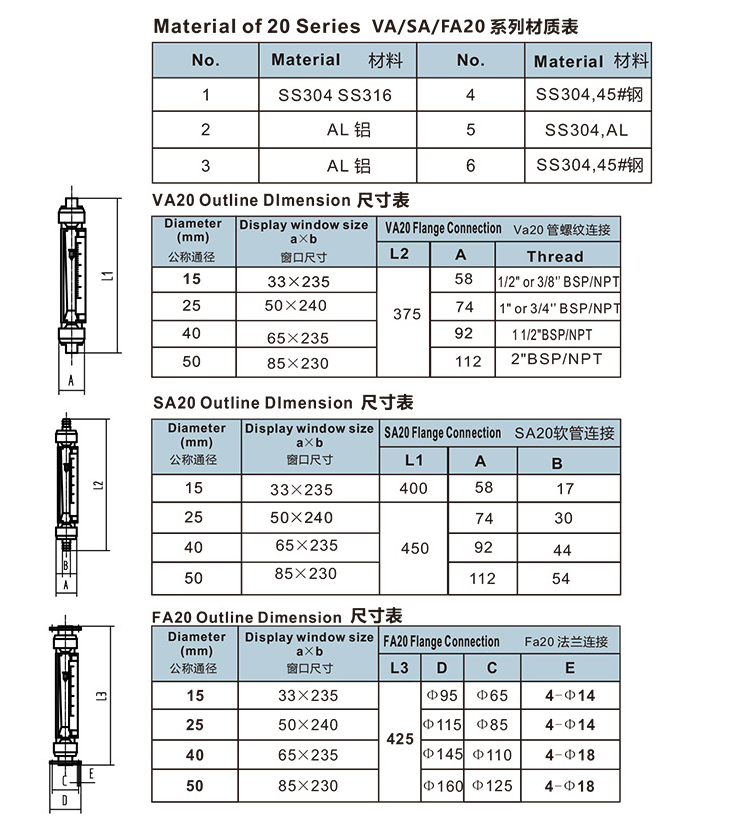

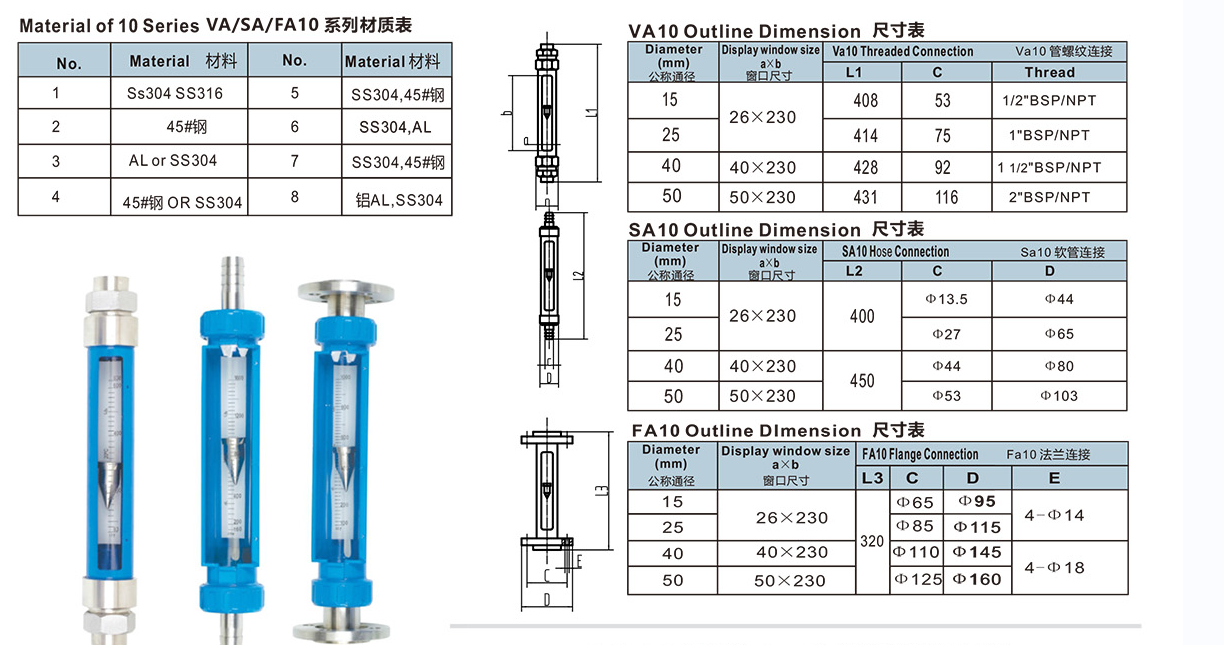

Overall Dimension
