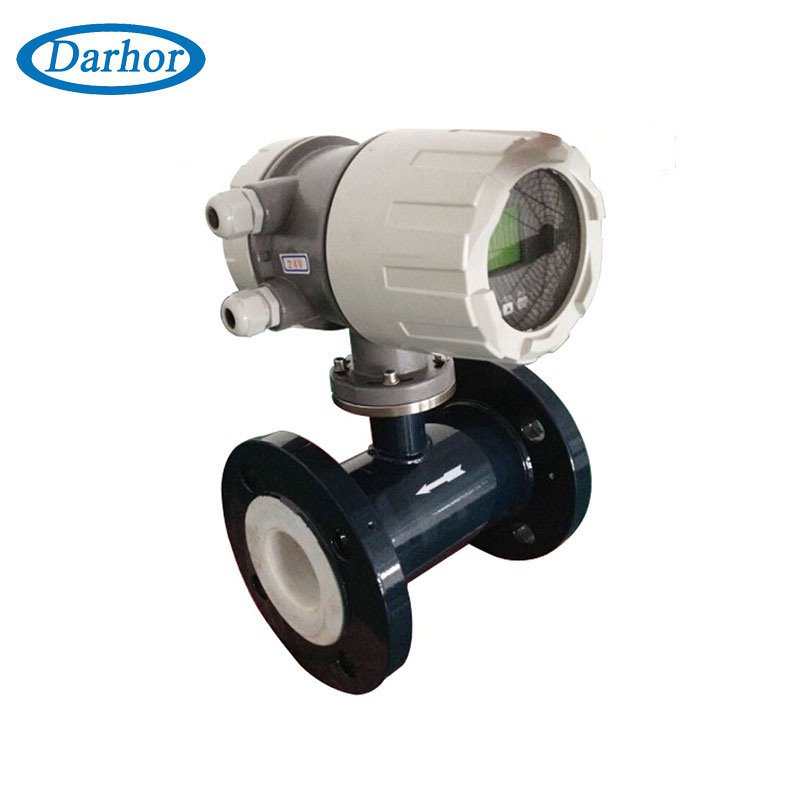

DH1000 high sensitivity electromagnetic flow meter
DH1000, High accuracy of ±0.2%，±0.5%，low power consumption, stable zero point, easy parameter setting, total and instantaneous flowrate, velocity and percentage of flowrate. Two-direction measurement for forward and reverse.
Not effected by the change of the fluid condition such as density、viscosity、temperature、pressure and conductivity, and the signal output of inductive voltage is linear to average velocity.
Model
- Medium: Conductive Liquid, Slurry
- Accuracy: 0.2%, 0.5%
- Size:DN15mm--DN2000
Description
DH1000 high sensitivity electromagnetic flow meter
DH1000, High accuracy of ±0.2%，±0.5%，low power consumption, stable zero point, easy parameter setting, total and instantaneous flowrate, velocity and percentage of flowrate. Two-direction measurement for forward and reverse.
Not effected by the change of the fluid condition such as density、viscosity、temperature、pressure and conductivity, and the signal output of inductive voltage is linear to average velocity.
Basic parameters
Medium: Conductive Liquid, Slurry
Accuracy: 0.2%, 0.5%
Size:DN15mm--DN2000
Display: Displaying Flow, totalizer and the velocity of flow with back light
Protection Grade: IP65/IP67/IP68
Electrode material: 316L, Pt, HB, HC
Electrode type: Standard, blade, removable

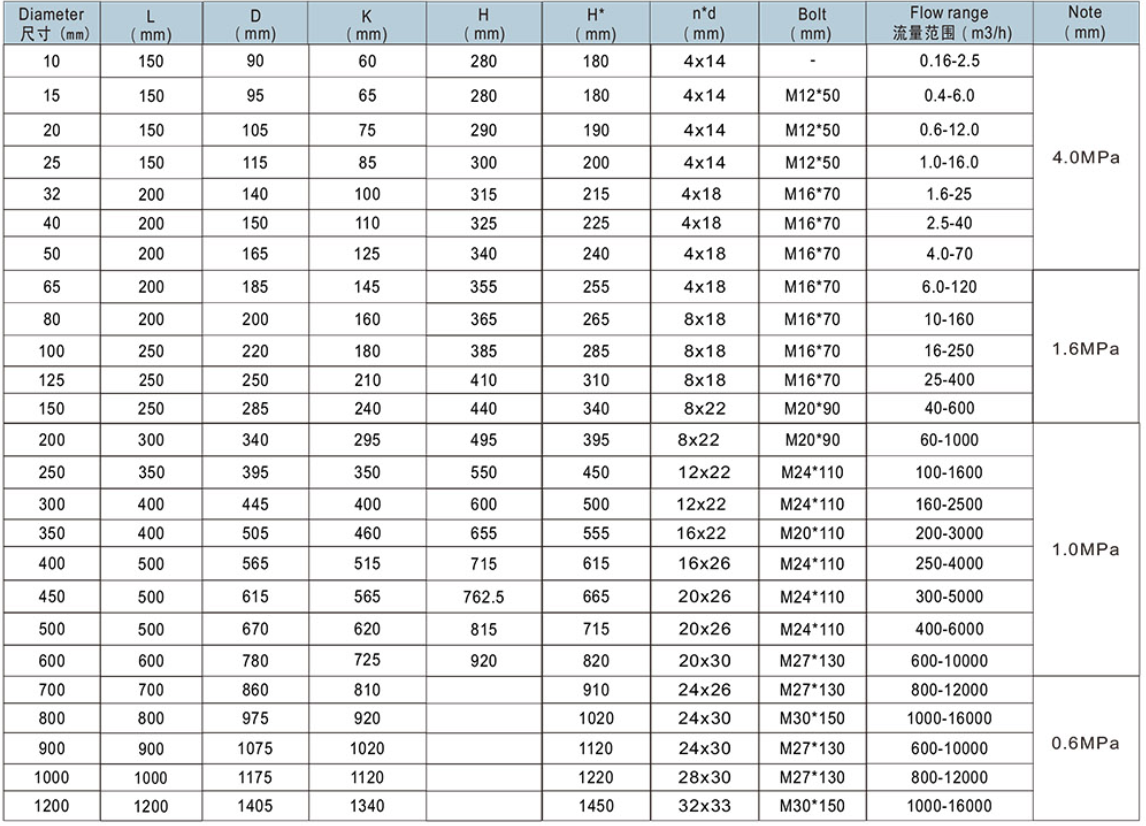

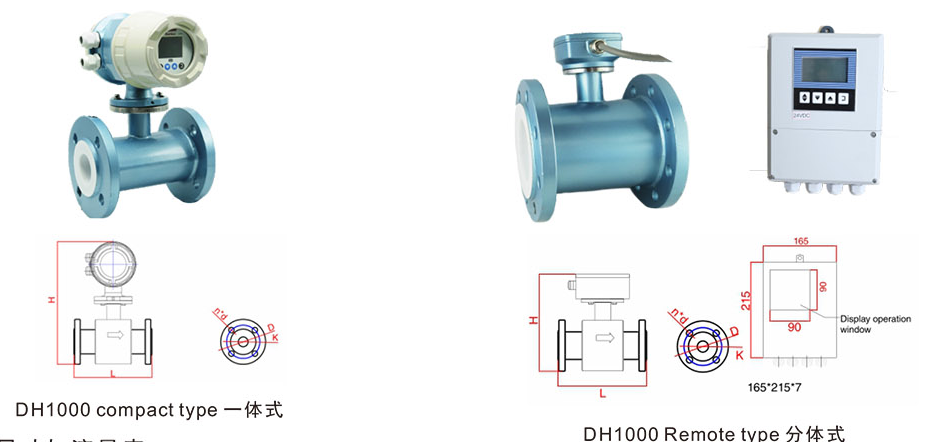

Overall Dimension

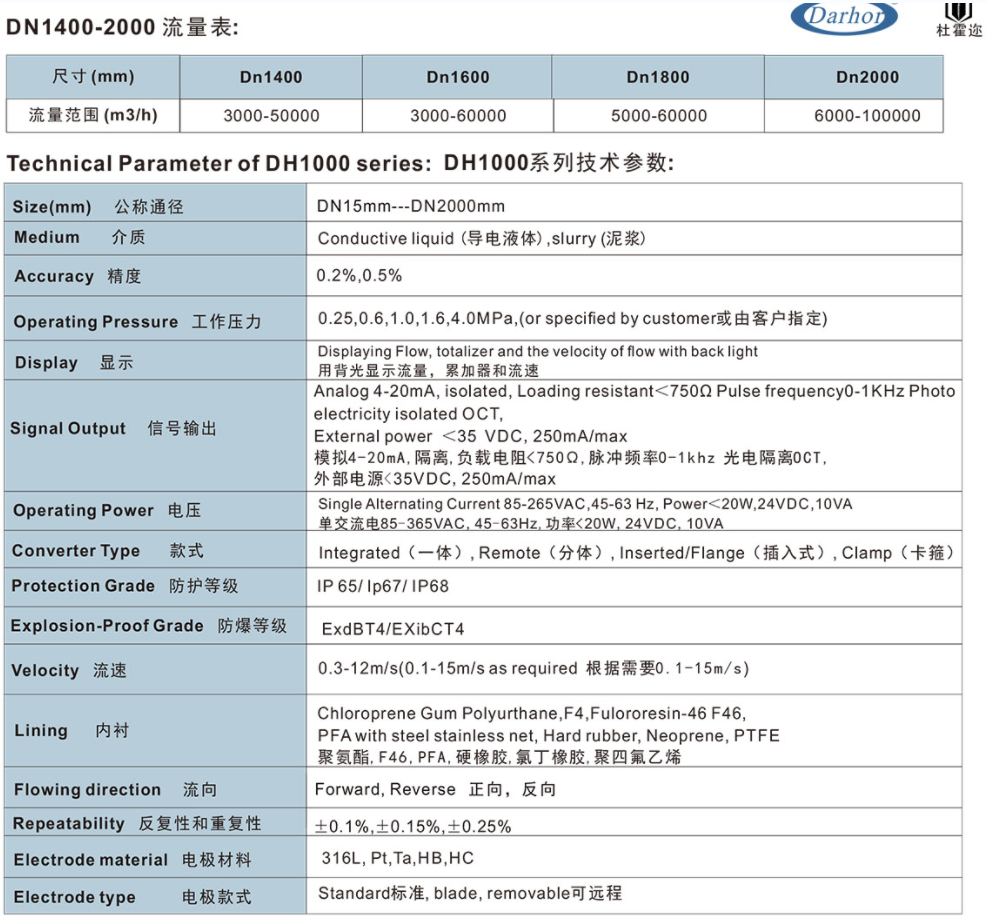

Technical Parameter
