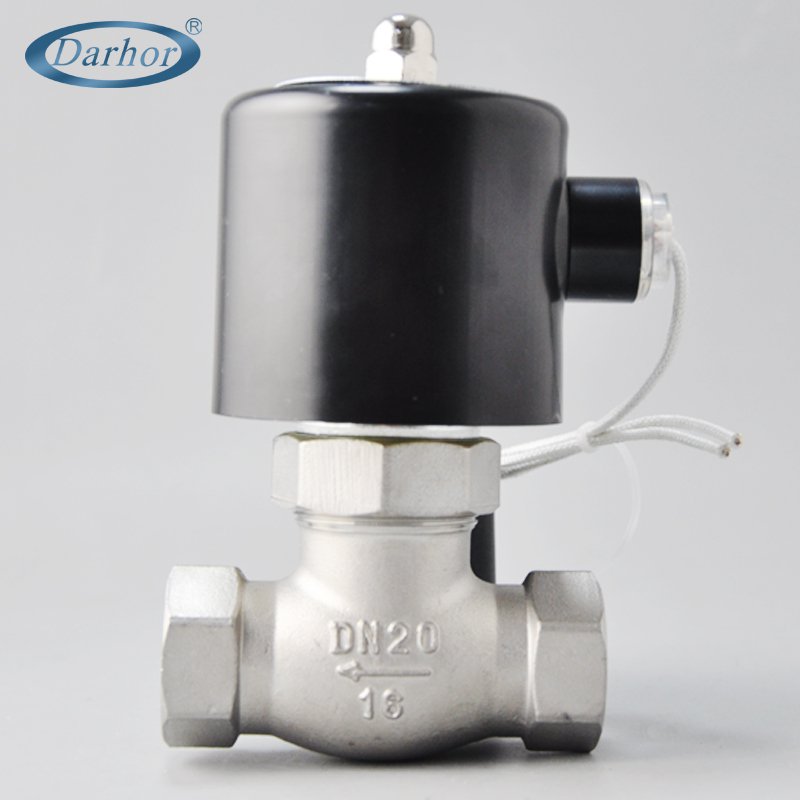

ZQDF 2 way piston steam SS304 solenoid valve

Model

  • Temperature: ﹣5 ℃ ~ 180 ℃
  • Working pressure: 1 ~ 16bar
  • Body material: SS304
  • Port size: 1/2 ~ 2"

Description

ZQDF 2 way piston steam brass solenoid valve

Basic parameters

Medium: steam，hot water, high temperature liquid

Medium temperature: -5~180C

Working pressure: 1-16bar

Working type: semi direct acting type(NC)

Valve body material: Cast Brass

Sealing material: PTFE

Interface: G thread, NPT thread

Working Voltage:AC220V/230V/240V/110V/24V 50HZ/60HZ DC24V/12V F degree

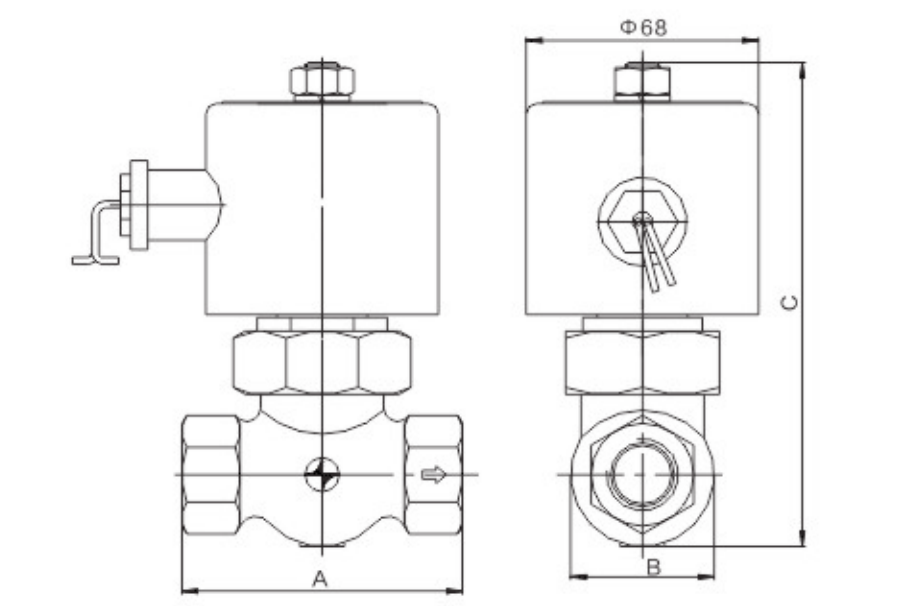

Drawing

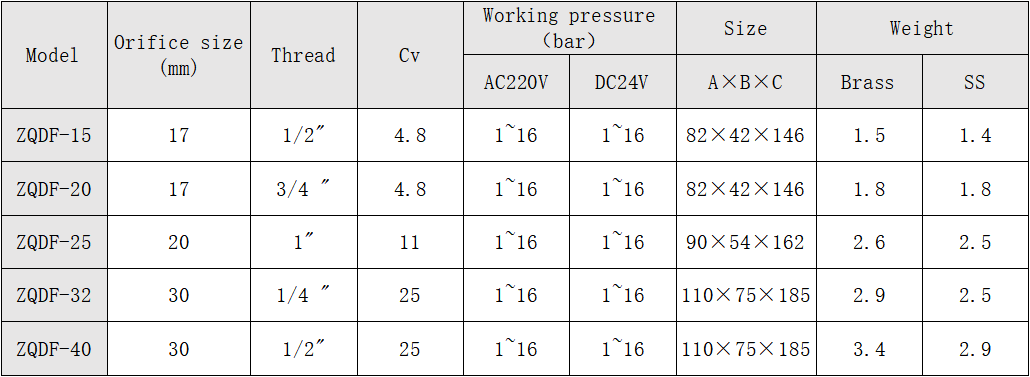

Specification table

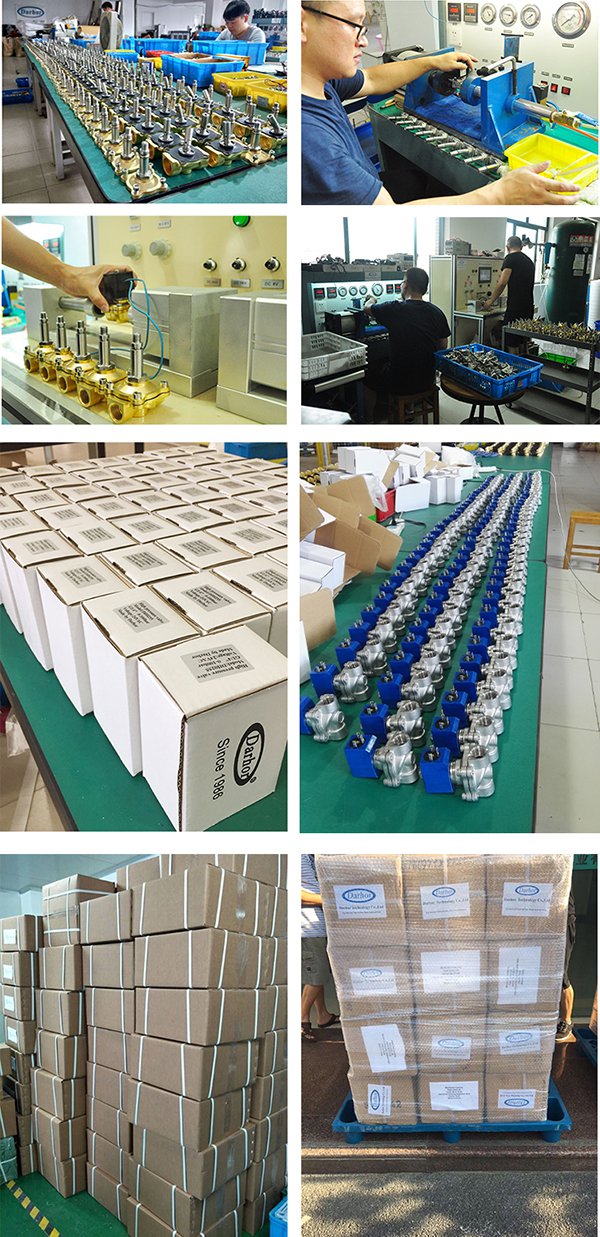

Workshop show
