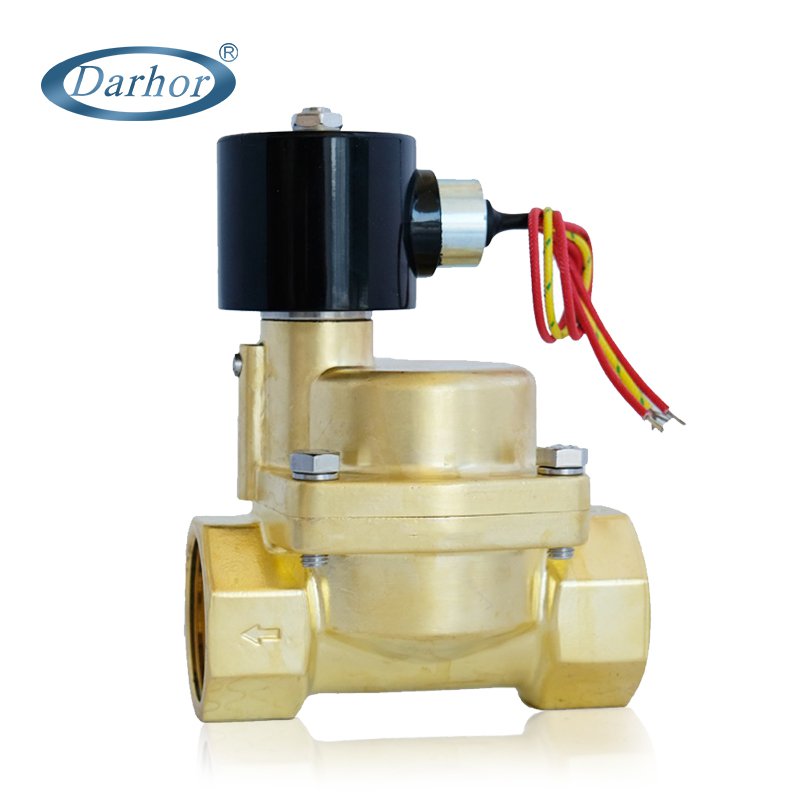

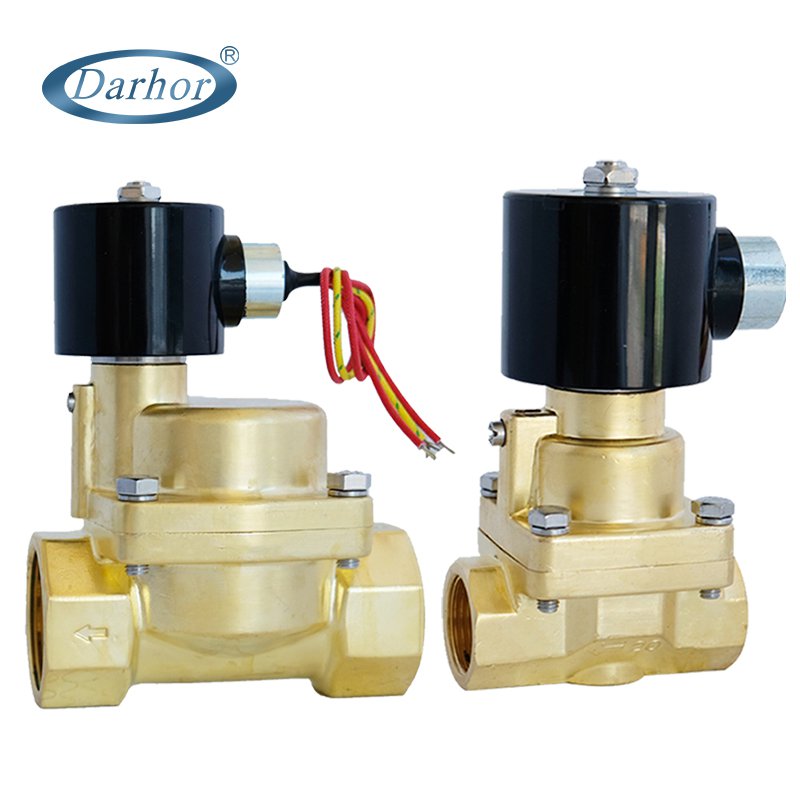

DHP11 2 way piston steam brass solenoid valve

Model

  • Temperature: 0 ℃ ~ 180 ℃
  • Working pressure: 0.1 ~ 16bar
  • Body material: brass
    • Port size: 1/4 ~ 2"

Description

DHP11 2 way piston steam brass solenoid valve

Basic parameters

Medium: steam , hot water, high temperature liquid

Medium temperature:0-180C

Working pressure:0. 1-16bar

Working type: pilot operated type(NC，NO)

Valve body material: brass, SS304

Sealing material: PTFE

Interface: G thread, NPT thread

Working Voltage:AC220V/230V/240V/110V/24V 50HZ/60HZ DC24V/12V IP65 F degree

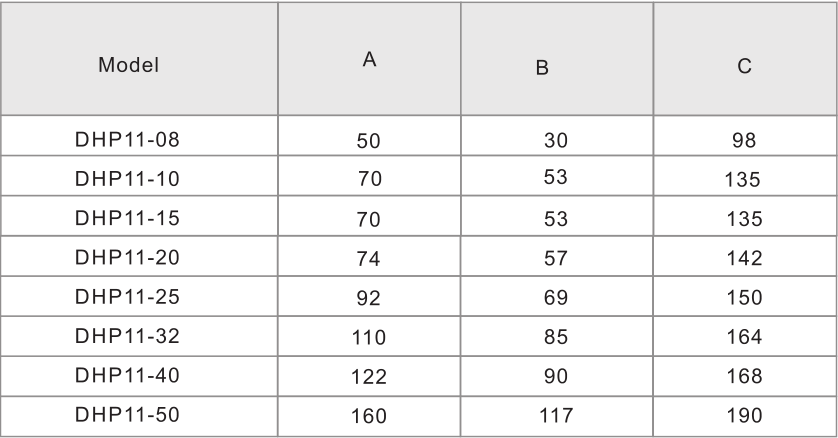

Drawing

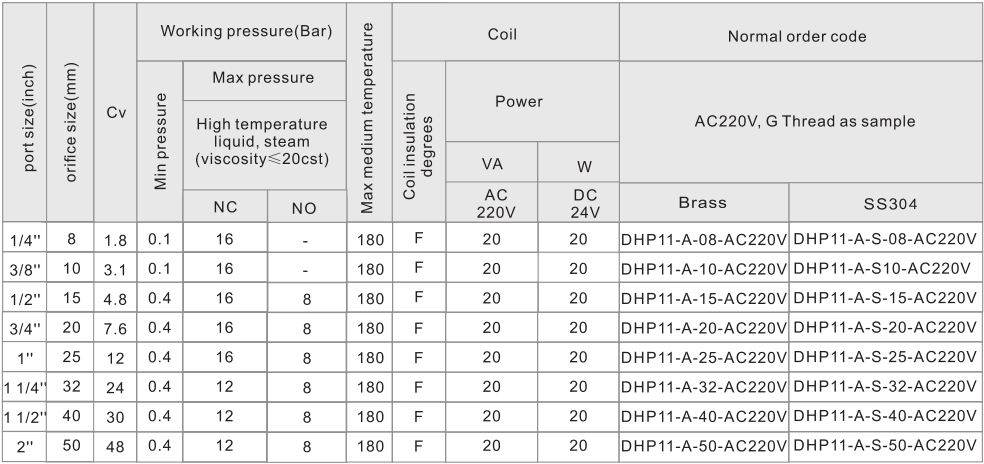

Specification table

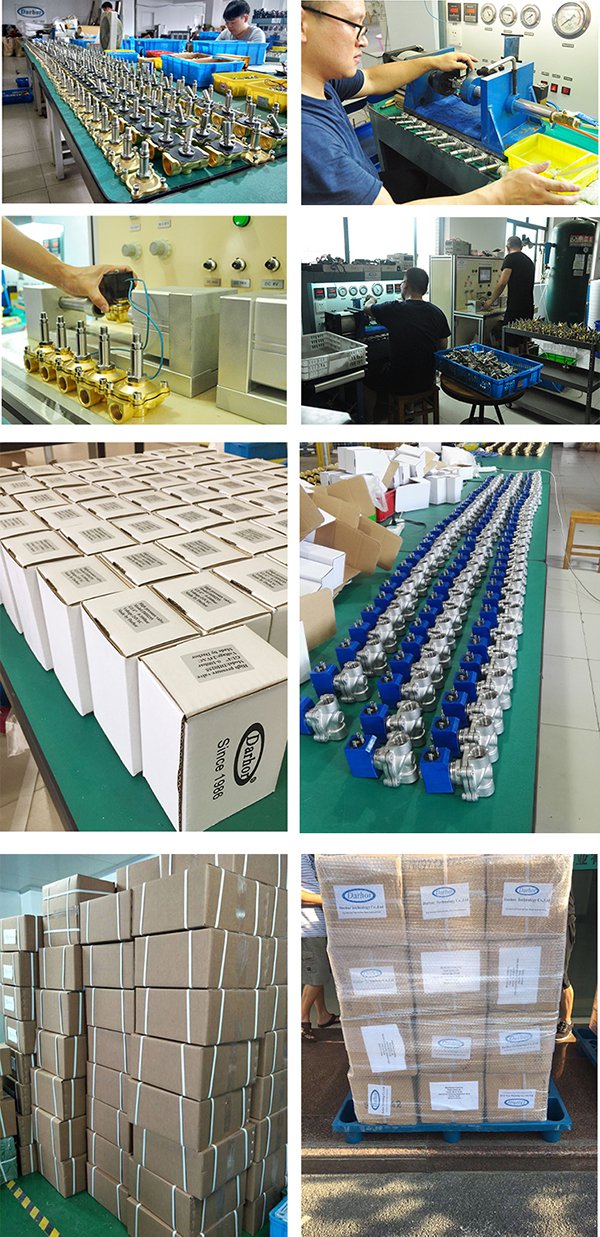

Workshop show
