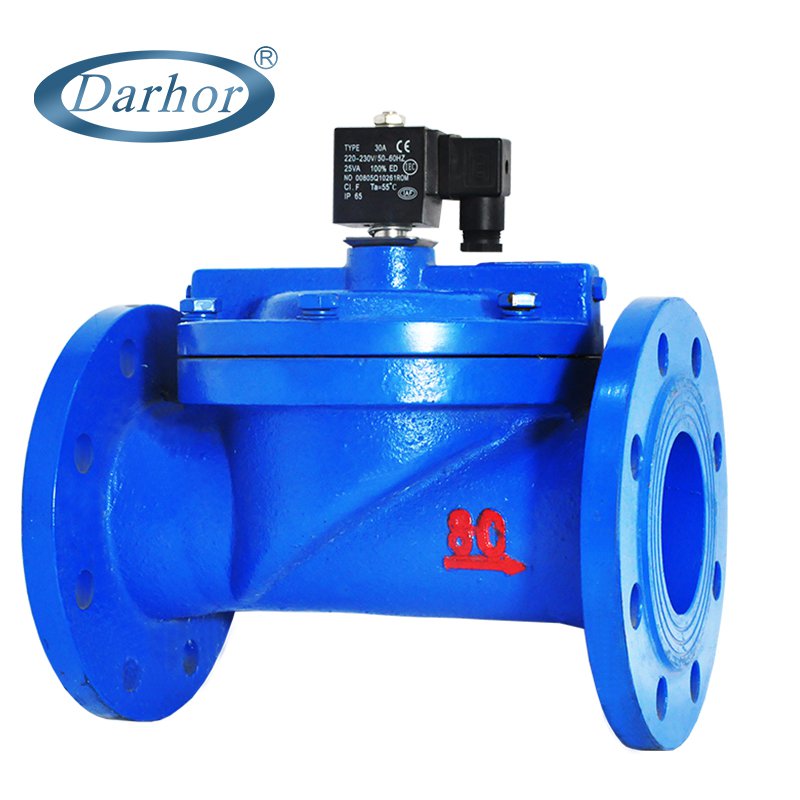

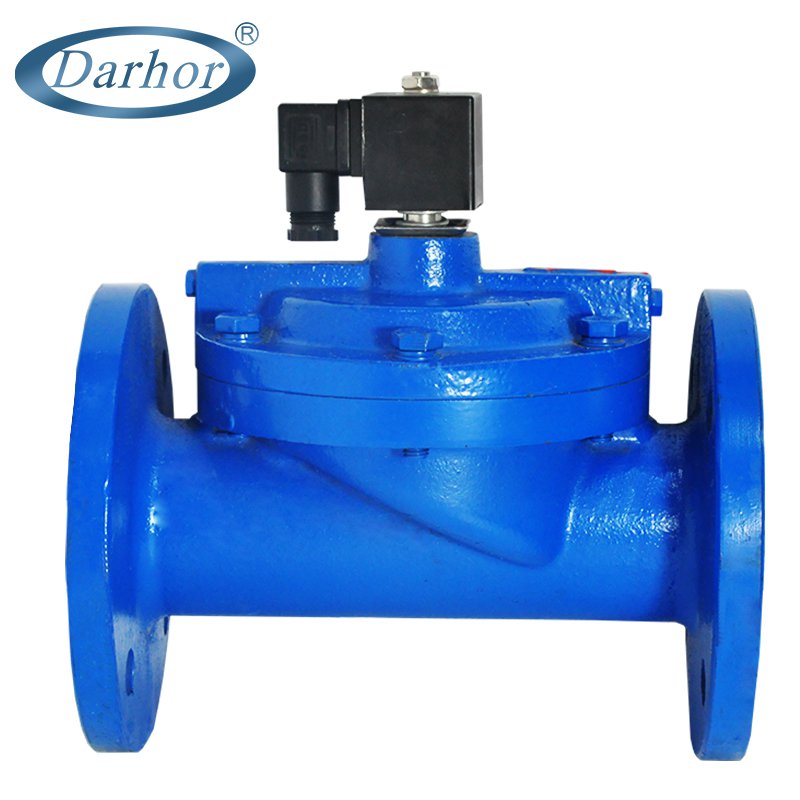

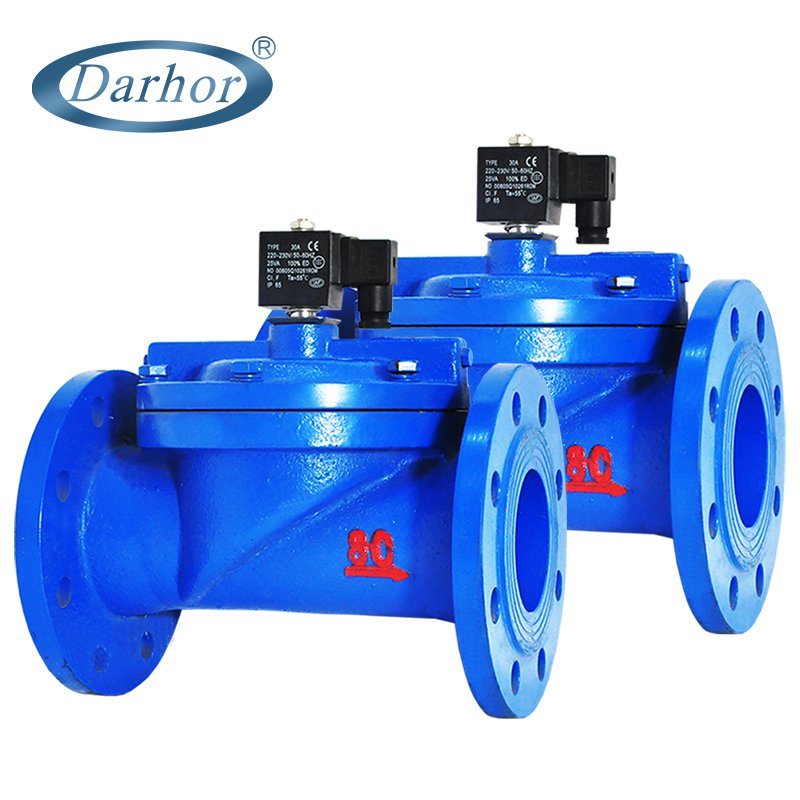

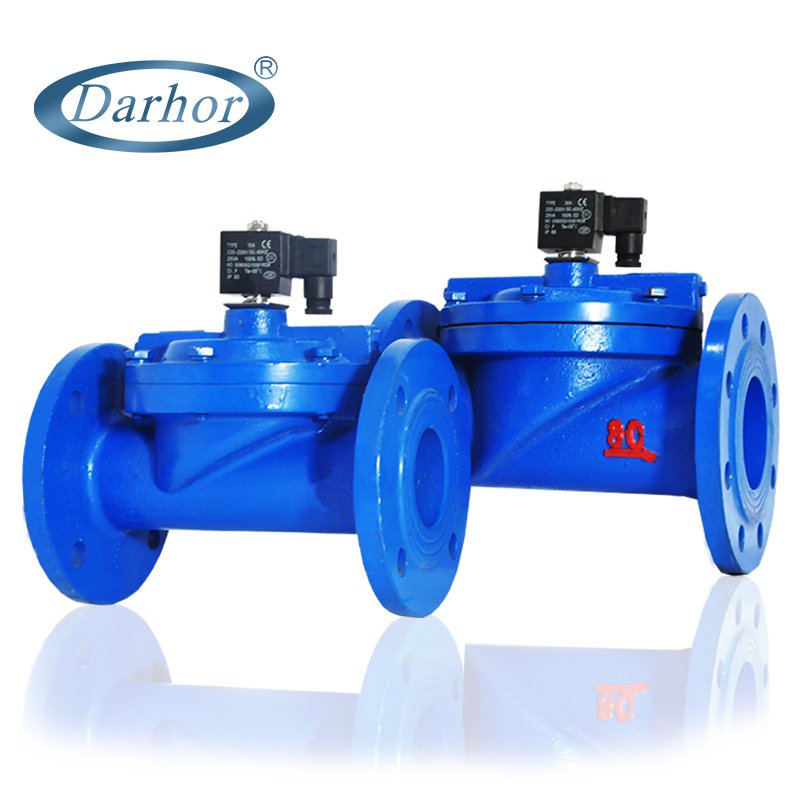

DF flange 2 way pilot operated solenoid valve

Model

  • Temperature: ﹣5 ℃ ~ 80 ℃
  • Working pressure: 0.3 ~ 12bar
  • Body material: brass, SS304, cast iron
  • Orifice size: DN25~DN200

Description

DF flange 2 way pilot operated solenoid valve

Basic parameters

Medium: water.liquid.air.light oil (viscosity<20cst)

Mediumtemperature :-5-80℃

Working pressure :0.3-12bar

Working type: pilot operated type(NC)

Valve body material: brass,SS304,cast iron

Sealing material: NBR

Interface:Flanged

Working Voltage:AC220V230V1240V1110V124V 50HZ/60HZ DC24V112VIP65 F degree


Options:

Sealing material:VITON(-10-120℃)EPDM(-10~120℃)

LP series low power energy saving coil

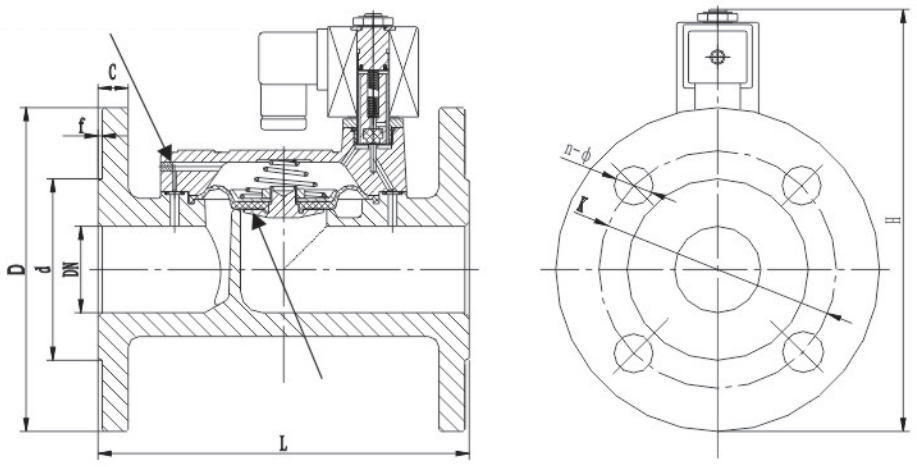

Drawing

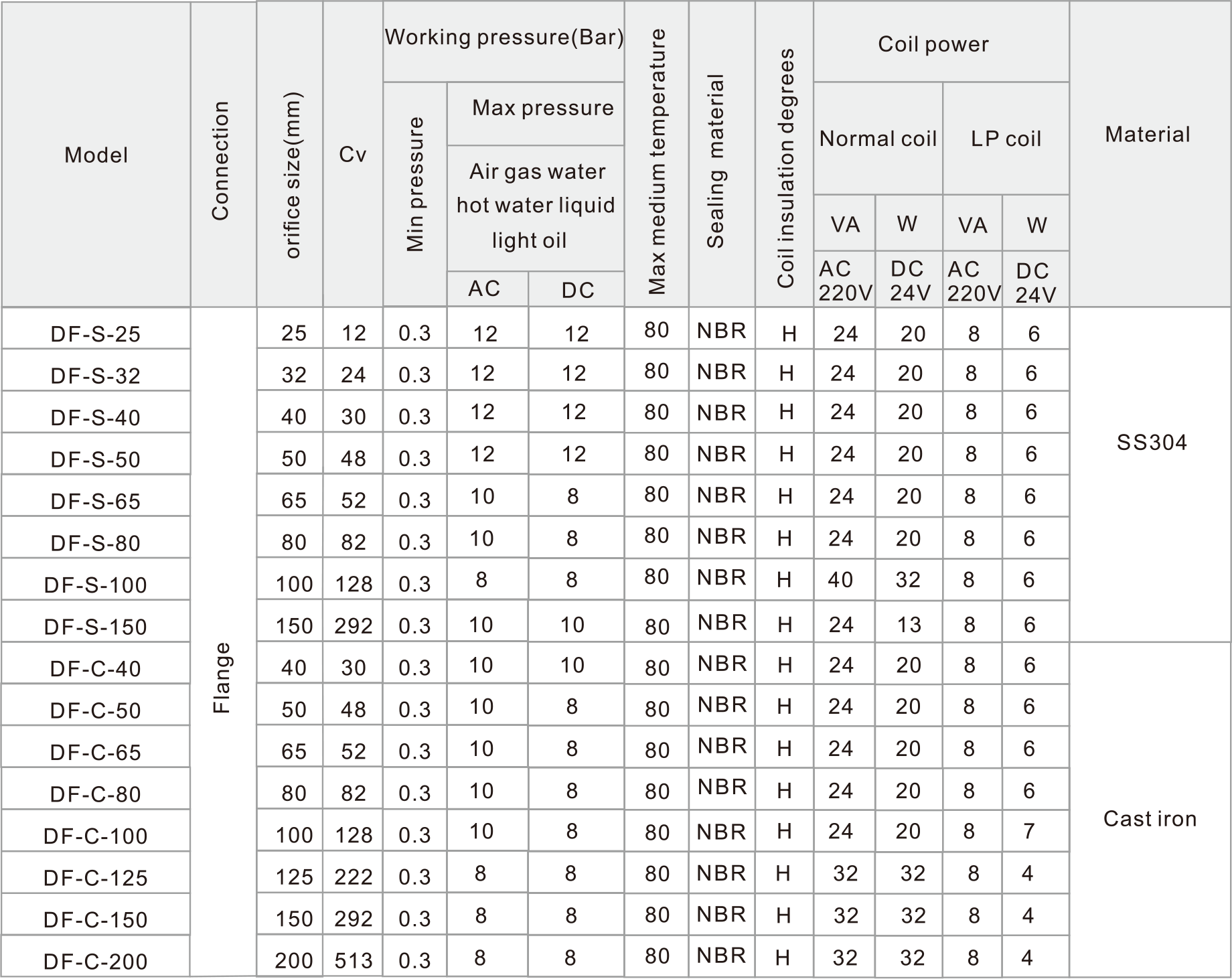

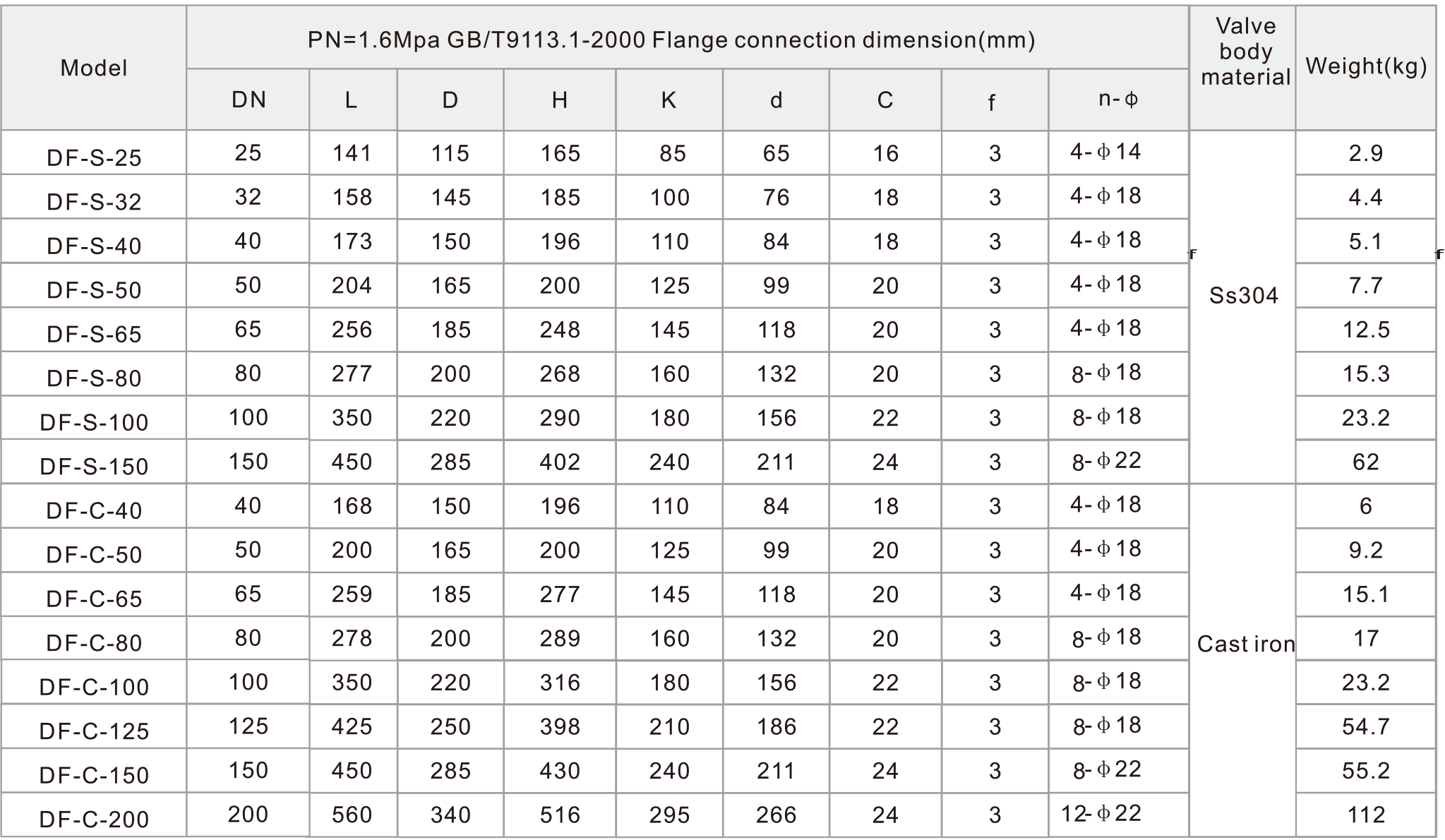

Specification table

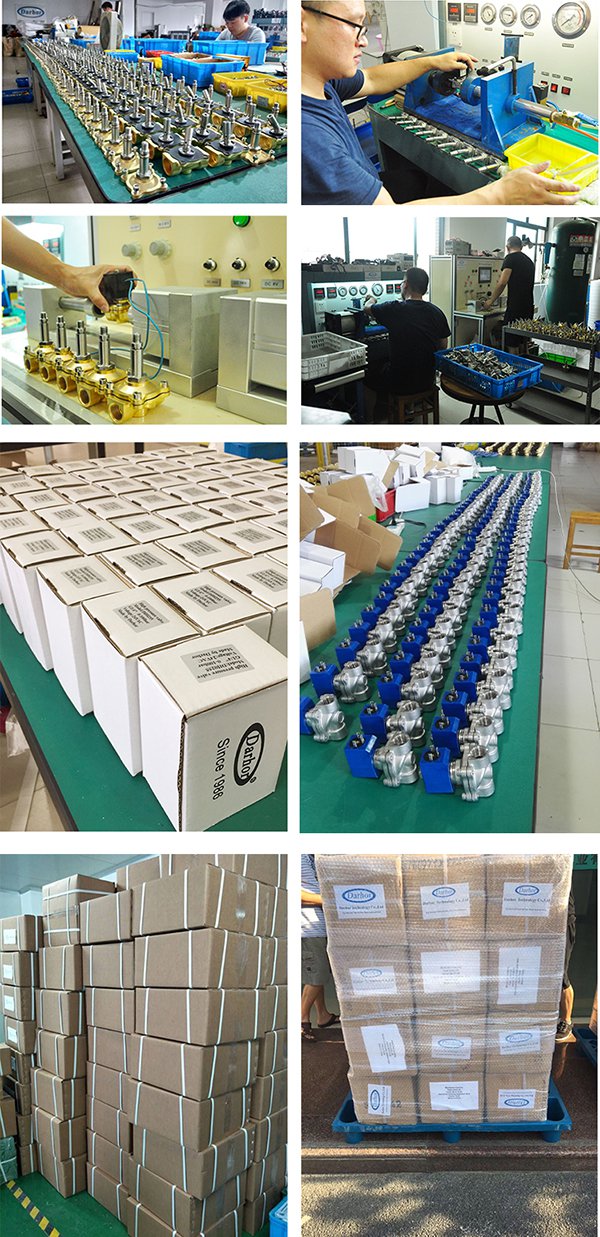

Workshop show
