DW11 2 way direct acting SS solenoid valve

Model

  • Temperature: ﹣5 ℃ ~ 80 ℃
  • Working pressure: 0 ~ 10bar
  • Body material: SS304, SS316
  • Port size: 1/8 ~ 2"

Description

DW11 2 way direct acting SS solenoid valve

Basic parameters

Medium:water.liquid. air.light oil (viscosity≤ 20cst)

Medium temperature : -5~120°C

Working pressure: 0- 10 bar

Working type:directly acting(NC)

Valve body material:brass, SS304

Sealing material:NBR

Interface:G thread,NPT thread

Working Voltage : AC220V/230V/240V/110V/24V 50HZ/60HZ DC24V/12V IP65 F degree


Options :

Sealing material:VITON(-10~120C) EPDM(-10~120"C)

LP series low power energy saving coil

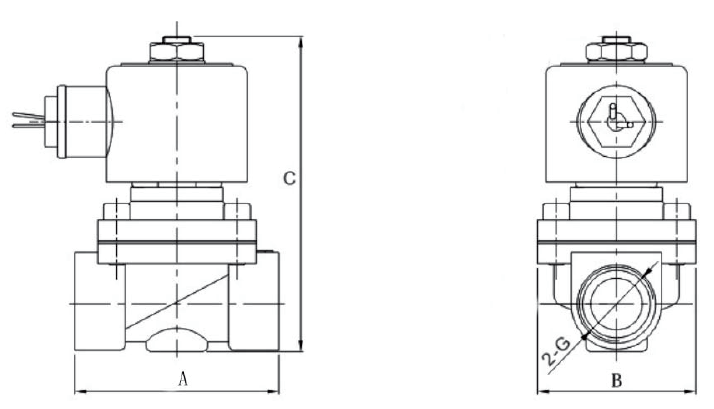

Drawing

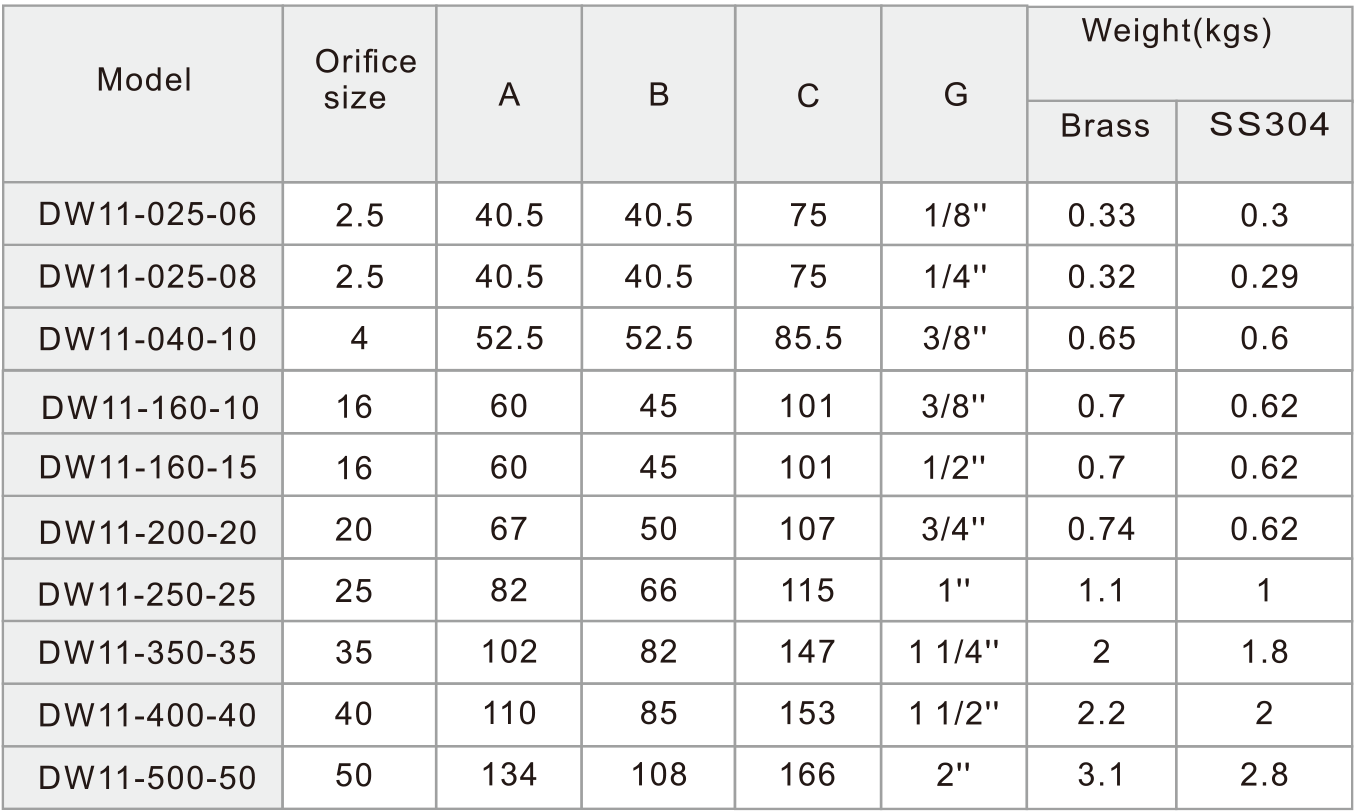

Specification table


Workshop show
