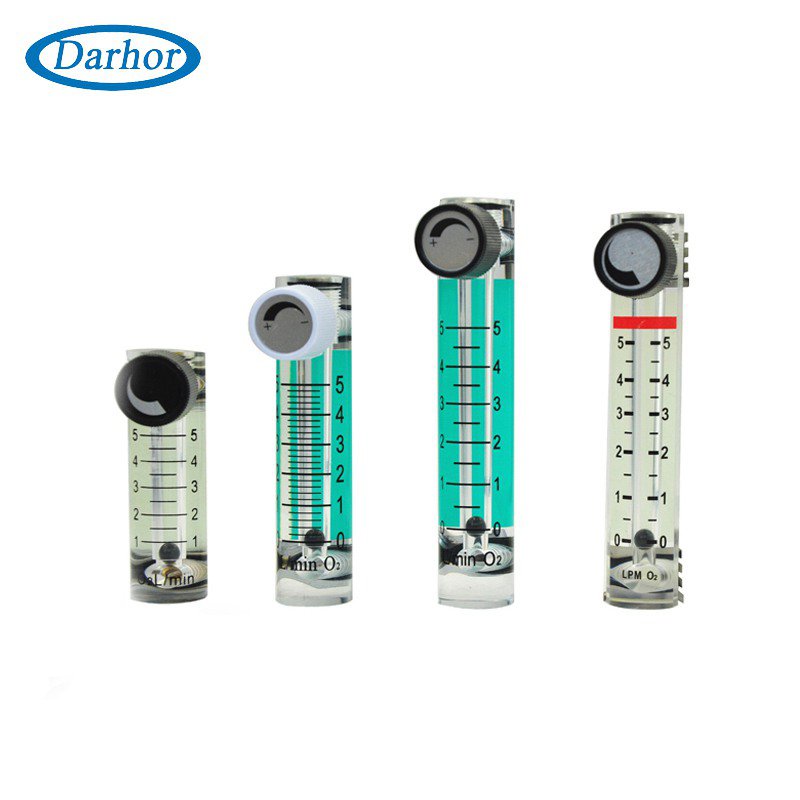

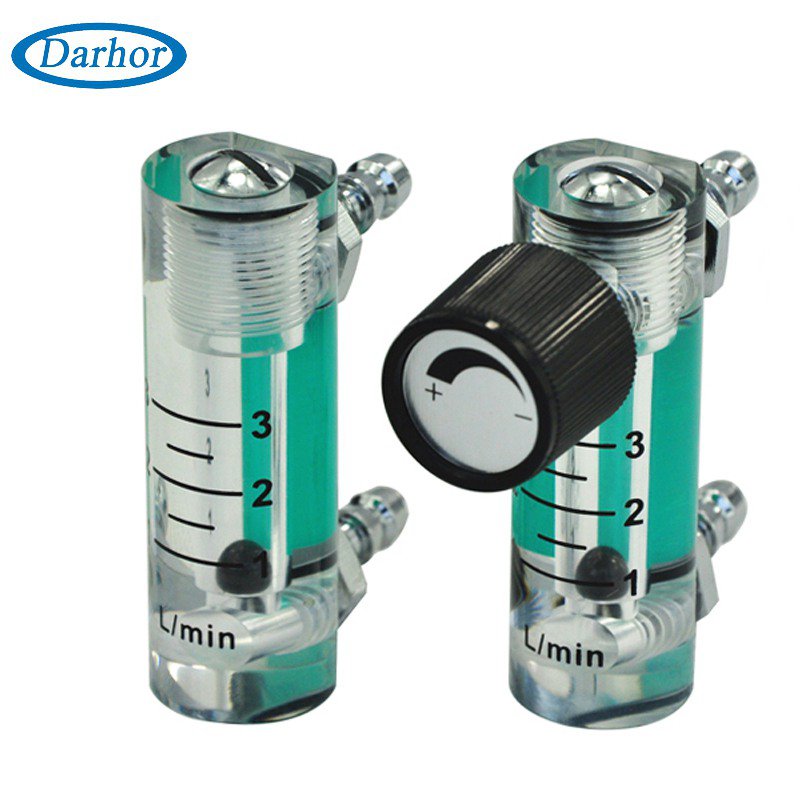

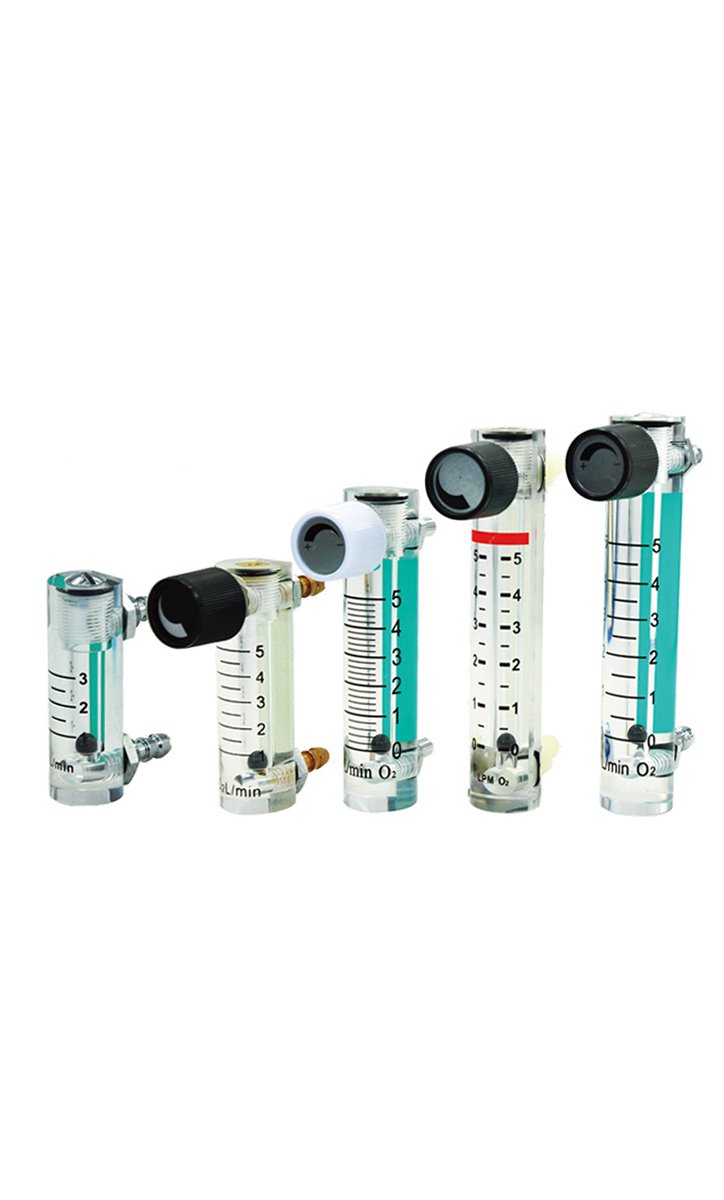

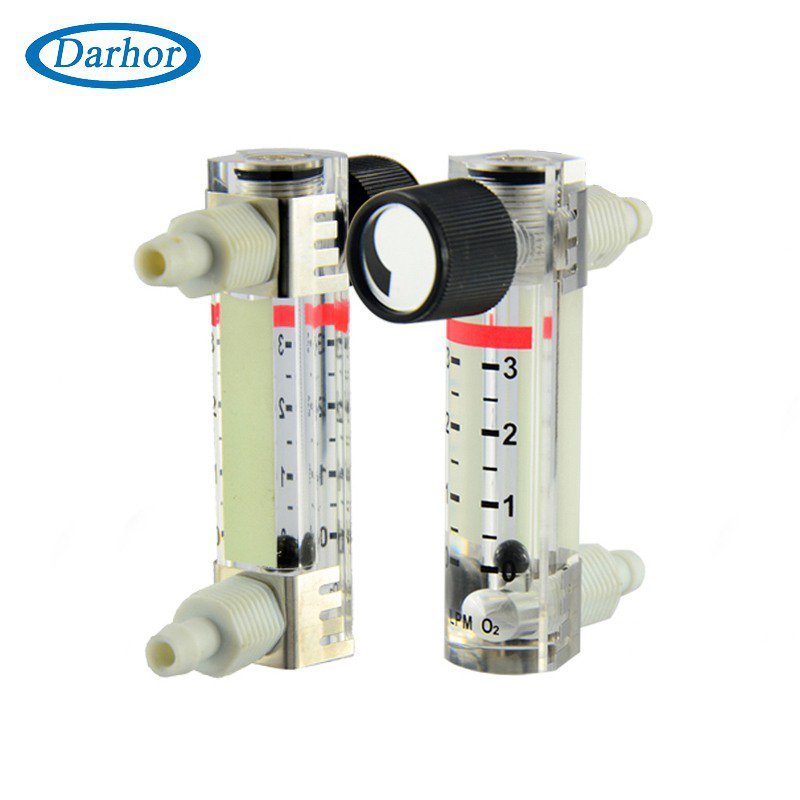

DFG-6TO2 high precision oxygen bar flow meter

Model

  • Medium:Oxygen
  • Material: Acrylic
  • Accuracy: 5%
  • Installation: Vertical Panel Mounting

Description

DFG-6TO2-high-precision-oxygen-bar-flow-meter

DFG-6TO2 flow meter, which is made of Acrylic, is used to measure the single-phasenon-pulsating flux of oxygen.

It is featured in beautiful look, light weight and long life span.

Basic parameters

Medium:Oxygen

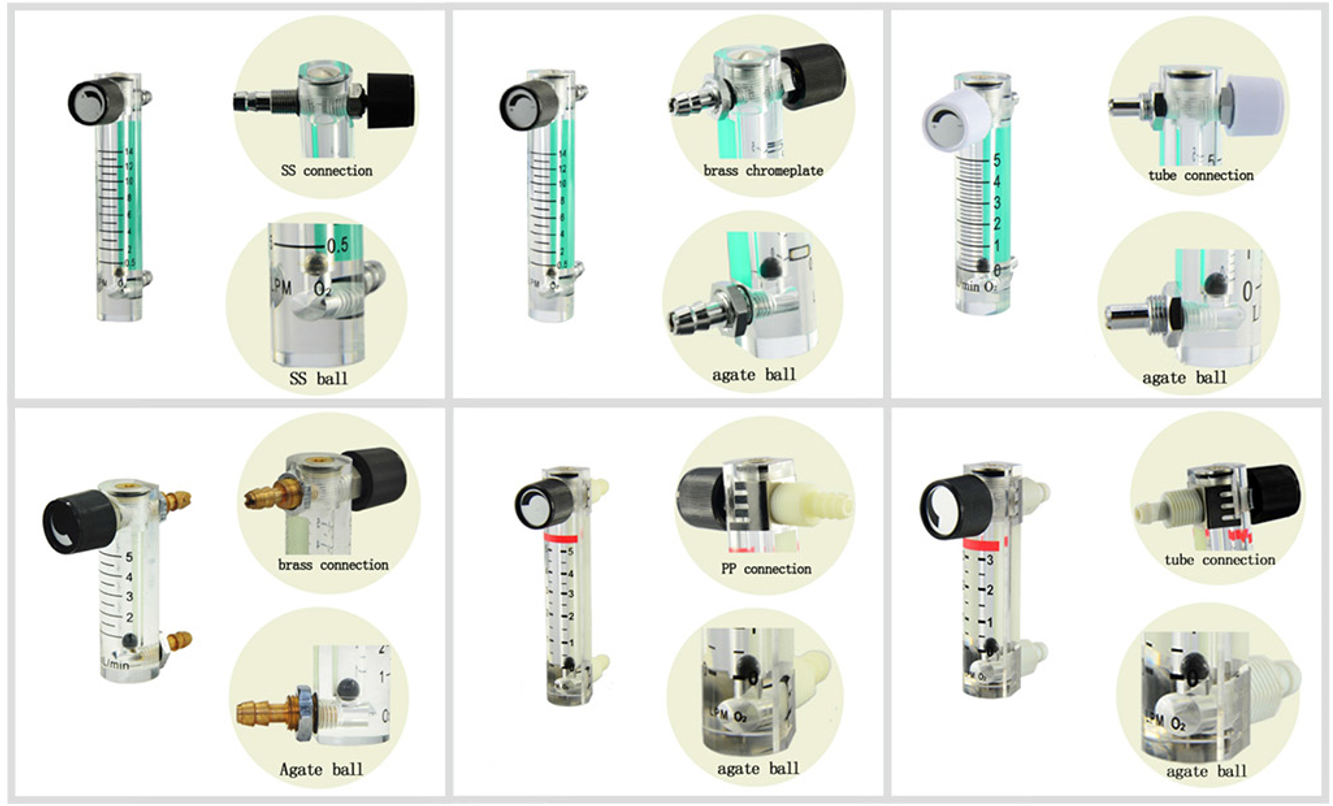

Wetted Materials:Acrylic and electroplated brass.SS

Ball Float: Stainless steel ;Agate; O-ring: NBR

Temperature Limit: 32-140°F(0-60°C).

Pressure Limit: 29 psi (2.0 bar)

Accuracy: +5% of full scale.

Connection: 1/4"1.D.Tubing

Mounting: Vertical.

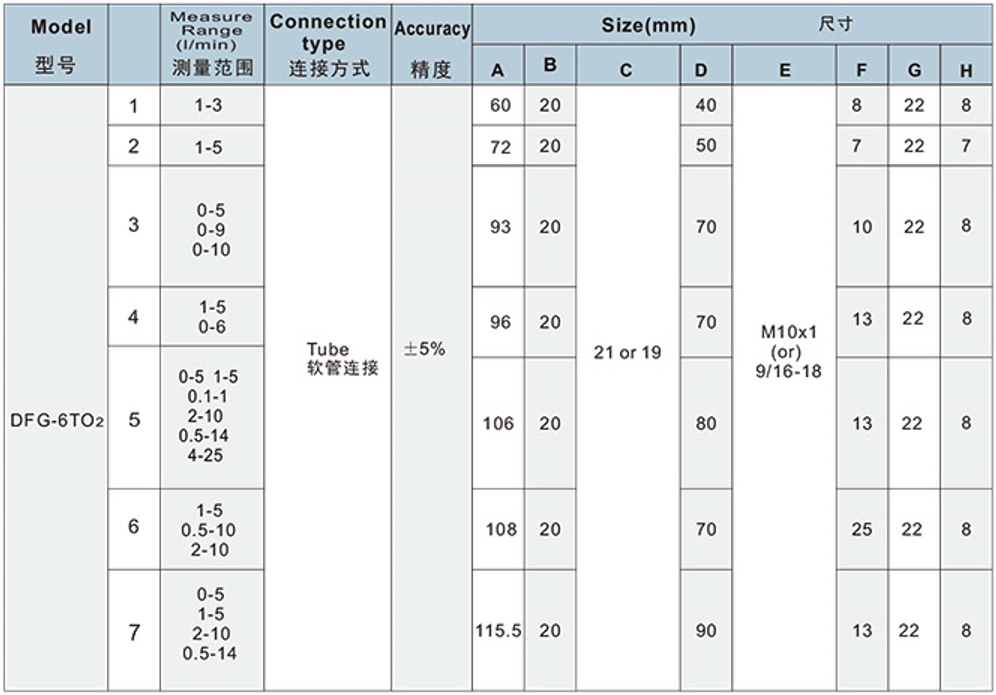

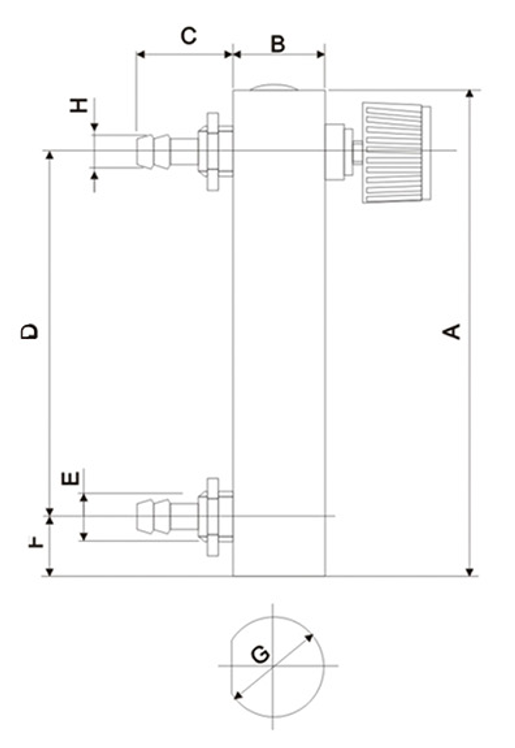

Overall Dimension


dfg-2.png          dfg-3.jpg
