DFA / DFA-T acrylic panel mount flow meter

Model

Medium: Gas, Liquid
Material: Acrylic
Accuracy: 4%
Installation: Vertical Panel Mounting

Description

DFA--DFA-T-High-precision-panel-type-plexiglass-flowmeter

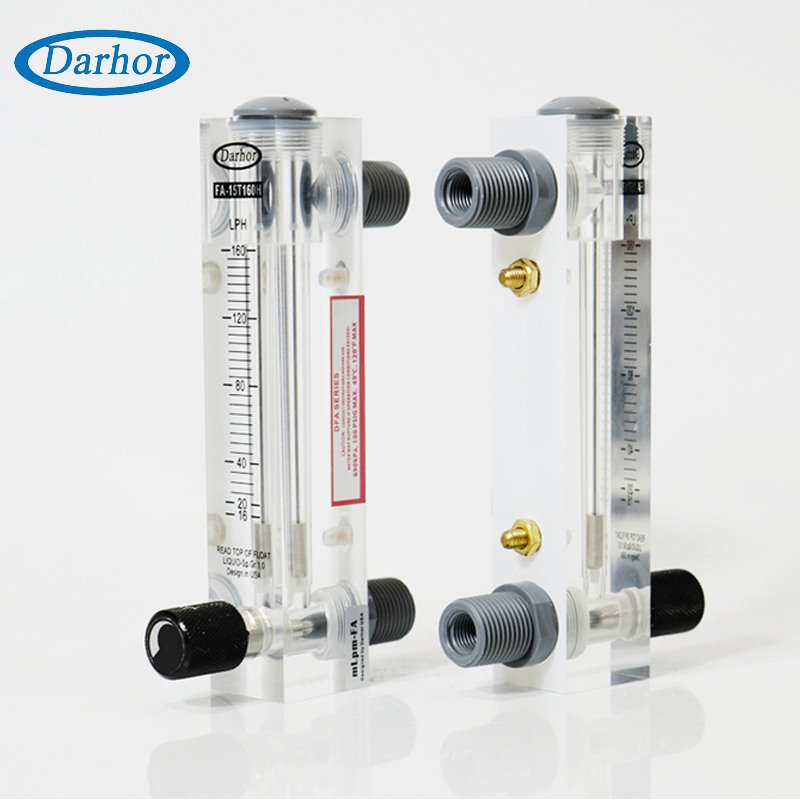

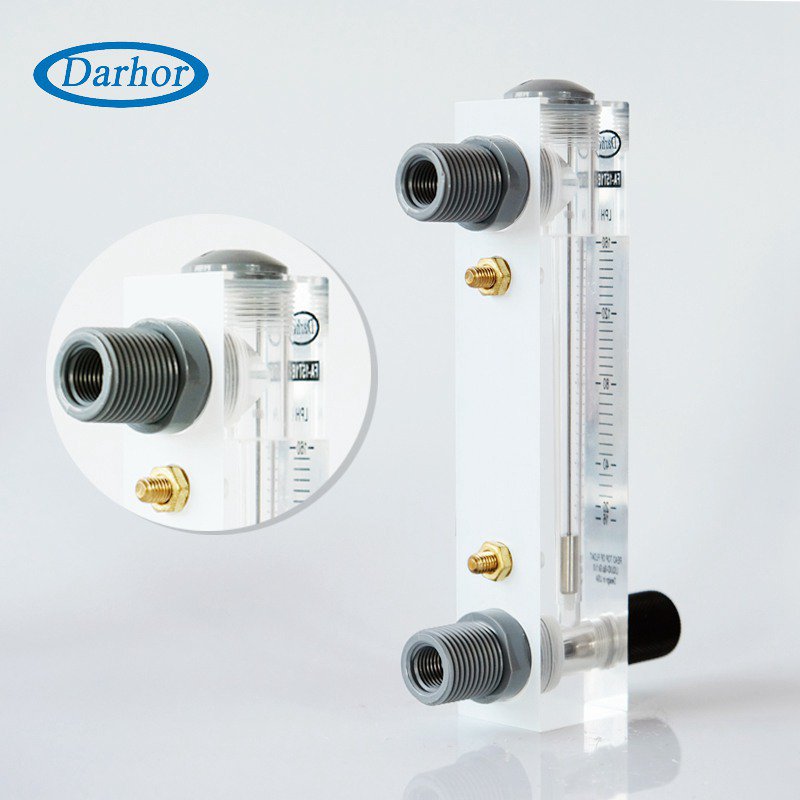

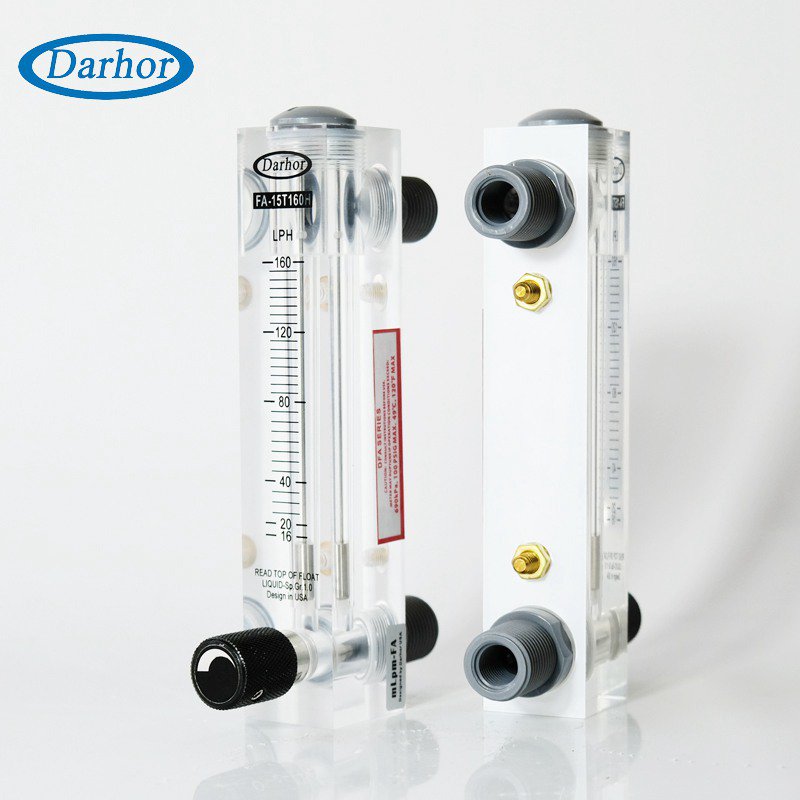

DFA series panel type plexiglass rotor flowmeter is a new type of flowmeter with plexiglass as the main body, which is used to measure the flow of gas and liquid. Its characteristics are beautiful appearance, light weight, high definition, not easy to break, and long service life.

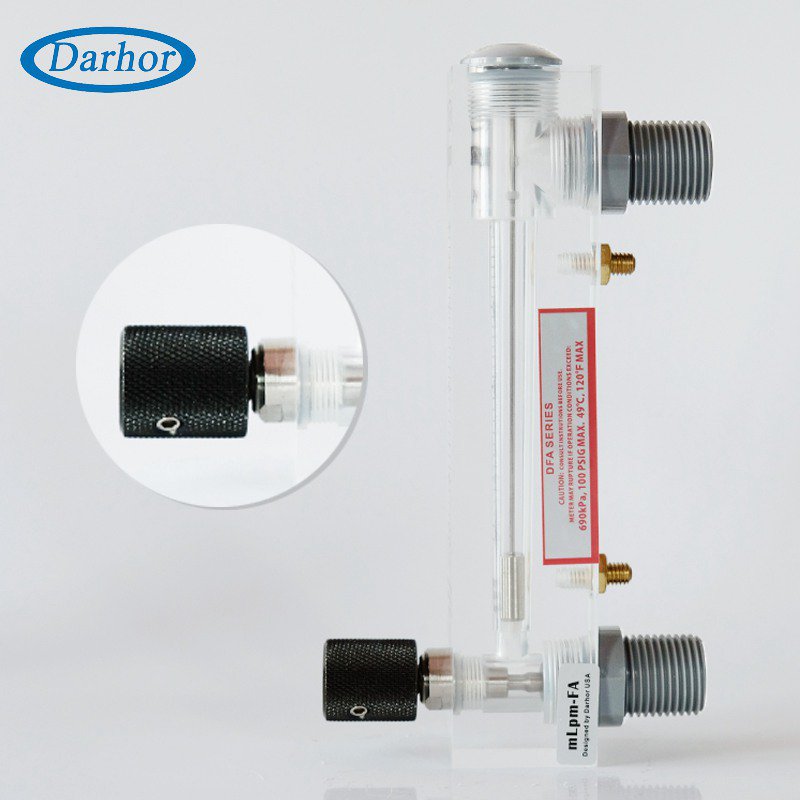

DFA-T is clearviewing type with SS valve toadjust the flowrate in a large measuring range.

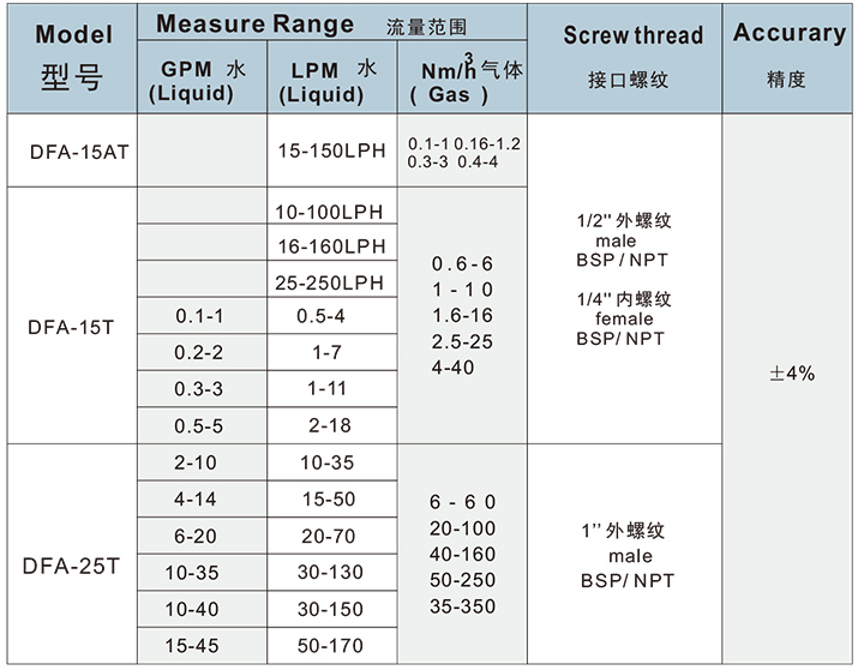

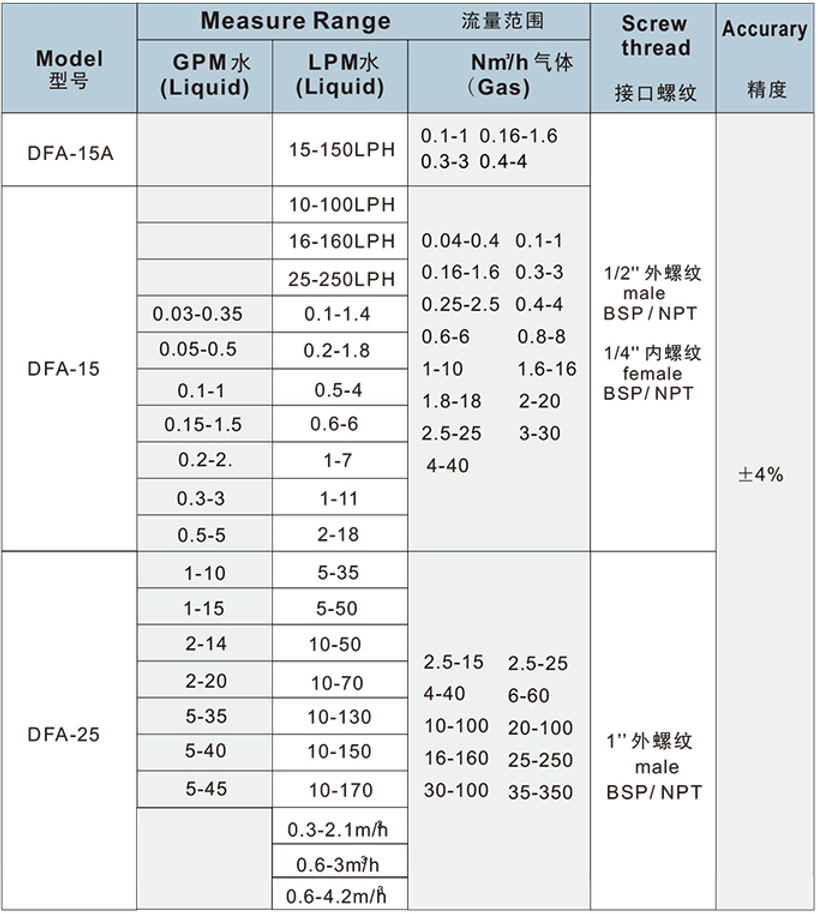

Basic parameters

Medium: Gas, Liquid

Material: Acrylic

Accuracy: 4%

Installation: Vertical Panel Mountin

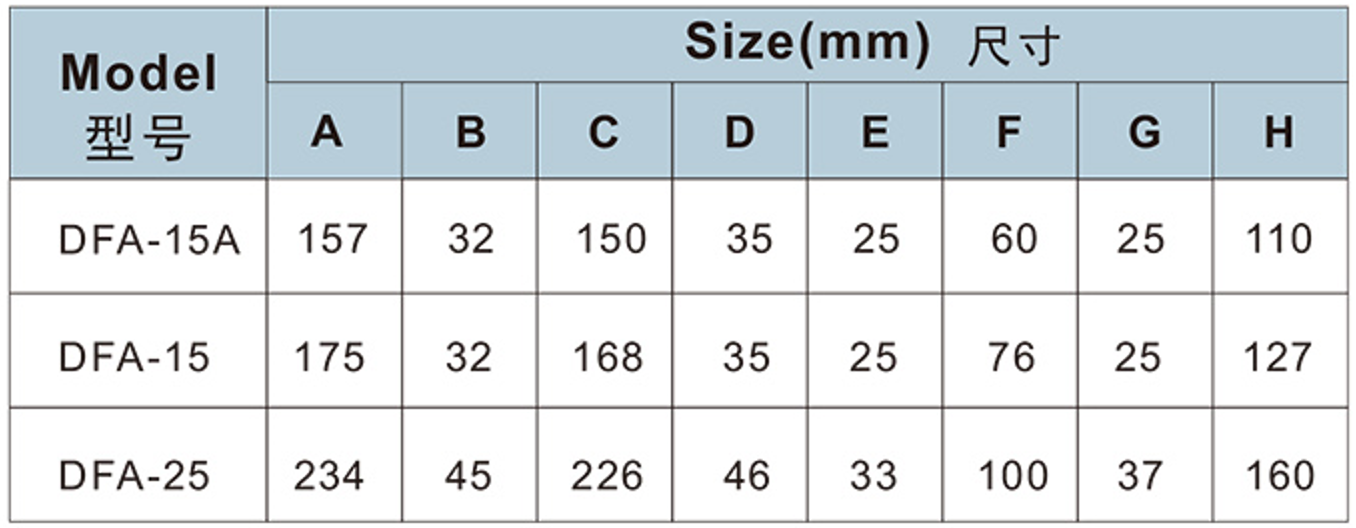

Overall Dimension
