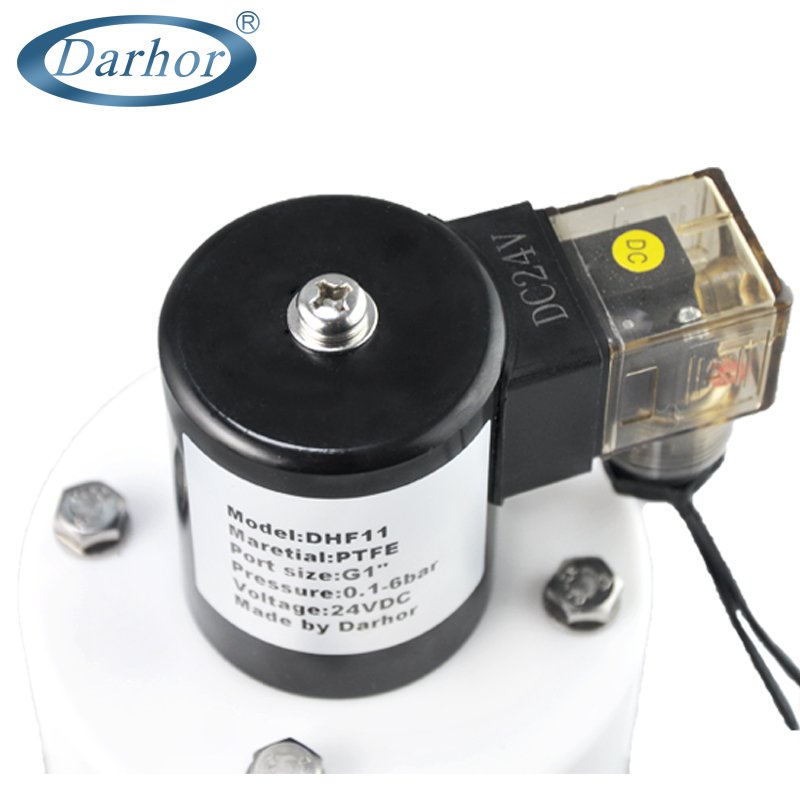

DHF11 2 way anti-corrosive PTFE solenoid valve

Model

  • Temperature: ﹣5 ℃ ~ 130 ℃
  • Working pressure: 0.1 ~ 6bar
  • Body material: PTFE
  • Port size: 1/8 ~ 2"

Description

DHF11 2 way anti-corrosive PTFE solenoid valve

Basic parameters

Medium:water.liquid.air.steam

Medium temperature:-5~120C

Working pressure: 0-16 bar

Working type: directly acting(NC)

Valve body material:brass,SS316

Sealing material:NBR

Interface:G thread,NPT thread

Working Voltage:AC220V230V1240V/110V124V50HZ/60HZDC24V112VIP65 F degree


Options :

Sealing material:VITON(-10~120℃)EPDM(-10~120℃)

LP series low power energy saving coil(AC220V 3VA DC24V 3W)LP Nass coil

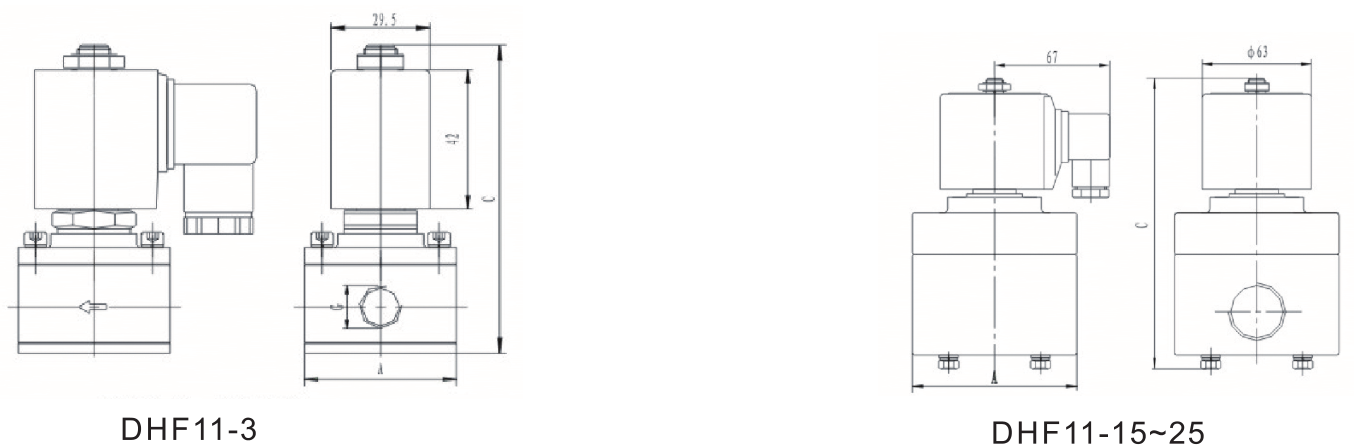

Drawing

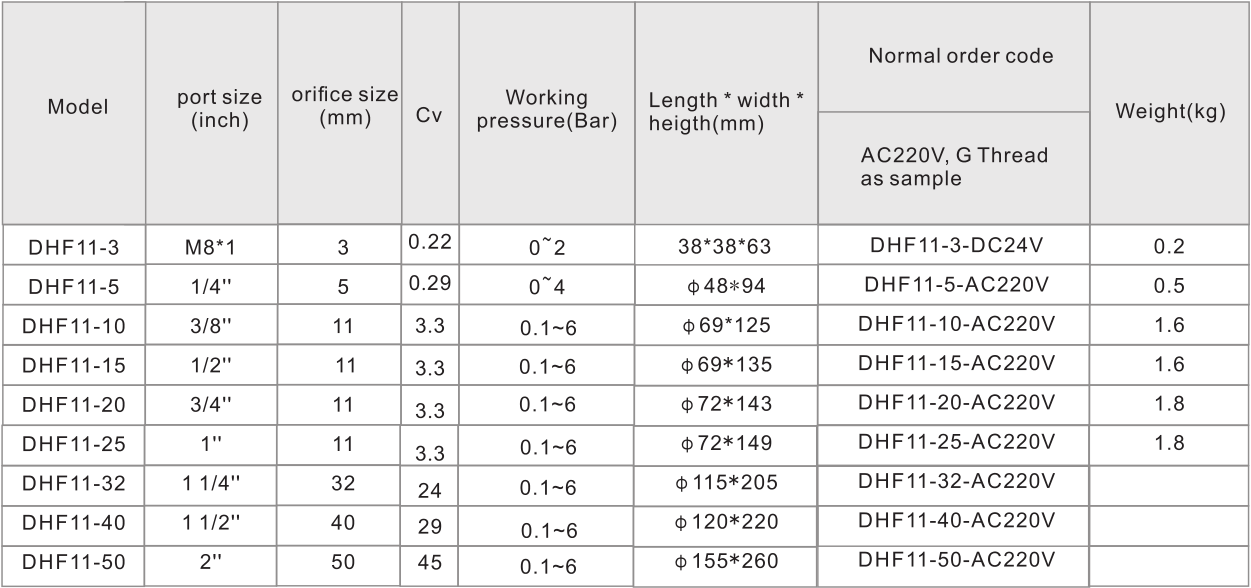

Specification table


Workshop show
