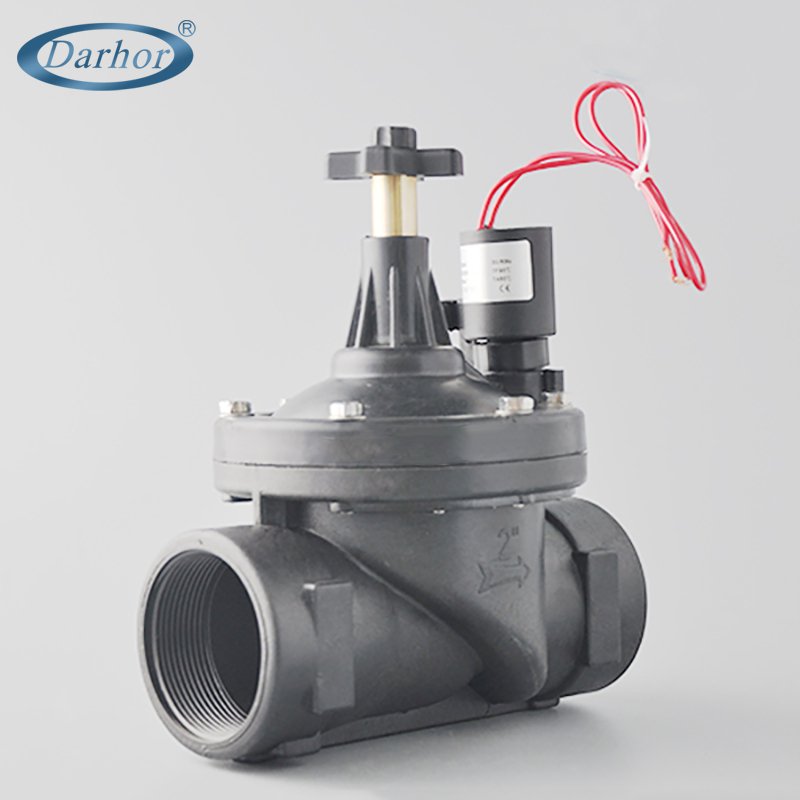

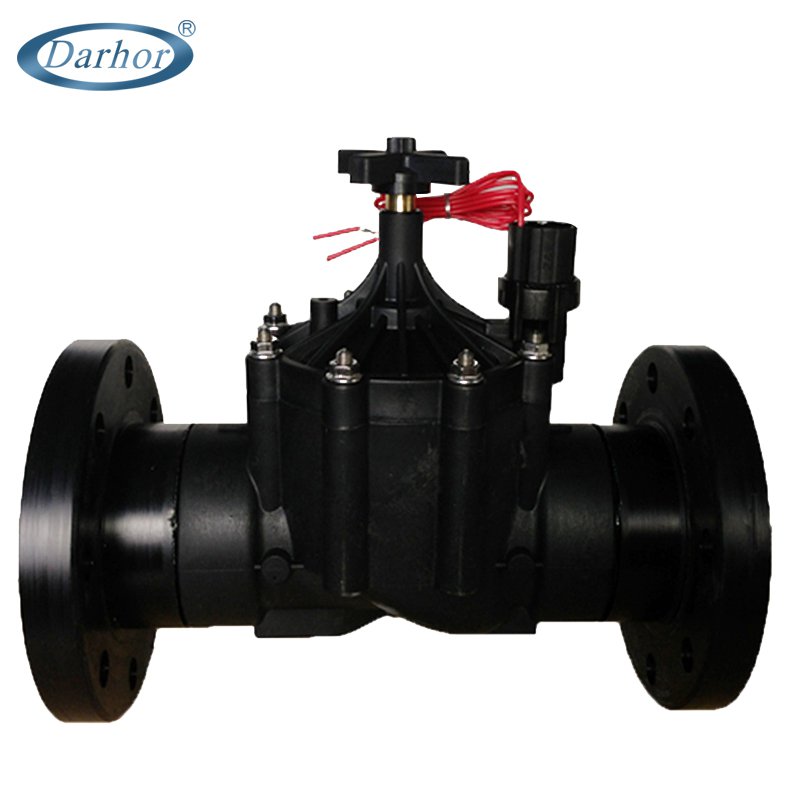

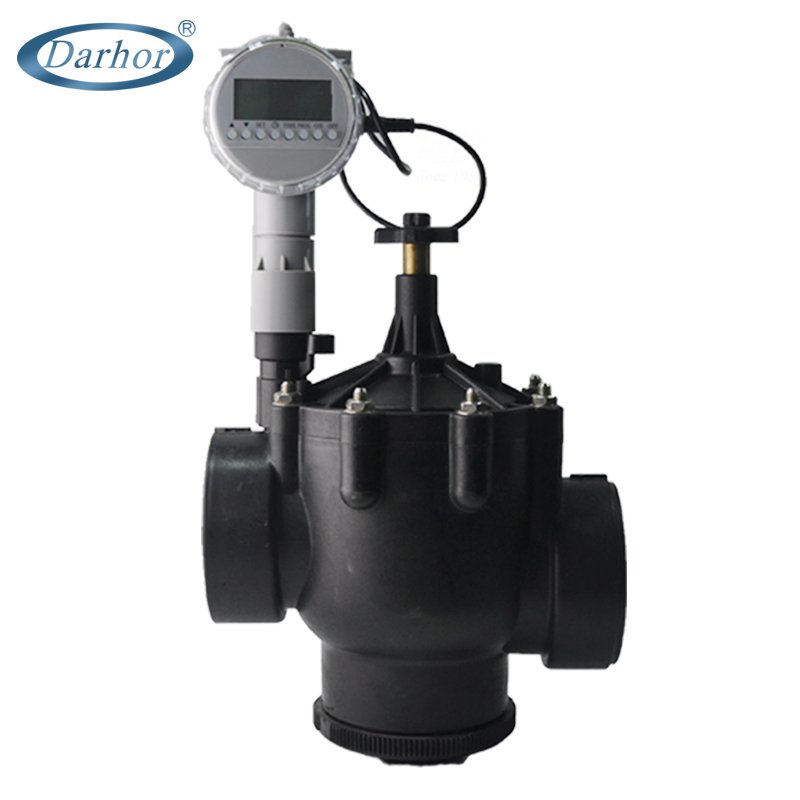

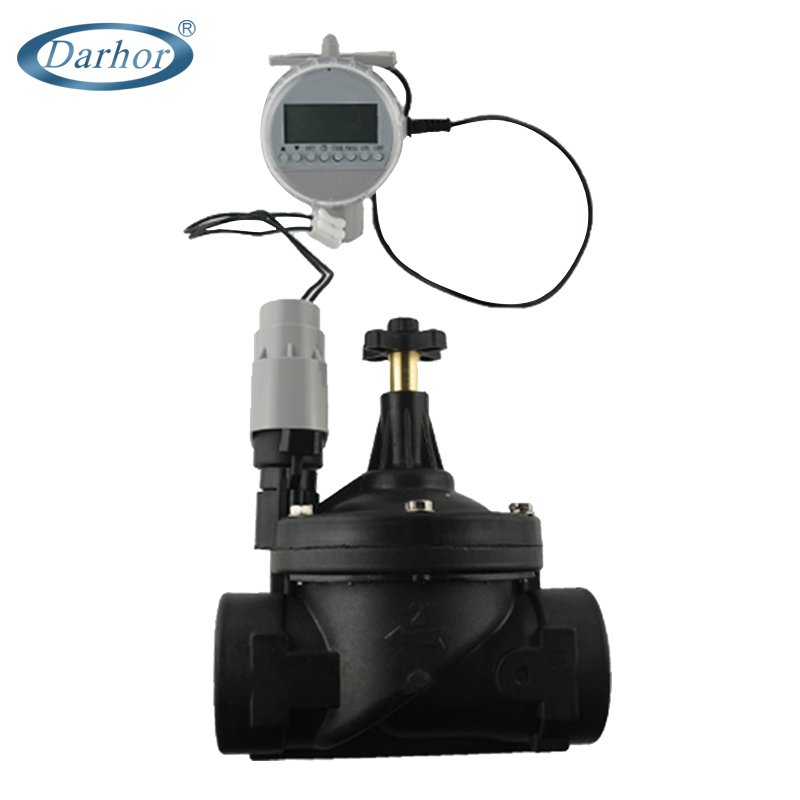

DHA11 2 way pilot operated irrigation PA solenoid valve

Model

DHA11 2 way pilot operated irrigation PA solenoid valve

Basic parameters

Widely used in agricultural automatic irrigation, garden greening automatic irrigation, drip irrigation and other automated control system.

Medium: water.liquid .air

Medium temperature: -5~80°C

Working pressure :0. 3~ 8bar

Working type: Pilot operated (NC)

Valve body material:PA66

Sealing material: NBR

Interface: G thread, NPT thread

Working Voltage : AC220V/230V/240V/110V 50HZ/60HZ DC24V/12V IP65 F degree

Power:AC 25VA,DC 13W.

Options:

LP series low power energy saving coil,NC type:AC220V 3VA,24VDC 3W

NO type:AC220V 6V,24VDC 4W. .

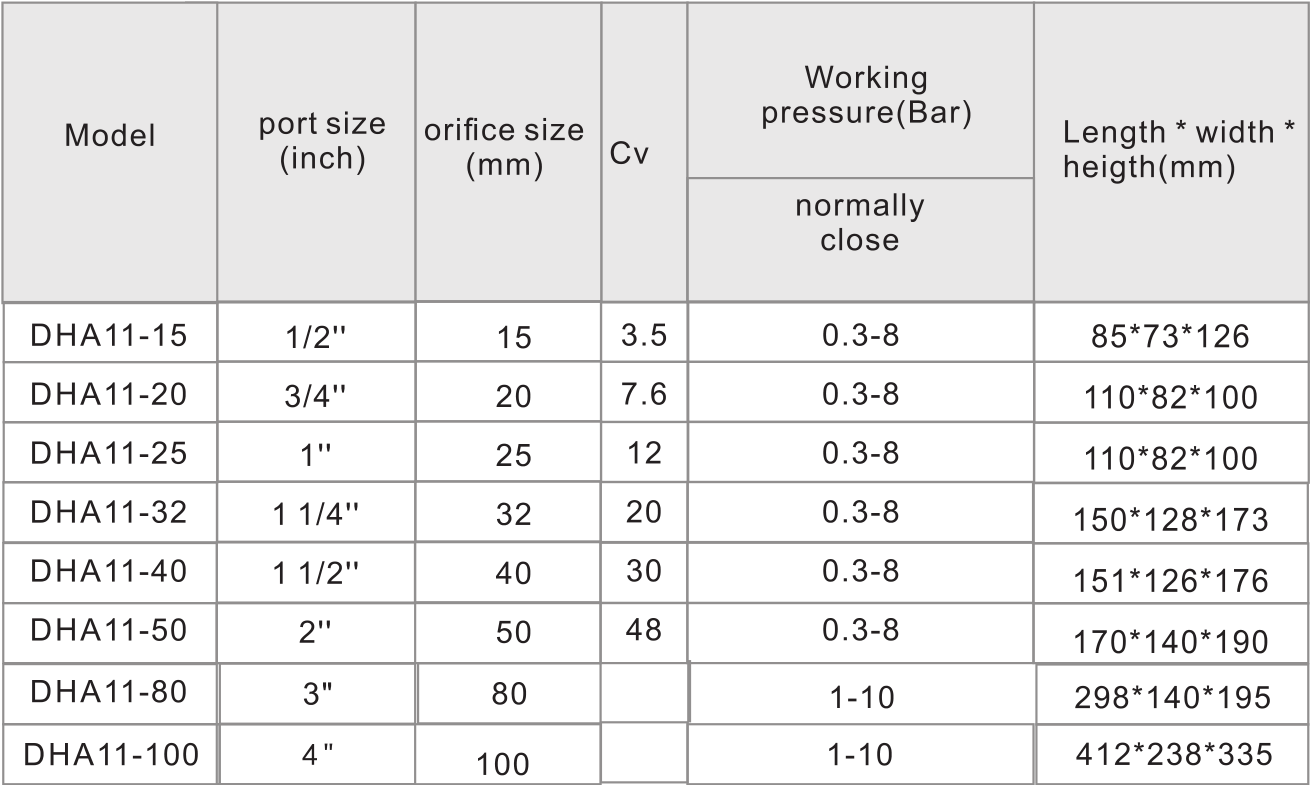

Specification table
