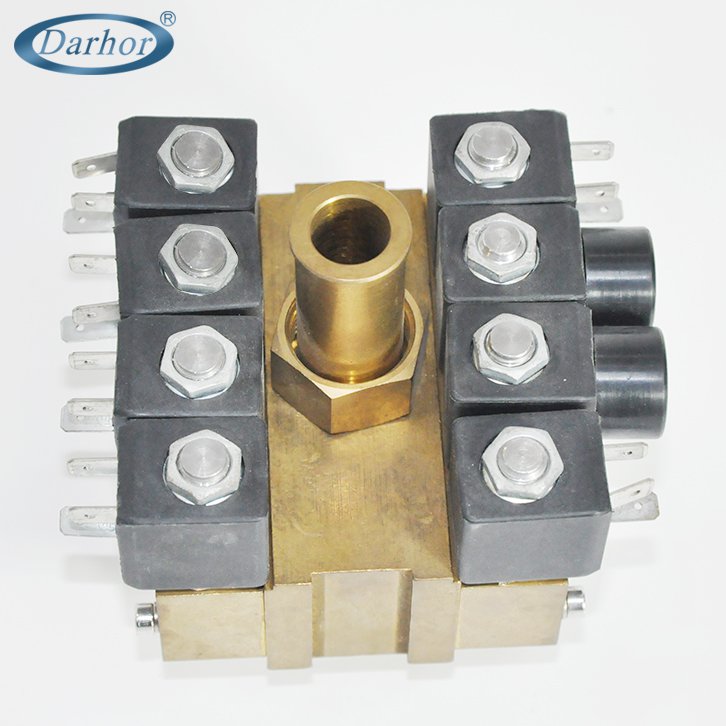

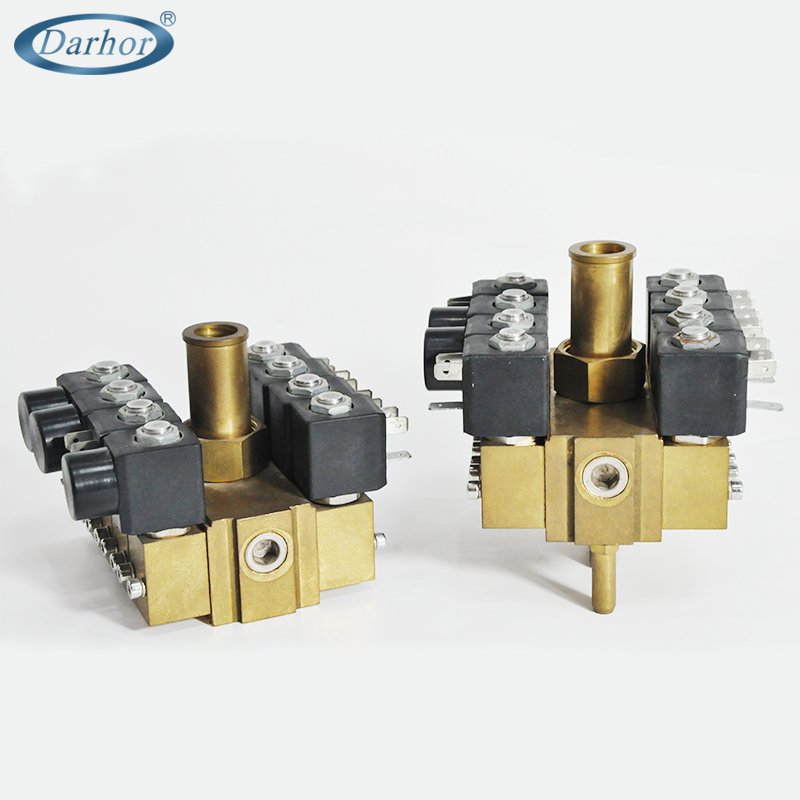

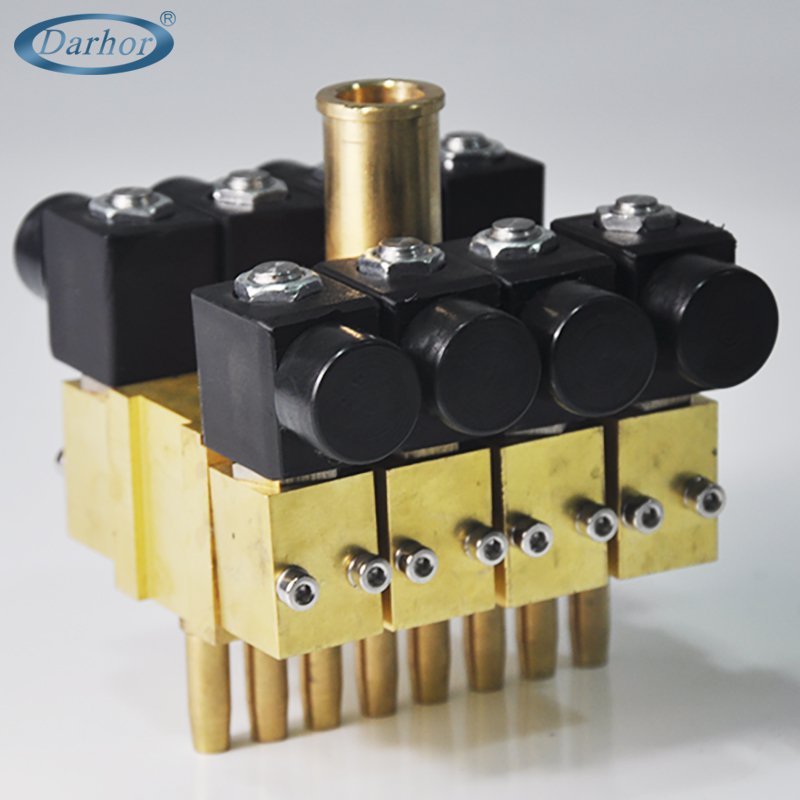

DHDF31 digital water curtain combination brass solenoid valve
Model
- Temperature: ﹣5 ℃ ~ 80 ℃
- Working pressure: 0 ~ 1bar
- Body material: brass
Description
DHDF31 digital water curtain combination brass solenoid valve
Basic parameters
Medium: water
Medium temperature : 5~80°C
Working pressure : 0-1bar
Working type: directly acting
Valve body material:Brass
Sealing material: NBR
Interface: G thread, NPT tread
Orifice: 4mm
Port Size: Inlet 1/4" ,outlet 1/8”
One inlet and 8 outlets,fast open and close
Working Voltage:Working Voltage(DC36V/24V/12V IP68 F degree

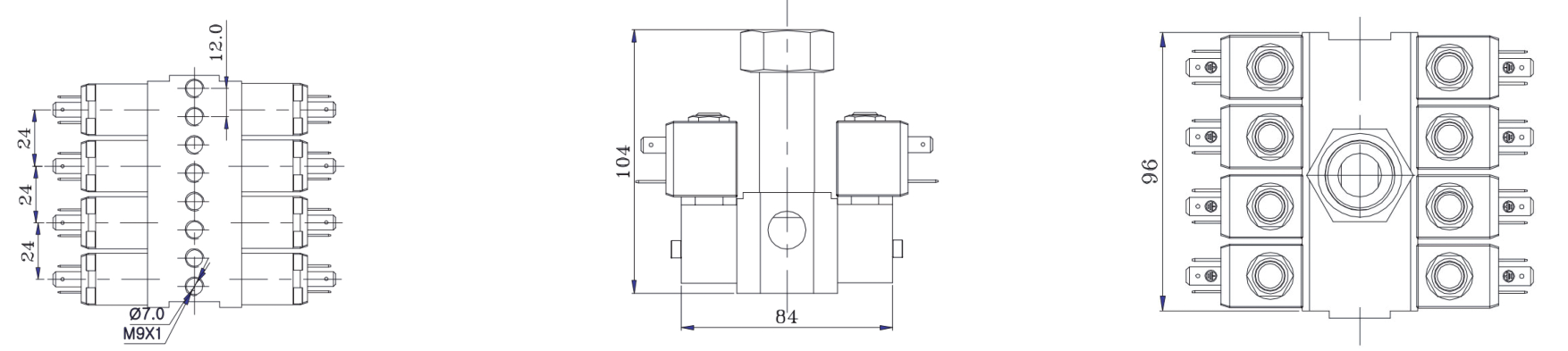

Drawing

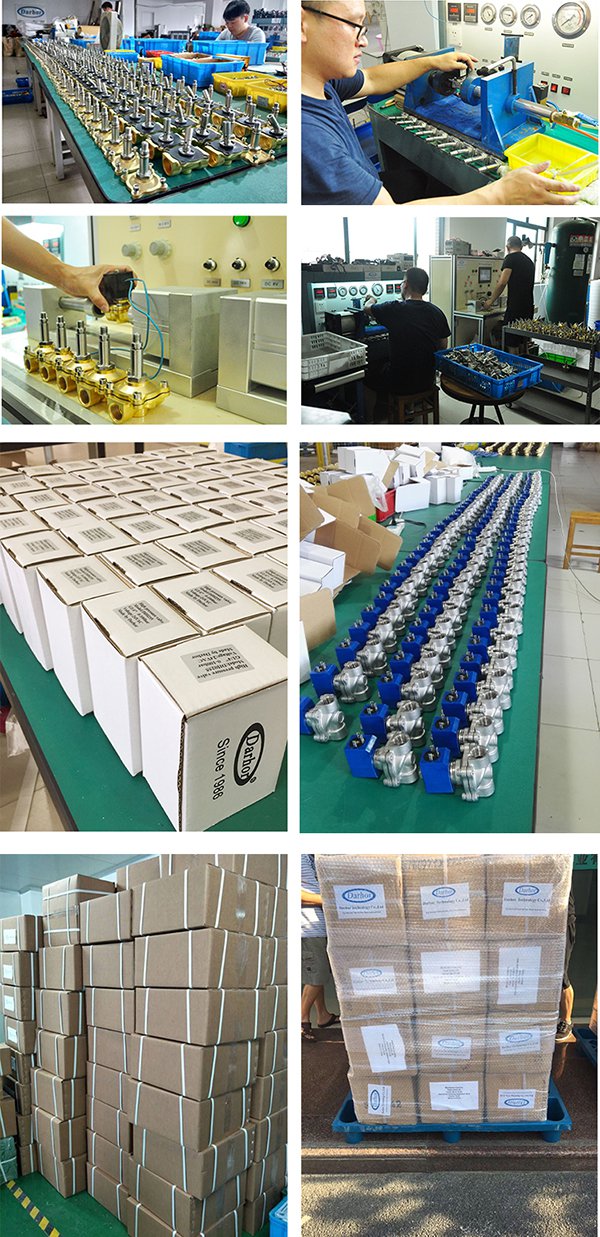

Workshop show
