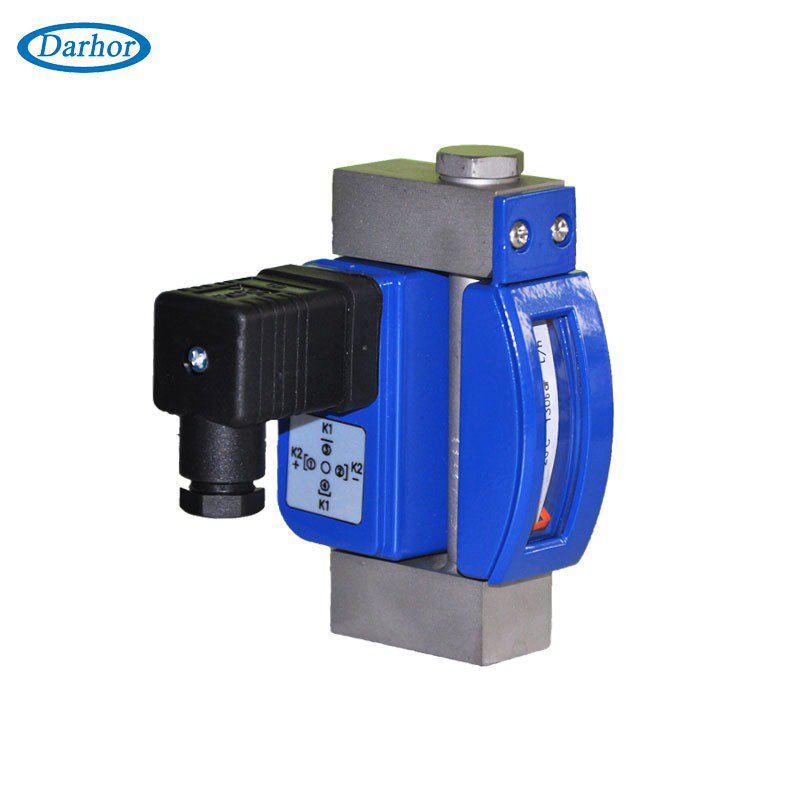

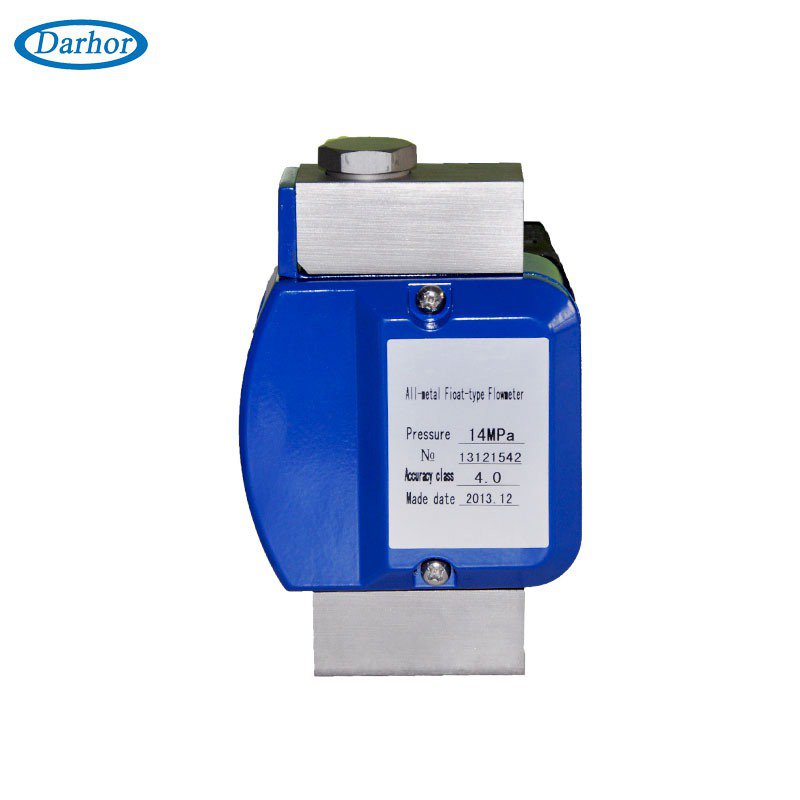

DK32 metal tube flow meter

Model

  • Medium: Gas, Liquid,Steam
  • Material:304,316
  • Accuracy: 4%

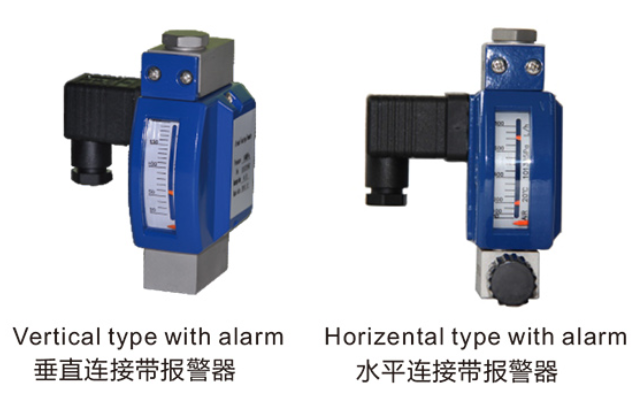

  • Installation:can be horizontal or vertical

Description

DK32 metal tube flow meter

The flowmeter operates on the float measuring principle.The measuring section consists of a metal cone in which a float can move freely up and down. The medium flows through the flowmeter from bottom to top. The variable area flowmeters are suitable for measuring gases,vapors and liquids with specialityof solid, steady and reliable.The flowmeters are available as inlet or outlet pressure regulator.lt also select install 1 or 2 limit switches.

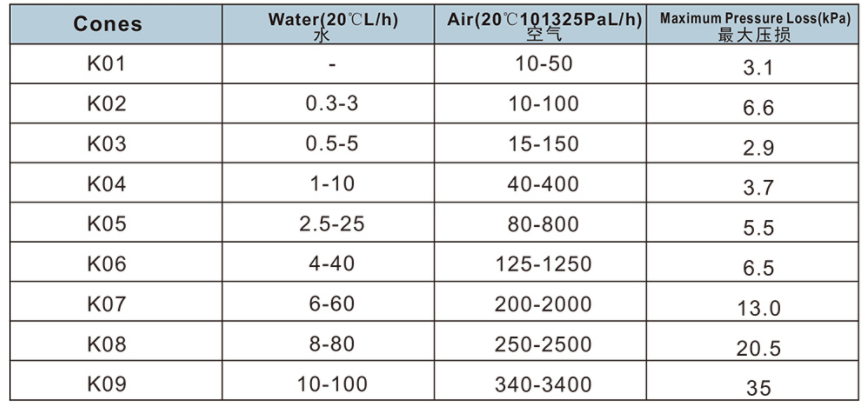

Basic parameters

Medium: Gas, Liquid,Steam

Accuracy: 4%

Maximum Pressure:2.5MPa or 6.4MPa

Medium Temperature:-80~+150℃

Ambient Temperature:-25~+65℃

Connection Type: 1/4"NPTF

Limit Switch:1 or 2

Protection category:IP67

Overall Dimension
