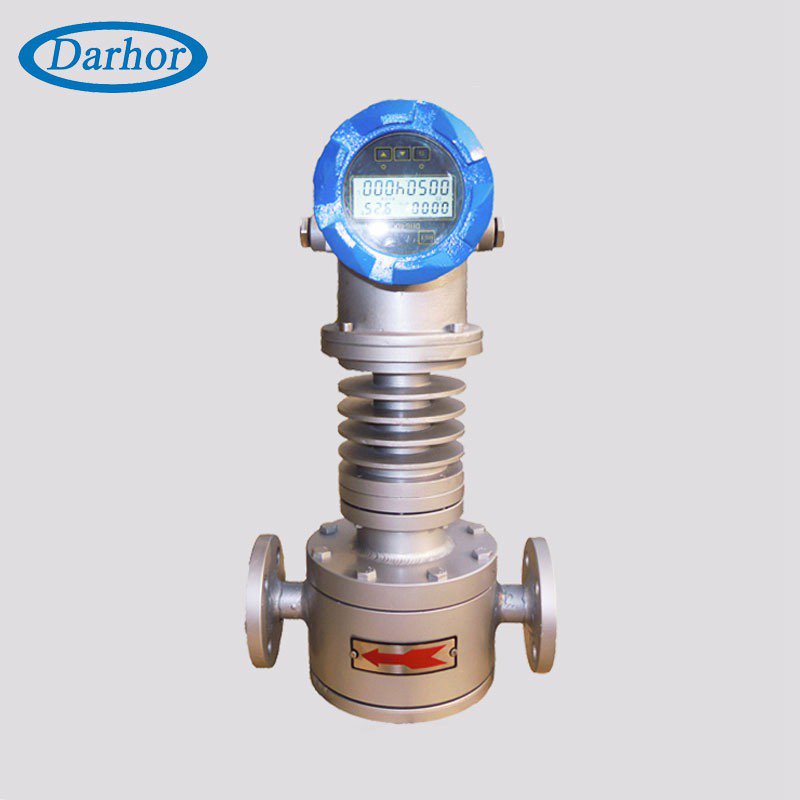

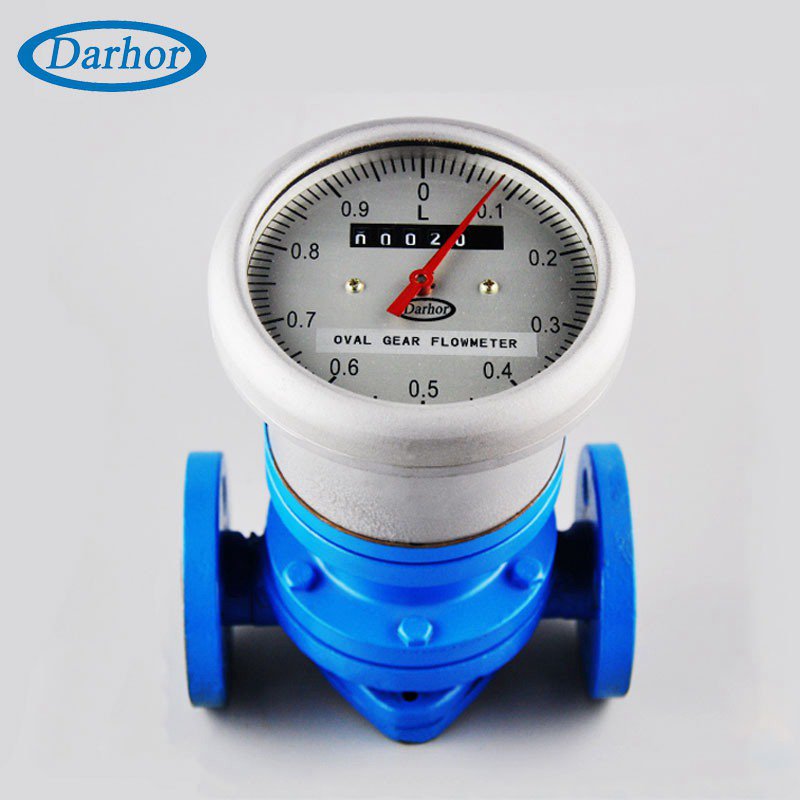

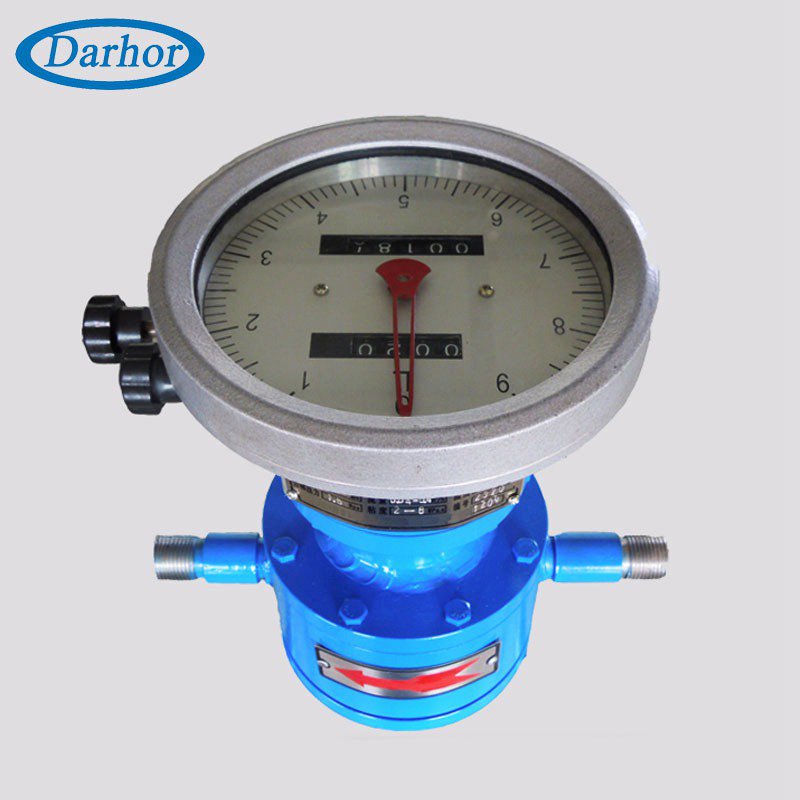

DH900 oval gear flow meter
The oval gear flow meter is a kind of Positive Displacement Flow Meter. As the fluid being measured passes thru the meter, it rotates 2 oval gears in measuring cavity to displace a precise volume of fluid.
Asensor detects the gear rotation to determine displaced volume and flow rate.

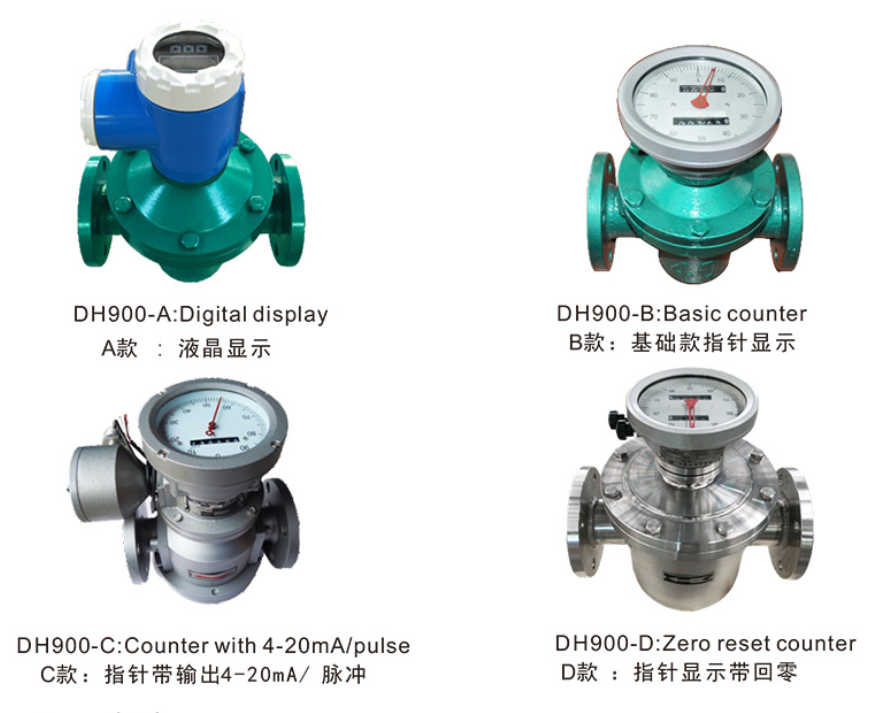

Model
- Medium: Can Measure Asphalt, Honey and other High Viscosity Liquids
- Accuracy: 0.5%, 0.2%
- Standard viscosity: 2000cP
- Material: Cast iron, Cast steel, Stainless Steel
Description
DH900 oval gear flow meter
The oval gear flow meter is a kind of Positive Displacement Flow Meter. As the fluid being measured passes thru the meter, it rotates 2 oval gears in measuring cavity to displace a precise volume of fluid.A sensor detects the gear rotation to determine displaced volume and flow rate.

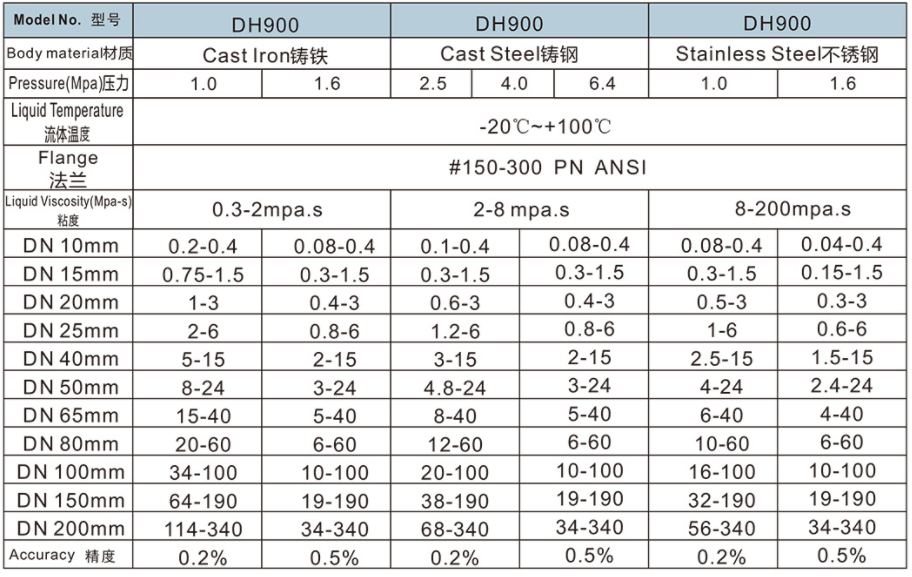

Basic parameters
Higher Accuracy: 0.5% or 0.2%
Standard Viscosity up to 2000cP(Centipoises=mPa.s);2000cP
Size of wide flow ranges:0.04-340M3/h(18-37,396GPM)
Wide range of working environment:-20~+180℃
Accuracy: 0.5%, 0.2%
Material: Cast iron, Cast steel, Stainless Steel
Overall Dimension
