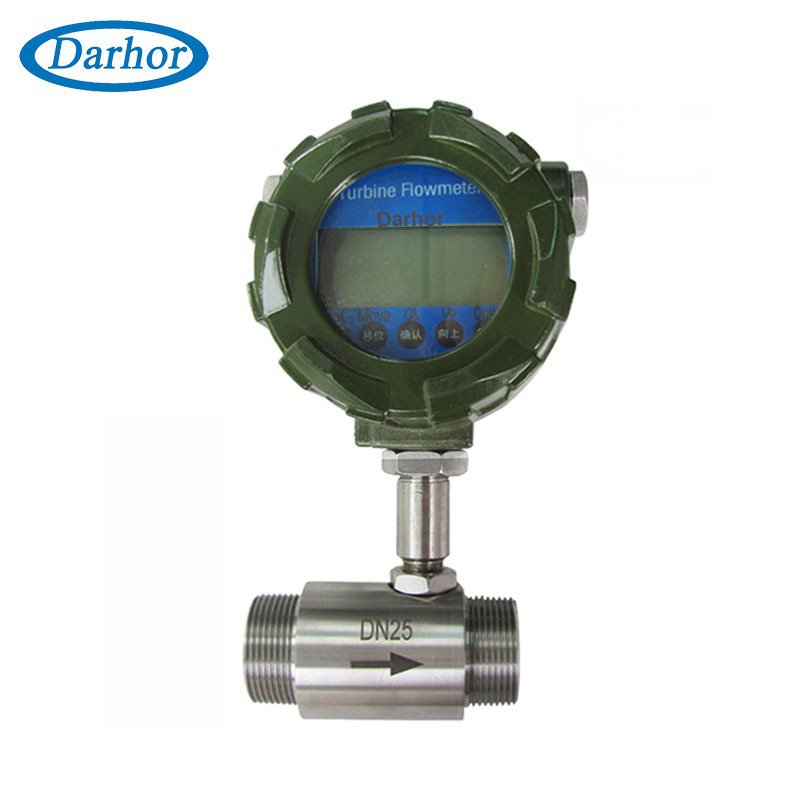

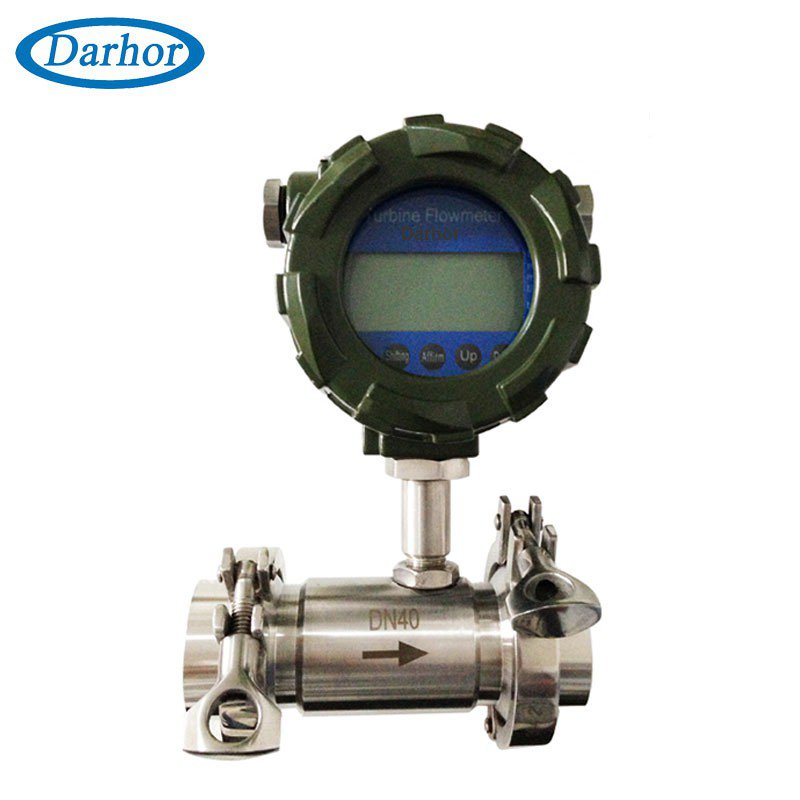

DH500 turbine flow meter

Model

  • Medium: Liquid
  • Material: Acrylic
  • Accuracy: 1%
  • Output: 4-20mA, pulse, RS485

Description

DH500 turbine flow meter

Turbine flow meter is used for volumetric total fiow andlor fow rate measurement and has arelatively simple working principle. As fluid flows through the turbine meter, it impinges uponturbine blades that are free to rolate about an axis along the center line of the turbine housingThe angular (rotational) velocity of the furbine rotor is directly proportional to the fluid velocityflowing through the turbine. The resulting output is taken by an electrical pickoff(s) mounted onthe fiow meter body.

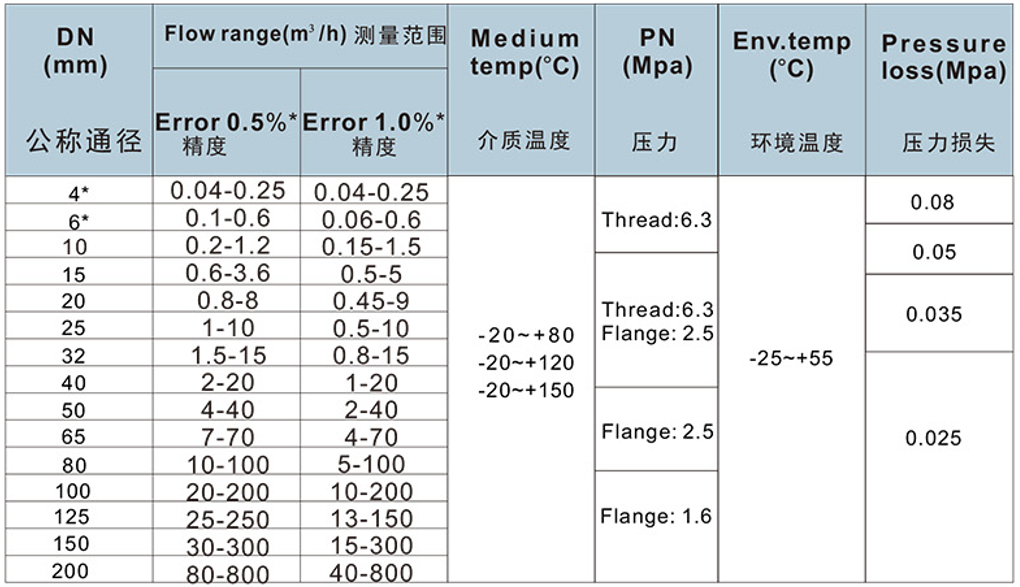

Basic parameters

Medium: Liquid

Material: Acrylic

Accuracy: 1%

Output: 4-20mA, pulse, RS485

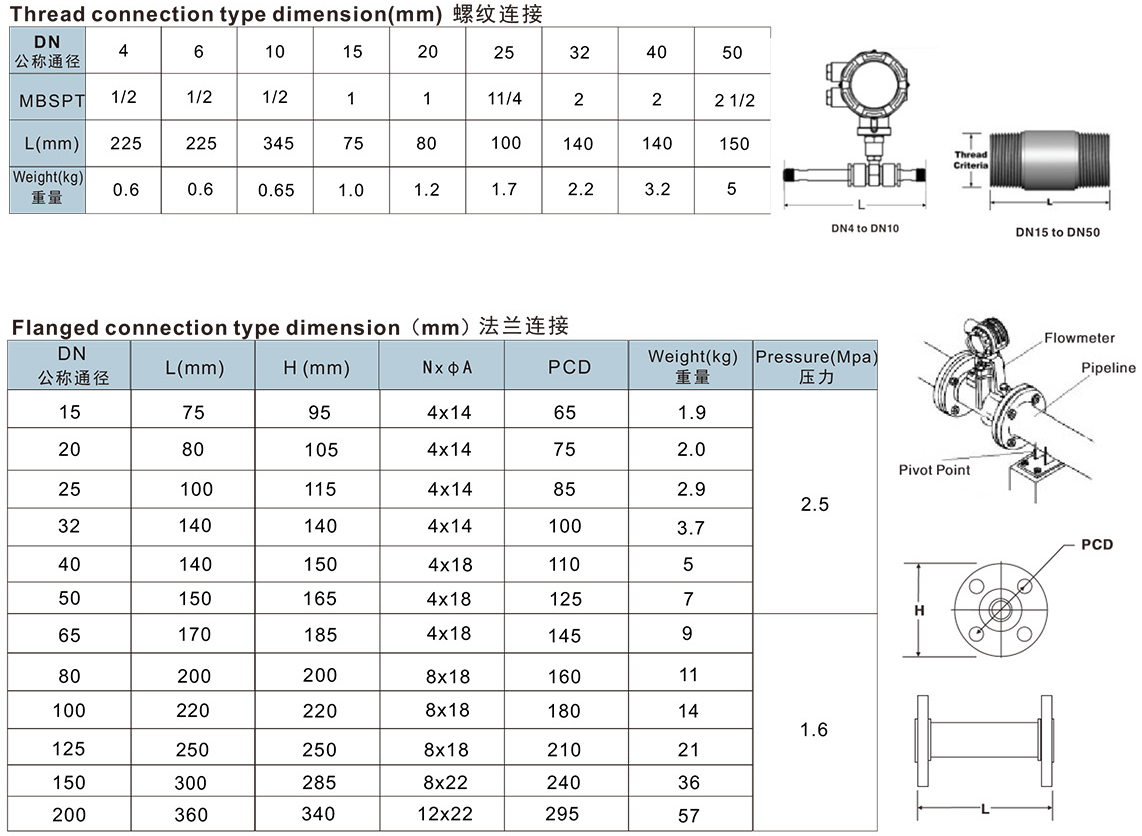

Overall Dimension
